Victorian 2 Column Cast Iron Radiator 615mm

Victorian 2 Column Cast Iron Radiator 615mm

Victorian 2 Column Cast Iron Radiator

The Victorian 2 Column from Trads stands 615mm tall, which combined with its 2 column design, means it has a significant heat output matched with a slim profile, making it perfect for use in hallways and rooms where space may be a premium such as cloakrooms.

Available in 1 heights: 615mm

From £82.50 (£27.50 per section)

United Kingdom Flag Hand-built & finished in the UK from 10 working days
  • Over 10,000 Colour Options
  • Narrow Profile
  • Lifetime Guarantee
  • Specialist Finishes Available
  • FREE UK Mainland Delivery*

*On orders over £300.00

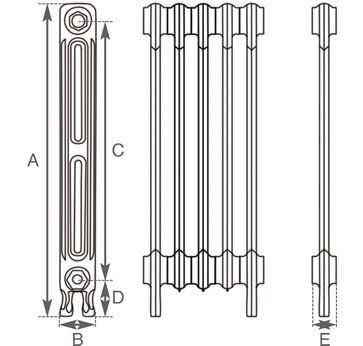

Victorian 2 Column Line Drawing

All measurements are for guidance only. Please allow for +/- 3% tolerance. Please do not install pipework until your radiators are onsite.

* per cast iron radiator section.

615 70 500 80 53 153.000000 45.000000 78.000000 23.000000 2.500000kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • Victorian 2 Column 615Mm Hand Burnished End Hand Burnished
  • Victorian 2 Column 615Mm Hand Burnished End Satin Polished

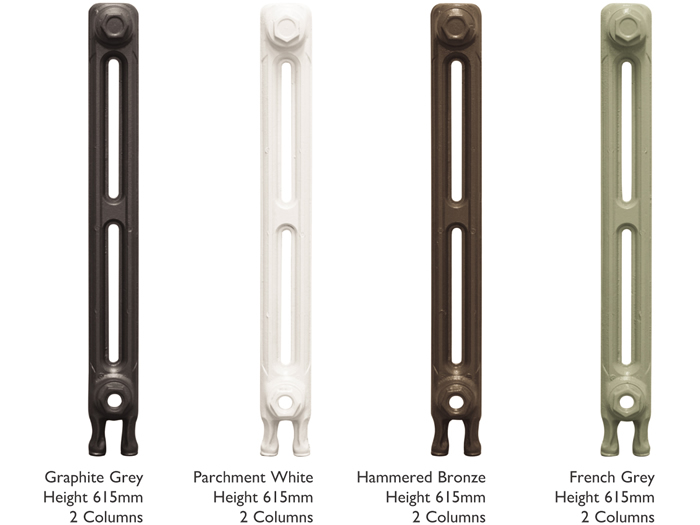

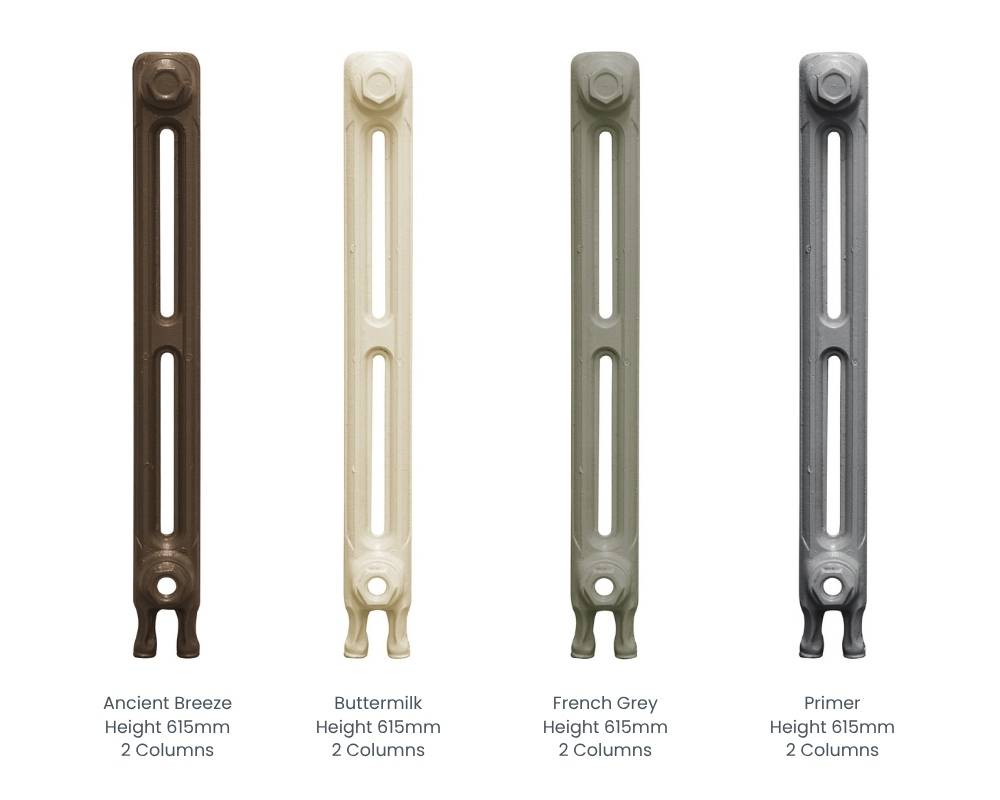

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Victorian 2 Column 615Mm Ancient Breeze End Ancient Breeze
  • Victorian 2 Column 615Mm Buttermilk End Buttermilk
  • Victorian 2 Column 615Mm Foundry Grey End Foundry Grey
  • Victorian 2 Column 615Mm French Grey End French Grey
  • Victorian 2 Column 615Mm Graphite Grey End Graphite Grey
  • Victorian 2 Column 615Mm Hammered Bronze End Hammered Bronze
  • Victorian 2 Column 615Mm Hammered Gold End Hammered Gold
  • Victorian 2 Column 615Mm Parchment White End Parchment White
  • Victorian 2 Column 615Mm Primer End Primer
  • Victorian 2 Column 615Mm Satin Black End Satin Black
  • Victorian 2 Column 615Mm Vellum End Vellum
  • Victorian 2 Column 615Mm Willow Green End Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

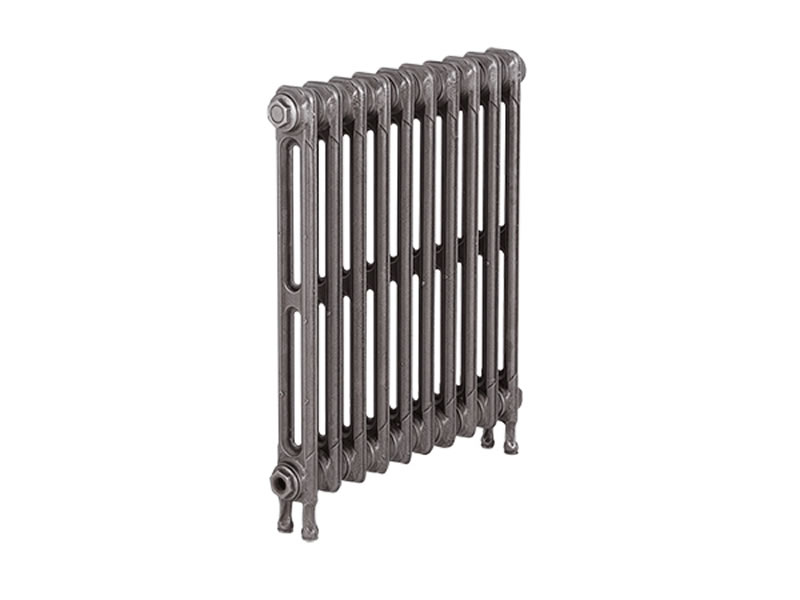

Victorian 2 Column Cast Iron Radiator 800 01
Model No. Height Sections Width
/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 30°)
Watts
(ΔT 30°)
BTU's
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(in Primer)
Buy Radiator
LD183/184 615mm 3 193mm 70mm 234.000000 69.000000 459.000000 582.000000 171.000000 7.5kg 8.4kg £82.50
LD183/184 615mm 4 246mm 70mm 312.000000 92.000000 612.000000 776.000000 228.000000 10.0kg 11.2kg £110.00
LD183/184 615mm 5 299mm 70mm 390.000000 115.000000 765.000000 970.000000 285.000000 12.5kg 14.0kg £137.50
LD183/184 615mm 6 352mm 70mm 468.000000 138.000000 918.000000 1164.000000 342.000000 15.0kg 16.8kg £165.00
LD183/184 615mm 7 405mm 70mm 546.000000 161.000000 1071.000000 1358.000000 399.000000 17.5kg 19.6kg £192.50
LD183/184 615mm 8 458mm 70mm 624.000000 184.000000 1224.000000 1552.000000 456.000000 20.0kg 22.4kg £220.00
LD183/184 615mm 9 511mm 70mm 702.000000 207.000000 1377.000000 1746.000000 513.000000 22.5kg 25.2kg £247.50
LD183/184 615mm 10 564mm 70mm 780.000000 230.000000 1530.000000 1940.000000 570.000000 25.0kg 28.0kg £275.00
LD183/184 615mm 11 617mm 70mm 858.000000 253.000000 1683.000000 2134.000000 627.000000 27.5kg 30.8kg £302.50
LD183/184 615mm 12 670mm 70mm 936.000000 276.000000 1836.000000 2328.000000 684.000000 30.0kg 33.6kg £330.00
LD183/184 615mm 13 723mm 70mm 1014.000000 299.000000 1989.000000 2522.000000 741.000000 32.5kg 36.4kg £357.50
LD183/184 615mm 14 776mm 70mm 1092.000000 322.000000 2142.000000 2716.000000 798.000000 35.0kg 39.2kg £385.00
LD183/184 615mm 15 829mm 70mm 1170.000000 345.000000 2295.000000 2910.000000 855.000000 37.5kg 42.0kg £412.50
LD183/184 615mm 16 882mm 70mm 1248.000000 368.000000 2448.000000 3104.000000 912.000000 40.0kg 44.8kg £440.00
LD183/184 615mm 17 935mm 70mm 1326.000000 391.000000 2601.000000 3298.000000 969.000000 42.5kg 47.6kg £467.50
LD183/184 615mm 18 988mm 70mm 1404.000000 414.000000 2754.000000 3492.000000 1026.000000 45.0kg 50.4kg £495.00
LD183/184 615mm 19 1041mm 70mm 1482.000000 437.000000 2907.000000 3686.000000 1083.000000 47.5kg 53.2kg £522.50
LD183/184 615mm 20 1094mm 70mm 1560.000000 460.000000 3060.000000 3880.000000 1140.000000 50.0kg 56.0kg £550.00
LD183/184 615mm 21 1147mm 70mm 1638.000000 483.000000 3213.000000 4074.000000 1197.000000 52.5kg 58.8kg £577.50
LD183/184 615mm 22 1200mm 70mm 1716.000000 506.000000 3366.000000 4268.000000 1254.000000 55.0kg 61.6kg £605.00
LD183/184 615mm 23 1253mm 70mm 1794.000000 529.000000 3519.000000 4462.000000 1311.000000 57.5kg 64.4kg £632.50
LD183/184 615mm 24 1306mm 70mm 1872.000000 552.000000 3672.000000 4656.000000 1368.000000 60.0kg 67.2kg £660.00
LD183/184 615mm 25 1359mm 70mm 1950.000000 575.000000 3825.000000 4850.000000 1425.000000 62.5kg 70.0kg £687.50
LD183/184 615mm 26 1412mm 70mm 2028.000000 598.000000 3978.000000 5044.000000 1482.000000 65.0kg 72.8kg £715.00
LD183/184 615mm 27 1465mm 70mm 2106.000000 621.000000 4131.000000 5238.000000 1539.000000 67.5kg 75.6kg £742.50
LD183/184 615mm 28 1518mm 70mm 2184.000000 644.000000 4284.000000 5432.000000 1596.000000 70.0kg 78.4kg £770.00
LD183/184 615mm 29 1571mm 70mm 2262.000000 667.000000 4437.000000 5626.000000 1653.000000 72.5kg 81.2kg £797.50
LD183/184 615mm 30 1624mm 70mm 2340.000000 690.000000 4590.000000 5820.000000 1710.000000 75.0kg 84.0kg £825.00

Buy your Victorian 2 Column radiator from Trads today

At Trads we understand that buying a Victorian 2 Column radiator is a long-term investment. That’s why we are on hand to answer any pre-purchase questions you may have.

You can reach the friendly, expert Trads team on 01400 263320 or by email at: sales@tradscastironradiators.co.uk

First developed to heat the big, draughty, high-ceilinged homes of the Victorian period, today’s Victorian cast iron radiators, like the Victorian 2 Column, can trace their roots back to the 1840s when the mass production of cast iron radiators in America first began.

The Victorian 2 Column is far from mass produced, being designed, assembled and customised by a team of master craftsmen in Trads’ workshop in the heart of Lincolnshire.

The Victorian 2 Column from Trads stands 615mm tall, which combined with its 2 column design, means it has a significant heat output matched with a slim profile, making it perfect for use in hallways and rooms where space may be a premium such as cloakrooms.

As the Victorian 2 Column is available in different sections - from three to over 30 - it's easily installed in even awkward spaces such as alcoves and bays.

The Victorian 2 Column is part of the wider Victorian family of cast iron radiators here at Trads. This range includes:

The finest design and construction

Beginning life as a CAD design, the Victorian 2 Column cast iron radiator is designed, finished and tested here in the UK.

Following the design stage, the Victorian 2 Column is cast using a CNC mould to the tightest tolerances.

The result is a cast iron radiator which makes the ideal base for a world of different colours and finishes.

A constellation of colours

When it comes to colour, you’re certainly not short of choice with the Victorian 2 Column available in over 10,000 colours.

These aren’t just any ordinary colours either. Trads uses paints from leading bespoke, luxury paint manufacturers including Cromadex, Little Greene, Roberson’s Liquid Metal, and Farrow & Ball.

You can also explore Trads' Traditional colour range or even have your Victorian 2 Column cast iron radiator colour matched to the colour of your choice using RAL codes.

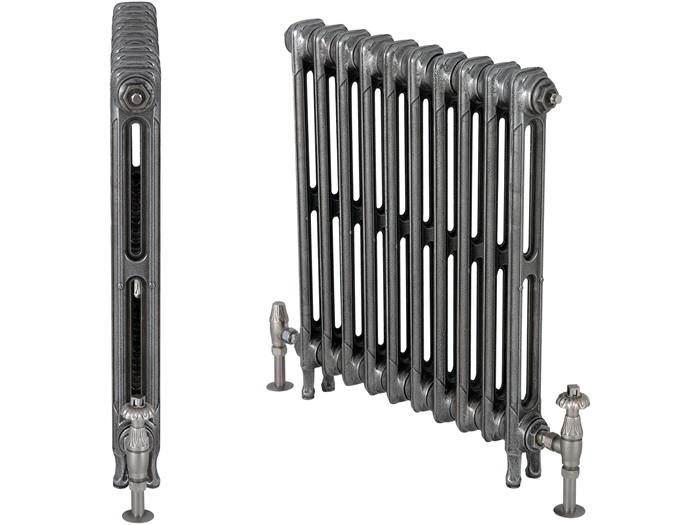

The Victorian 2 Column is also available in a range of luxurious finishes too. Pick from hand burnished, satin polish, highlight polish, patina finishes and more.

Lifetime guarantee

Our time-served master craftsmen ensure that only the very finest Victorian 2 Column radiators leave our workshop.

At each stage of manufacture, our radiators are intensely visually inspected, with each one subjected to high pressure testing to ensure that it will help provide you with a lifetime of unwavering service.

Such is our belief in the quality of our Victorian 2 Column radiator, that each one comes with a lifetime guarantee.
