Victorian 6 Column Cast Iron Radiator F&B Blue Ground

Victorian 6 Column Cast Iron Radiator F&B Blue Ground

Victorian 6 Column Cast Iron Radiator F&B Blue Ground Victorian 6 Column Cast Iron Radiator F&B Blue Ground Close Up Victorian 6 Column Cast Iron Radiator F&B Blue Ground Feet Victorian 6 Column Cast Iron Radiator F&B Blue Ground Close Up Sections Victorian 6 Column Cast Iron Radiator Satin Polished Victorian 6 Column Cast Iron Radiator Sections In Various Sizes And Finishes
YouTube

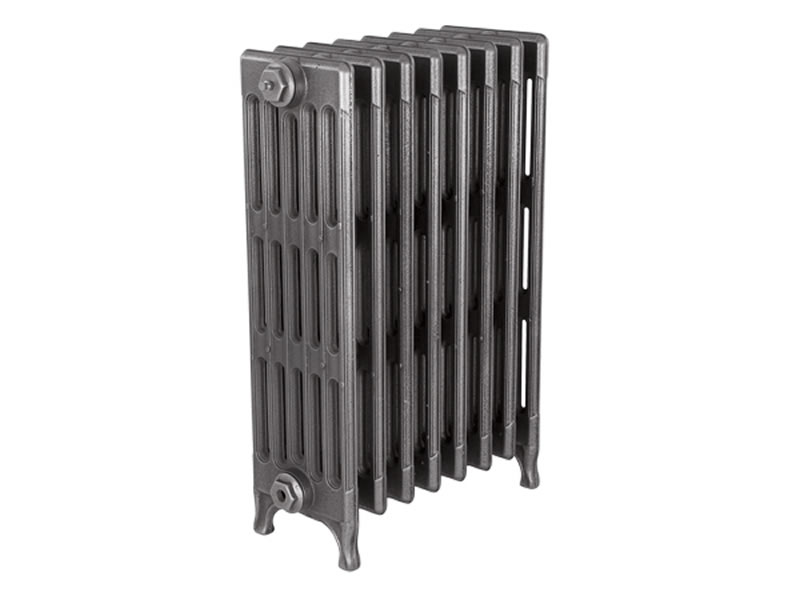

Victorian 6 Column Cast Iron Radiator

A traditional Victorian radiator which was first produced in America in the 1880s.

When heating large spaces, the 6 Column Victorian's remarkable heat output makes it the obvious choice. Yet it's clean and simple design gives a contemporary feel especially when hand burnished.

Available in 4 heights: 365mm, 630mm, 740mm, 920mm

From £109.50 (£36.50 per section)

United Kingdom Flag Hand-built & finished in the UK from 10 working days
  • FREE UK Mainland Delivery*
  • Specialist Finishes Available
  • Over 10,000 Colour Options
  • Available In 4 Heights
  • Lifetime Guarantee

*On orders over £300.00

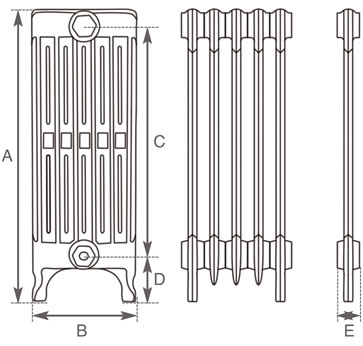

Victorian 6 Column Line Drawing

All measurements are for guidance only. Please allow for +/- 3% tolerance. Please do not install pipework until your radiators are onsite.

* per cast iron radiator section.
365 220 220 110 60 217.000000 64.000000 116.000000 34.000000 4.300000kg
630 215 500 95 60 360.000000 105.000000 181.000000 53.000000 10.200000kg
740 220 600 105 60 440.000000 129.000000 223.000000 65.000000 9.300000kg
920 215 790 95 58 559.000000 164.000000 279.000000 82.000000 11.000000kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

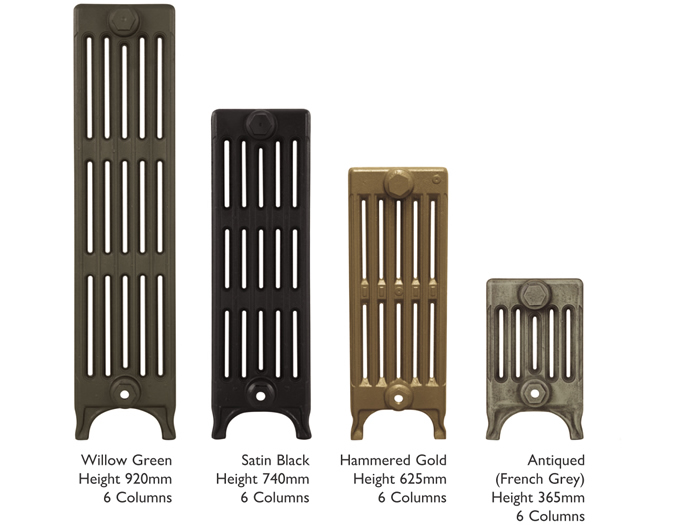

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • Victorian 6 Column 365Mm Hand Burnished End Hand Burnished
  • Victorian 6 Column 365Mm Hand Burnished End Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Victorian 6 Column 365Mm Ancient Breeze End Ancient Breeze
  • Victorian 6 Column 365Mm Buttermilk End Buttermilk
  • Victorian 6 Column 365Mm Foundry Grey End Foundry Grey
  • Victorian 6 Column 365Mm French Grey End French Grey
  • Victorian 6 Column 365Mm Graphite Grey End Graphite Grey
  • Victorian 6 Column 365Mm Hammered Bronze End Hammered Bronze
  • Victorian 6 Column 365Mm Hammered Gold End Hammered Gold
  • Victorian 6 Column 365Mm Parchment White End Parchment White
  • Victorian 6 Column 365Mm Primer End Primer
  • Victorian 6 Column 365Mm Satin Black End Satin Black
  • Victorian 6 Column 365Mm Vellum End Vellum
  • Victorian 6 Column 365Mm Willow Green End Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

Victorian 6 Column Cast Iron Radiator 800 01
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
LD213/214 365mm 3 214mm 220mm 348.000000 102.000000 651.000000 771.000000 225.000000 12.9kg 15.0kg £109.50
LD213/214 365mm 4 274mm 220mm 464.000000 136.000000 868.000000 1028.000000 300.000000 17.2kg 20.0kg £146.00
LD213/214 365mm 5 334mm 220mm 580.000000 170.000000 1085.000000 1285.000000 375.000000 21.5kg 25.0kg £182.50
LD213/214 365mm 6 394mm 220mm 696.000000 204.000000 1302.000000 1542.000000 450.000000 25.8kg 30.0kg £219.00
LD213/214 365mm 7 454mm 220mm 812.000000 238.000000 1519.000000 1799.000000 525.000000 30.1kg 35.0kg £255.50
LD213/214 365mm 8 514mm 220mm 928.000000 272.000000 1736.000000 2056.000000 600.000000 34.4kg 40.0kg £292.00
LD213/214 365mm 9 574mm 220mm 1044.000000 306.000000 1953.000000 2313.000000 675.000000 38.7kg 45.0kg £328.50
LD213/214 365mm 10 634mm 220mm 1160.000000 340.000000 2170.000000 2570.000000 750.000000 43.0kg 50.0kg £365.00
LD213/214 365mm 11 694mm 220mm 1276.000000 374.000000 2387.000000 2827.000000 825.000000 47.3kg 55.0kg £401.50
LD213/214 365mm 12 754mm 220mm 1392.000000 408.000000 2604.000000 3084.000000 900.000000 51.6kg 60.0kg £438.00
LD213/214 365mm 13 814mm 220mm 1508.000000 442.000000 2821.000000 3341.000000 975.000000 55.9kg 65.0kg £474.50
LD213/214 365mm 14 874mm 220mm 1624.000000 476.000000 3038.000000 3598.000000 1050.000000 60.2kg 70.0kg £511.00
LD213/214 365mm 15 934mm 220mm 1740.000000 510.000000 3255.000000 3855.000000 1125.000000 64.5kg 75.0kg £547.50
LD213/214 365mm 16 994mm 220mm 1856.000000 544.000000 3472.000000 4112.000000 1200.000000 68.8kg 80.0kg £584.00
LD213/214 365mm 17 1054mm 220mm 1972.000000 578.000000 3689.000000 4369.000000 1275.000000 73.1kg 85.0kg £620.50
LD213/214 365mm 18 1114mm 220mm 2088.000000 612.000000 3906.000000 4626.000000 1350.000000 77.4kg 90.0kg £657.00
LD213/214 365mm 19 1174mm 220mm 2204.000000 646.000000 4123.000000 4883.000000 1425.000000 81.7kg 95.0kg £693.50
LD213/214 365mm 20 1234mm 220mm 2320.000000 680.000000 4340.000000 5140.000000 1500.000000 86.0kg 100.0kg £730.00
LD213/214 365mm 21 1294mm 220mm 2436.000000 714.000000 4557.000000 5397.000000 1575.000000 90.3kg 105.0kg £766.50
LD213/214 365mm 22 1354mm 220mm 2552.000000 748.000000 4774.000000 5654.000000 1650.000000 94.6kg 110.0kg £803.00
LD213/214 365mm 23 1414mm 220mm 2668.000000 782.000000 4991.000000 5911.000000 1725.000000 98.9kg 115.0kg £839.50
LD213/214 365mm 24 1474mm 220mm 2784.000000 816.000000 5208.000000 6168.000000 1800.000000 103.2kg 120.0kg £876.00
LD213/214 365mm 25 1534mm 220mm 2900.000000 850.000000 5425.000000 6425.000000 1875.000000 107.5kg 125.0kg £912.50
LD213/214 365mm 26 1594mm 220mm 3016.000000 884.000000 5642.000000 6682.000000 1950.000000 111.8kg 130.0kg £949.00
LD213/214 365mm 27 1654mm 220mm 3132.000000 918.000000 5859.000000 6939.000000 2025.000000 116.1kg 135.0kg £985.50
LD213/214 365mm 28 1714mm 220mm 3248.000000 952.000000 6076.000000 7196.000000 2100.000000 120.4kg 140.0kg £1022.00
LD213/214 365mm 29 1774mm 220mm 3364.000000 986.000000 6293.000000 7453.000000 2175.000000 124.7kg 145.0kg £1058.50
LD213/214 365mm 30 1834mm 220mm 3480.000000 1020.000000 6510.000000 7710.000000 2250.000000 129.0kg 150.0kg £1095.00
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
LD269/270 630mm 3 214mm 215mm 543.000000 159.000000 1080.000000 1380.000000 405.000000 30.6kg 33.6kg £205.50
LD269/270 630mm 4 274mm 215mm 724.000000 212.000000 1440.000000 1840.000000 540.000000 40.8kg 44.8kg £274.00
LD269/270 630mm 5 334mm 215mm 905.000000 265.000000 1800.000000 2300.000000 675.000000 51.0kg 56.0kg £342.50
LD269/270 630mm 6 394mm 215mm 1086.000000 318.000000 2160.000000 2760.000000 810.000000 61.2kg 67.2kg £411.00
LD269/270 630mm 7 454mm 215mm 1267.000000 371.000000 2520.000000 3220.000000 945.000000 71.4kg 78.4kg £479.50
LD269/270 630mm 8 514mm 215mm 1448.000000 424.000000 2880.000000 3680.000000 1080.000000 81.6kg 89.6kg £548.00
LD269/270 630mm 9 574mm 215mm 1629.000000 477.000000 3240.000000 4140.000000 1215.000000 91.8kg 100.8kg £616.50
LD269/270 630mm 10 634mm 215mm 1810.000000 530.000000 3600.000000 4600.000000 1350.000000 102.0kg 112.0kg £685.00
LD269/270 630mm 11 694mm 215mm 1991.000000 583.000000 3960.000000 5060.000000 1485.000000 112.2kg 123.2kg £753.50
LD269/270 630mm 12 754mm 215mm 2172.000000 636.000000 4320.000000 5520.000000 1620.000000 122.4kg 134.4kg £822.00
LD269/270 630mm 13 814mm 215mm 2353.000000 689.000000 4680.000000 5980.000000 1755.000000 132.6kg 145.6kg £890.50
LD269/270 630mm 14 874mm 215mm 2534.000000 742.000000 5040.000000 6440.000000 1890.000000 142.8kg 156.8kg £959.00
LD269/270 630mm 15 934mm 215mm 2715.000000 795.000000 5400.000000 6900.000000 2025.000000 153.0kg 168.0kg £1027.50
LD269/270 630mm 16 994mm 215mm 2896.000000 848.000000 5760.000000 7360.000000 2160.000000 163.2kg 179.2kg £1096.00
LD269/270 630mm 17 1054mm 215mm 3077.000000 901.000000 6120.000000 7820.000000 2295.000000 173.4kg 190.4kg £1164.50
LD269/270 630mm 18 1114mm 215mm 3258.000000 954.000000 6480.000000 8280.000000 2430.000000 183.6kg 201.6kg £1233.00
LD269/270 630mm 19 1174mm 215mm 3439.000000 1007.000000 6840.000000 8740.000000 2565.000000 193.8kg 212.8kg £1301.50
LD269/270 630mm 20 1234mm 215mm 3620.000000 1060.000000 7200.000000 9200.000000 2700.000000 204.0kg 224.0kg £1370.00
LD269/270 630mm 21 1294mm 215mm 3801.000000 1113.000000 7560.000000 9660.000000 2835.000000 214.2kg 235.2kg £1438.50
LD269/270 630mm 22 1354mm 215mm 3982.000000 1166.000000 7920.000000 10120.000000 2970.000000 224.4kg 246.4kg £1507.00
LD269/270 630mm 23 1414mm 215mm 4163.000000 1219.000000 8280.000000 10580.000000 3105.000000 234.6kg 257.6kg £1575.50
LD269/270 630mm 24 1474mm 215mm 4344.000000 1272.000000 8640.000000 11040.000000 3240.000000 244.8kg 268.8kg £1644.00
LD269/270 630mm 25 1534mm 215mm 4525.000000 1325.000000 9000.000000 11500.000000 3375.000000 255.0kg 280.0kg £1712.50
LD269/270 630mm 26 1594mm 215mm 4706.000000 1378.000000 9360.000000 11960.000000 3510.000000 265.2kg 291.2kg £1781.00
LD269/270 630mm 27 1654mm 215mm 4887.000000 1431.000000 9720.000000 12420.000000 3645.000000 275.4kg 302.4kg £1849.50
LD269/270 630mm 28 1714mm 215mm 5068.000000 1484.000000 10080.000000 12880.000000 3780.000000 285.6kg 313.6kg £1918.00
LD269/270 630mm 29 1774mm 215mm 5249.000000 1537.000000 10440.000000 13340.000000 3915.000000 295.8kg 324.8kg £1986.50
LD269/270 630mm 30 1834mm 215mm 5430.000000 1590.000000 10800.000000 13800.000000 4050.000000 306.0kg 336.0kg £2055.00
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
LD208/209 740mm 3 214mm 220mm 669.000000 195.000000 1320.000000 1683.000000 495.000000 27.9kg 31.5kg £205.50
LD208/209 740mm 4 274mm 220mm 892.000000 260.000000 1760.000000 2244.000000 660.000000 37.2kg 42.0kg £274.00
LD208/209 740mm 5 334mm 220mm 1115.000000 325.000000 2200.000000 2805.000000 825.000000 46.5kg 52.5kg £342.50
LD208/209 740mm 6 394mm 220mm 1338.000000 390.000000 2640.000000 3366.000000 990.000000 55.8kg 63.0kg £411.00
LD208/209 740mm 7 454mm 220mm 1561.000000 455.000000 3080.000000 3927.000000 1155.000000 65.1kg 73.5kg £479.50
LD208/209 740mm 8 514mm 220mm 1784.000000 520.000000 3520.000000 4488.000000 1320.000000 74.4kg 84.0kg £548.00
LD208/209 740mm 9 574mm 220mm 2007.000000 585.000000 3960.000000 5049.000000 1485.000000 83.7kg 94.5kg £616.50
LD208/209 740mm 10 634mm 220mm 2230.000000 650.000000 4400.000000 5610.000000 1650.000000 93.0kg 105.0kg £685.00
LD208/209 740mm 11 694mm 220mm 2453.000000 715.000000 4840.000000 6171.000000 1815.000000 102.3kg 115.5kg £753.50
LD208/209 740mm 12 754mm 220mm 2676.000000 780.000000 5280.000000 6732.000000 1980.000000 111.6kg 126.0kg £822.00
LD208/209 740mm 13 814mm 220mm 2899.000000 845.000000 5720.000000 7293.000000 2145.000000 120.9kg 136.5kg £890.50
LD208/209 740mm 14 874mm 220mm 3122.000000 910.000000 6160.000000 7854.000000 2310.000000 130.2kg 147.0kg £959.00
LD208/209 740mm 15 934mm 220mm 3345.000000 975.000000 6600.000000 8415.000000 2475.000000 139.5kg 157.5kg £1027.50
LD208/209 740mm 16 994mm 220mm 3568.000000 1040.000000 7040.000000 8976.000000 2640.000000 148.8kg 168.0kg £1096.00
LD208/209 740mm 17 1054mm 220mm 3791.000000 1105.000000 7480.000000 9537.000000 2805.000000 158.1kg 178.5kg £1164.50
LD208/209 740mm 18 1114mm 220mm 4014.000000 1170.000000 7920.000000 10098.000000 2970.000000 167.4kg 189.0kg £1233.00
LD208/209 740mm 19 1174mm 220mm 4237.000000 1235.000000 8360.000000 10659.000000 3135.000000 176.7kg 199.5kg £1301.50
LD208/209 740mm 20 1234mm 220mm 4460.000000 1300.000000 8800.000000 11220.000000 3300.000000 186.0kg 210.0kg £1370.00
LD208/209 740mm 21 1294mm 220mm 4683.000000 1365.000000 9240.000000 11781.000000 3465.000000 195.3kg 220.5kg £1438.50
LD208/209 740mm 22 1354mm 220mm 4906.000000 1430.000000 9680.000000 12342.000000 3630.000000 204.6kg 231.0kg £1507.00
LD208/209 740mm 23 1414mm 220mm 5129.000000 1495.000000 10120.000000 12903.000000 3795.000000 213.9kg 241.5kg £1575.50
LD208/209 740mm 24 1474mm 220mm 5352.000000 1560.000000 10560.000000 13464.000000 3960.000000 223.2kg 252.0kg £1644.00
LD208/209 740mm 25 1534mm 220mm 5575.000000 1625.000000 11000.000000 14025.000000 4125.000000 232.5kg 262.5kg £1712.50
LD208/209 740mm 26 1594mm 220mm 5798.000000 1690.000000 11440.000000 14586.000000 4290.000000 241.8kg 273.0kg £1781.00
LD208/209 740mm 27 1654mm 220mm 6021.000000 1755.000000 11880.000000 15147.000000 4455.000000 251.1kg 283.5kg £1849.50
LD208/209 740mm 28 1714mm 220mm 6244.000000 1820.000000 12320.000000 15708.000000 4620.000000 260.4kg 294.0kg £1918.00
LD208/209 740mm 29 1774mm 220mm 6467.000000 1885.000000 12760.000000 16269.000000 4785.000000 269.7kg 304.5kg £1986.50
LD208/209 740mm 30 1834mm 220mm 6690.000000 1950.000000 13200.000000 16830.000000 4950.000000 279.0kg 315.0kg £2055.00
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
LD078/079 920mm 3 208mm 215mm 837.000000 246.000000 1677.000000 1932.000000 567.000000 33.0kg 37.2kg £249.00
LD078/079 920mm 4 266mm 215mm 1116.000000 328.000000 2236.000000 2576.000000 756.000000 44.0kg 49.6kg £332.00
LD078/079 920mm 5 324mm 215mm 1395.000000 410.000000 2795.000000 3220.000000 945.000000 55.0kg 62.0kg £415.00
LD078/079 920mm 6 382mm 215mm 1674.000000 492.000000 3354.000000 3864.000000 1134.000000 66.0kg 74.4kg £498.00
LD078/079 920mm 7 440mm 215mm 1953.000000 574.000000 3913.000000 4508.000000 1323.000000 77.0kg 86.8kg £581.00
LD078/079 920mm 8 498mm 215mm 2232.000000 656.000000 4472.000000 5152.000000 1512.000000 88.0kg 99.2kg £664.00
LD078/079 920mm 9 556mm 215mm 2511.000000 738.000000 5031.000000 5796.000000 1701.000000 99.0kg 111.6kg £747.00
LD078/079 920mm 10 614mm 215mm 2790.000000 820.000000 5590.000000 6440.000000 1890.000000 110.0kg 124.0kg £830.00
LD078/079 920mm 11 672mm 215mm 3069.000000 902.000000 6149.000000 7084.000000 2079.000000 121.0kg 136.4kg £913.00
LD078/079 920mm 12 730mm 215mm 3348.000000 984.000000 6708.000000 7728.000000 2268.000000 132.0kg 148.8kg £996.00
LD078/079 920mm 13 788mm 215mm 3627.000000 1066.000000 7267.000000 8372.000000 2457.000000 143.0kg 161.2kg £1079.00
LD078/079 920mm 14 846mm 215mm 3906.000000 1148.000000 7826.000000 9016.000000 2646.000000 154.0kg 173.6kg £1162.00
LD078/079 920mm 15 904mm 215mm 4185.000000 1230.000000 8385.000000 9660.000000 2835.000000 165.0kg 186.0kg £1245.00
LD078/079 920mm 16 962mm 215mm 4464.000000 1312.000000 8944.000000 10304.000000 3024.000000 176.0kg 198.4kg £1328.00
LD078/079 920mm 17 1020mm 215mm 4743.000000 1394.000000 9503.000000 10948.000000 3213.000000 187.0kg 210.8kg £1411.00
LD078/079 920mm 18 1078mm 215mm 5022.000000 1476.000000 10062.000000 11592.000000 3402.000000 198.0kg 223.2kg £1494.00
LD078/079 920mm 19 1136mm 215mm 5301.000000 1558.000000 10621.000000 12236.000000 3591.000000 209.0kg 235.6kg £1577.00
LD078/079 920mm 20 1194mm 215mm 5580.000000 1640.000000 11180.000000 12880.000000 3780.000000 220.0kg 248.0kg £1660.00
LD078/079 920mm 21 1252mm 215mm 5859.000000 1722.000000 11739.000000 13524.000000 3969.000000 231.0kg 260.4kg £1743.00
LD078/079 920mm 22 1310mm 215mm 6138.000000 1804.000000 12298.000000 14168.000000 4158.000000 242.0kg 272.8kg £1826.00
LD078/079 920mm 23 1368mm 215mm 6417.000000 1886.000000 12857.000000 14812.000000 4347.000000 253.0kg 285.2kg £1909.00
LD078/079 920mm 24 1426mm 215mm 6696.000000 1968.000000 13416.000000 15456.000000 4536.000000 264.0kg 297.6kg £1992.00
LD078/079 920mm 25 1484mm 215mm 6975.000000 2050.000000 13975.000000 16100.000000 4725.000000 275.0kg 310.0kg £2075.00
LD078/079 920mm 26 1542mm 215mm 7254.000000 2132.000000 14534.000000 16744.000000 4914.000000 286.0kg 322.4kg £2158.00
LD078/079 920mm 27 1600mm 215mm 7533.000000 2214.000000 15093.000000 17388.000000 5103.000000 297.0kg 334.8kg £2241.00
LD078/079 920mm 28 1658mm 215mm 7812.000000 2296.000000 15652.000000 18032.000000 5292.000000 308.0kg 347.2kg £2324.00
LD078/079 920mm 29 1716mm 215mm 8091.000000 2378.000000 16211.000000 18676.000000 5481.000000 319.0kg 359.6kg £2407.00
LD078/079 920mm 30 1774mm 215mm 8370.000000 2460.000000 16770.000000 19320.000000 5670.000000 330.0kg 372.0kg £2490.00
