* per cast iron radiator section.
|
|
|
|
|
|
|
|
|
|
330 |
330 |
217 |
75 |
56 |
332 |
97 |
174 |
51 |
7.8kg |
To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator
Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:
-
Antiqued French Grey
-
Hand Burnished
-
Satin Polished
Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours
-
Ancient Breeze
-
Buttermilk
-
Foundry Grey
-
French Grey
-
Graphite Grey
-
Hammered Bronze
-
Hammered Gold
-
Parchment White
-
Primer
-
Satin Black
-
Vellum
-
Willow Green
Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.
With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.
Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

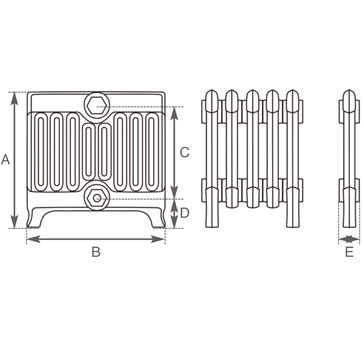

Victorian 9 Column Radiator Sizing & Metrics
Model No. |
Height |
Sections |
Width /Length (inc. bushes) |
Depth (from wall) |
BTU's (ΔT 30°) |
Watts (ΔT 30°) |
BTU's (ΔT 50°) |
Watts (ΔT 50°) |
BTU's (ΔT 60°) |
Watts (ΔT 60°) |
Empty Weight |
Filled Weight |
Price From (inc. VAT in Primer) |
Buy Radiator |
LD009/010 |
330mm |
3 |
202mm |
330mm |
522 |
153 |
996 |
291 |
1254 |
369 |
23.4kg |
26.7kg |
£103.20 |
|
LD009/010 |
330mm |
4 |
258mm |
330mm |
696 |
204 |
1328 |
388 |
1672 |
492 |
31.2kg |
35.6kg |
£137.60 |
|
LD009/010 |
330mm |
5 |
314mm |
330mm |
870 |
255 |
1660 |
485 |
2090 |
615 |
39.0kg |
44.5kg |
£172.00 |
|
LD009/010 |
330mm |
6 |
370mm |
330mm |
1044 |
306 |
1992 |
582 |
2508 |
738 |
46.8kg |
53.4kg |
£206.40 |
|
LD009/010 |
330mm |
7 |
426mm |
330mm |
1218 |
357 |
2324 |
679 |
2926 |
861 |
54.6kg |
62.3kg |
£240.80 |
|
LD009/010 |
330mm |
8 |
482mm |
330mm |
1392 |
408 |
2656 |
776 |
3344 |
984 |
62.4kg |
71.2kg |
£275.20 |
|
LD009/010 |
330mm |
9 |
538mm |
330mm |
1566 |
459 |
2988 |
873 |
3762 |
1107 |
70.2kg |
80.1kg |
£309.60 |
|
LD009/010 |
330mm |
10 |
594mm |
330mm |
1740 |
510 |
3320 |
970 |
4180 |
1230 |
78.0kg |
89.0kg |
£344.00 |
|
LD009/010 |
330mm |
11 |
650mm |
330mm |
1914 |
561 |
3652 |
1067 |
4598 |
1353 |
85.8kg |
97.9kg |
£378.40 |
|
LD009/010 |
330mm |
12 |
706mm |
330mm |
2088 |
612 |
3984 |
1164 |
5016 |
1476 |
93.6kg |
106.8kg |
£412.80 |
|
LD009/010 |
330mm |
13 |
762mm |
330mm |
2262 |
663 |
4316 |
1261 |
5434 |
1599 |
101.4kg |
115.7kg |
£447.20 |
|
LD009/010 |
330mm |
14 |
818mm |
330mm |
2436 |
714 |
4648 |
1358 |
5852 |
1722 |
109.2kg |
124.6kg |
£481.60 |
|
LD009/010 |
330mm |
15 |
874mm |
330mm |
2610 |
765 |
4980 |
1455 |
6270 |
1845 |
117.0kg |
133.5kg |
£516.00 |
|
LD009/010 |
330mm |
16 |
930mm |
330mm |
2784 |
816 |
5312 |
1552 |
6688 |
1968 |
124.8kg |
142.4kg |
£550.40 |
|
LD009/010 |
330mm |
17 |
986mm |
330mm |
2958 |
867 |
5644 |
1649 |
7106 |
2091 |
132.6kg |
151.3kg |
£584.80 |
|
LD009/010 |
330mm |
18 |
1042mm |
330mm |
3132 |
918 |
5976 |
1746 |
7524 |
2214 |
140.4kg |
160.2kg |
£619.20 |
|
LD009/010 |
330mm |
19 |
1098mm |
330mm |
3306 |
969 |
6308 |
1843 |
7942 |
2337 |
148.2kg |
169.1kg |
£653.60 |
|
LD009/010 |
330mm |
20 |
1154mm |
330mm |
3480 |
1020 |
6640 |
1940 |
8360 |
2460 |
156.0kg |
178.0kg |
£688.00 |
|
LD009/010 |
330mm |
21 |
1210mm |
330mm |
3654 |
1071 |
6972 |
2037 |
8778 |
2583 |
163.8kg |
186.9kg |
£722.40 |
|
LD009/010 |
330mm |
22 |
1266mm |
330mm |
3828 |
1122 |
7304 |
2134 |
9196 |
2706 |
171.6kg |
195.8kg |
£756.80 |
|
LD009/010 |
330mm |
23 |
1322mm |
330mm |
4002 |
1173 |
7636 |
2231 |
9614 |
2829 |
179.4kg |
204.7kg |
£791.20 |
|
LD009/010 |
330mm |
24 |
1378mm |
330mm |
4176 |
1224 |
7968 |
2328 |
10032 |
2952 |
187.2kg |
213.6kg |
£825.60 |
|
LD009/010 |
330mm |
25 |
1434mm |
330mm |
4350 |
1275 |
8300 |
2425 |
10450 |
3075 |
195.0kg |
222.5kg |
£860.00 |
|
LD009/010 |
330mm |
26 |
1490mm |
330mm |
4524 |
1326 |
8632 |
2522 |
10868 |
3198 |
202.8kg |
231.4kg |
£894.40 |
|
LD009/010 |
330mm |
27 |
1546mm |
330mm |
4698 |
1377 |
8964 |
2619 |
11286 |
3321 |
210.6kg |
240.3kg |
£928.80 |
|
LD009/010 |
330mm |
28 |
1602mm |
330mm |
4872 |
1428 |
9296 |
2716 |
11704 |
3444 |
218.4kg |
249.2kg |
£963.20 |
|
LD009/010 |
330mm |
29 |
1658mm |
330mm |
5046 |
1479 |
9628 |
2813 |
12122 |
3567 |
226.2kg |
258.1kg |
£997.60 |
|
LD009/010 |
330mm |
30 |
1714mm |
330mm |
5220 |
1530 |
9960 |
2910 |
12540 |
3690 |
234.0kg |
267.0kg |
£1032.00 |
|
