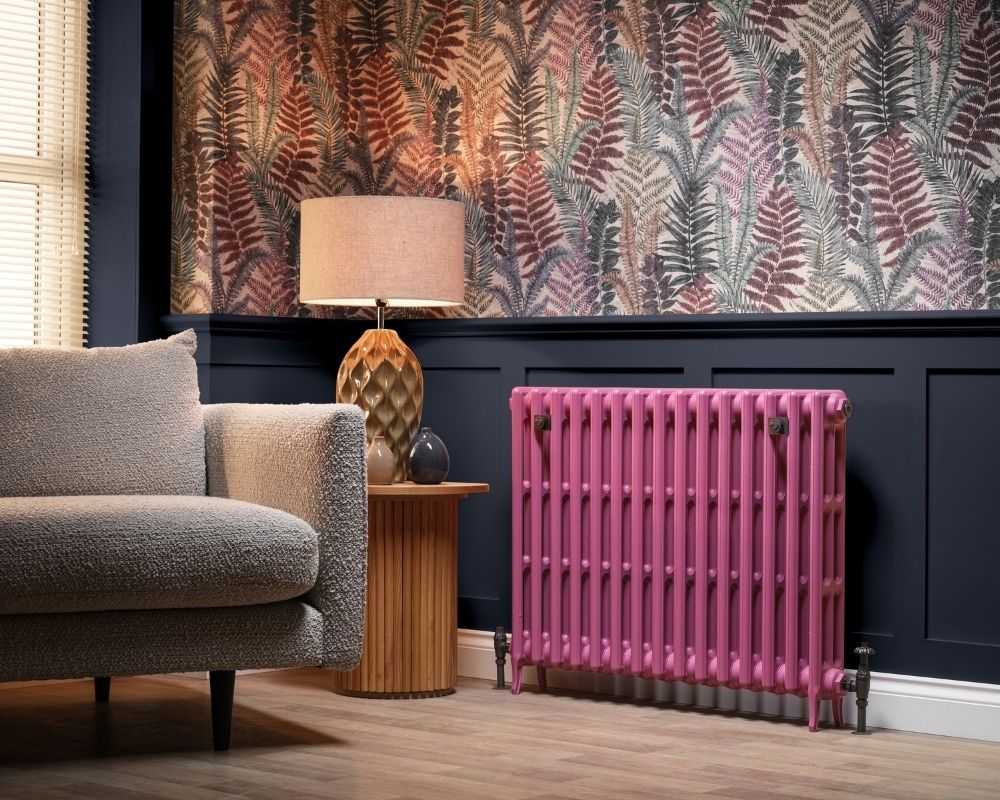

Victorian 3 Column Cast Iron Radiator F&B Rangwali

Victorian 3 Column Cast Iron Radiator F&B Rangwali

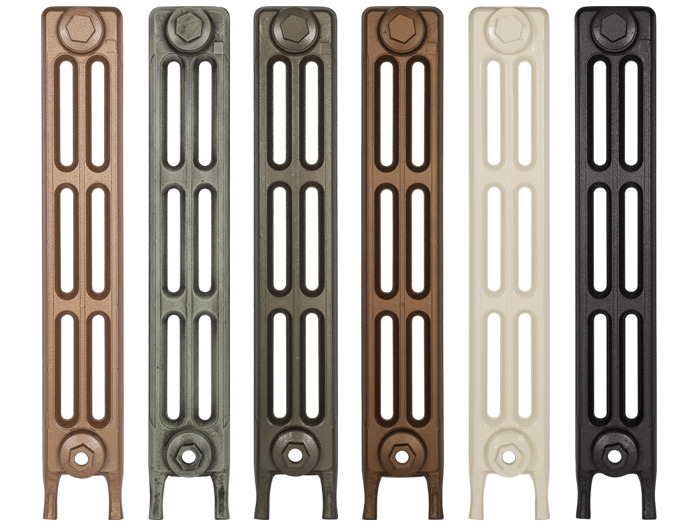

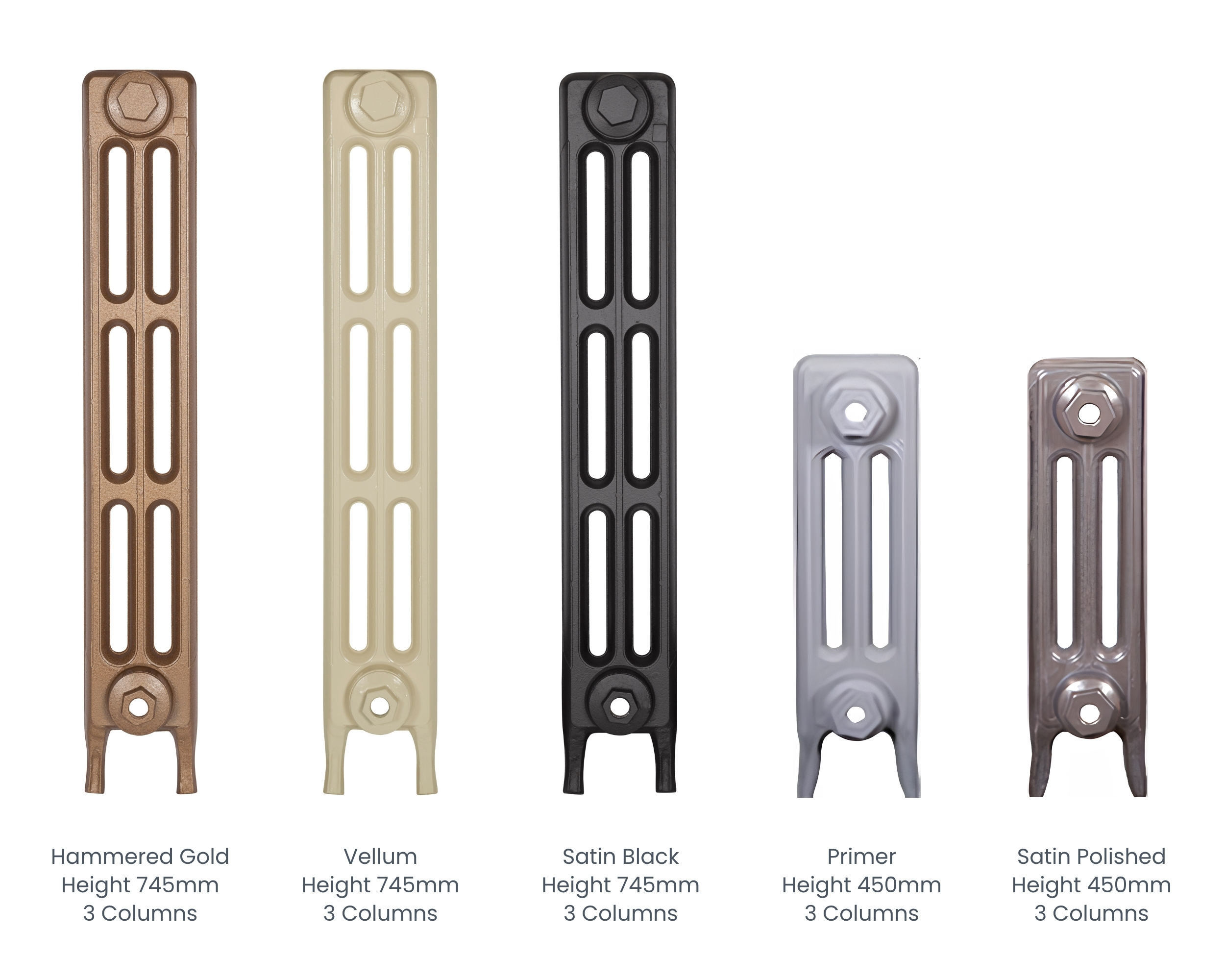

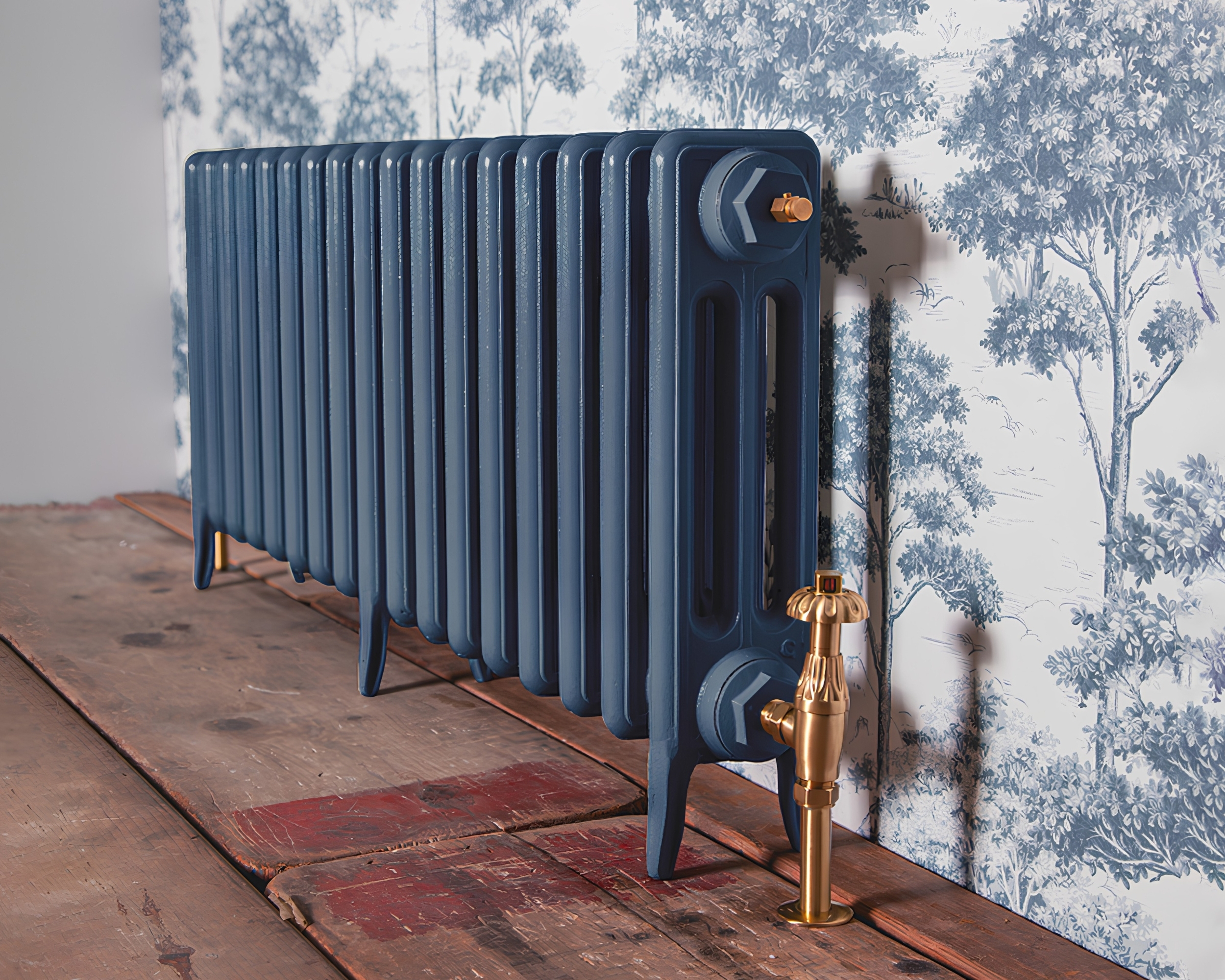

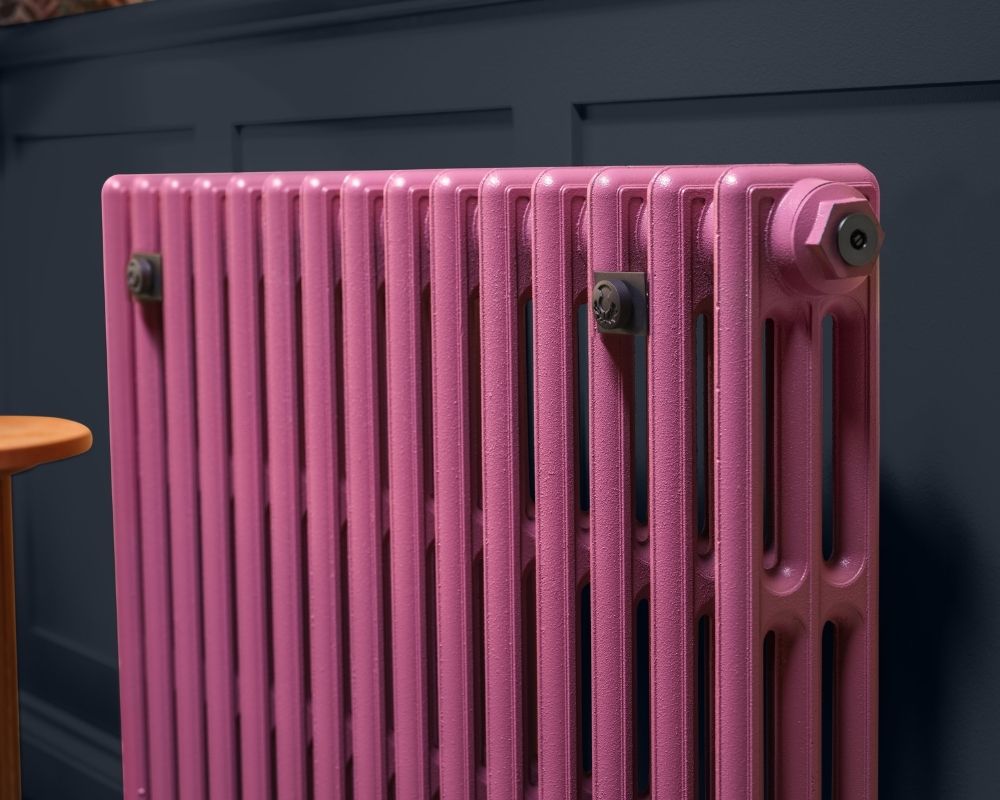

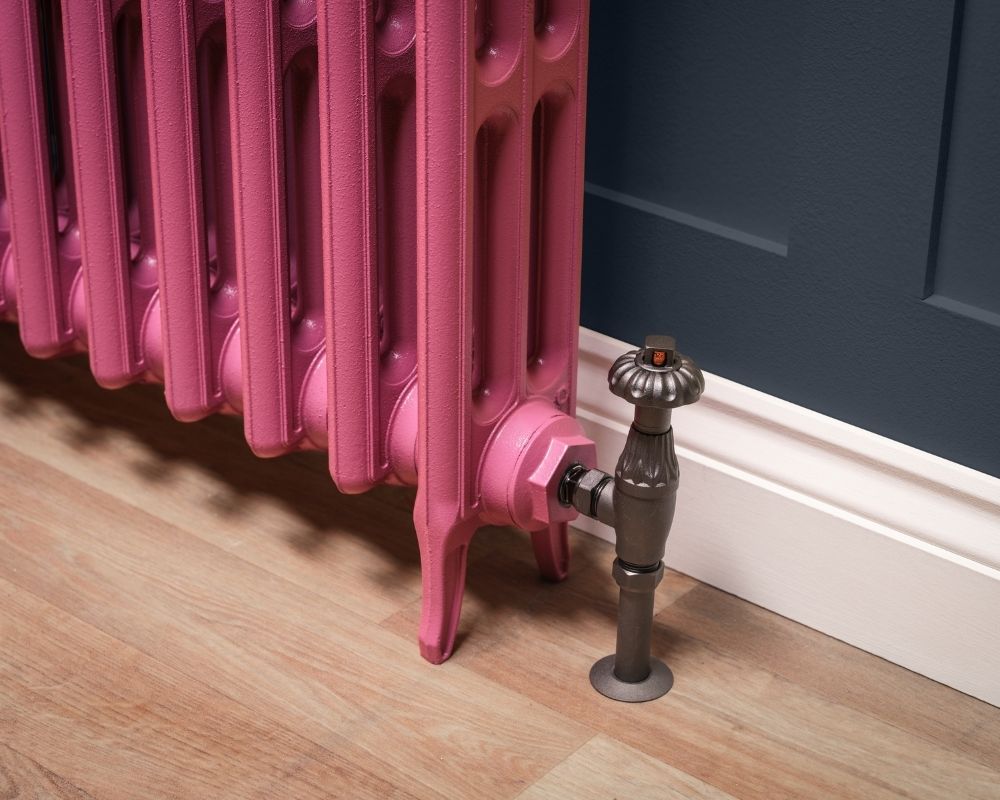

Victorian 3 Column Cast Iron Radiator F&B Rangwali Victorian 3 Column Cast Iron Radiator F&B Rangwali Sections Victorian 3 Column Cast Iron Radiator F&B Rangwali Feet Victorian 3 Column 450mm Victorian 3 Column Cast Iron Radiator Hand Burnished Victorian 3 Column Cast Iron Radiators In Various Heights And Finishes

Victorian 3 Column Cast Iron Radiator

Forming part of the Victorian range of Cast Iron Radiators, the 3 column 735mm high model sits perfectly between the 2 and 4 column versions. This means a Victorian radiator can now be specified with widths between the 80mm (2 column) and 140mm (4 column) with a profile of 120mm for the 3 column.

This ever popular range suits a wide variety of finishes and can be complimented by our extensive range of radiator accessories.

Available in 2 heights: 450mm, 745mm

From £72.00 (£24.00 per section)

United Kingdom Flag Hand-built & finished in the UK from 10 working days
  • Available In 2 Heights
  • Lifetime Guarantee
  • Heat Or Air Source Compatible
  • FREE UK Mainland Delivery*
  • Over 10,000 Colour Options

*On orders over £300.00

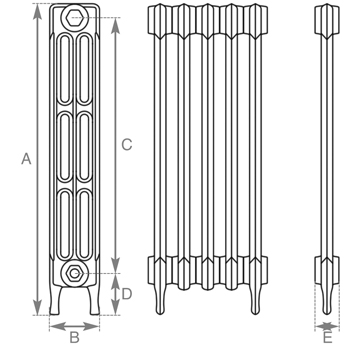

Victorian 3 Column Line Drawing

All measurements are for guidance only. Please allow for +/- 3% tolerance. Please do not install pipework until your radiators are onsite.

* per cast iron radiator section.
450 120 300 105 62 163.000000 48.000000 89.000000 26.000000 3.620000kg
745 120 600 105 62 271.000000 80.000000 140.000000 41.000000 5.160000kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

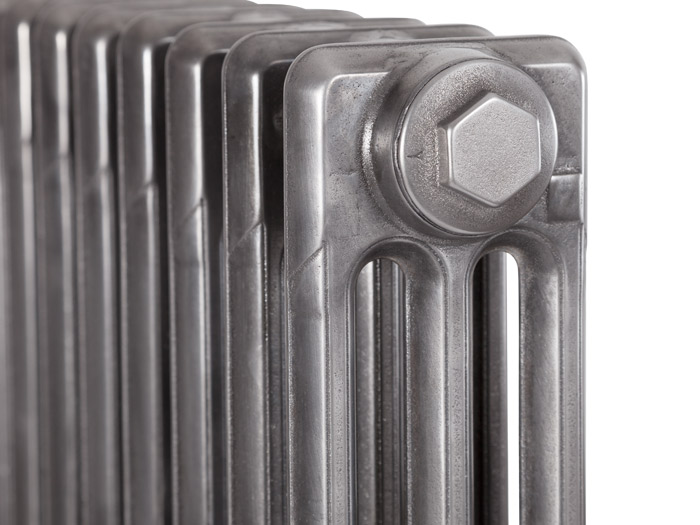

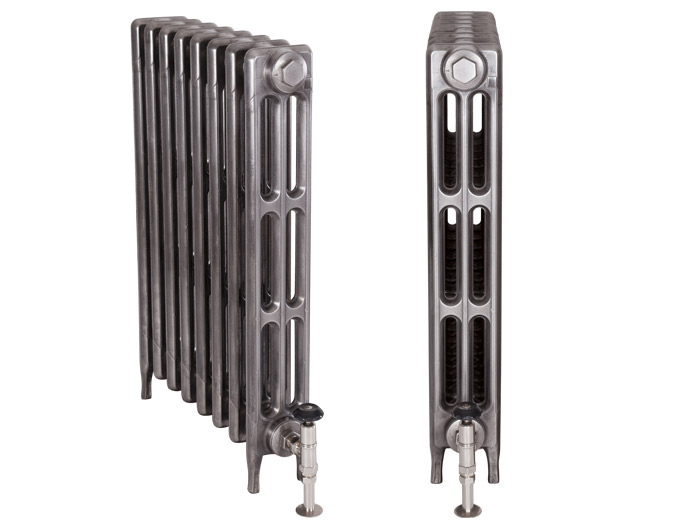

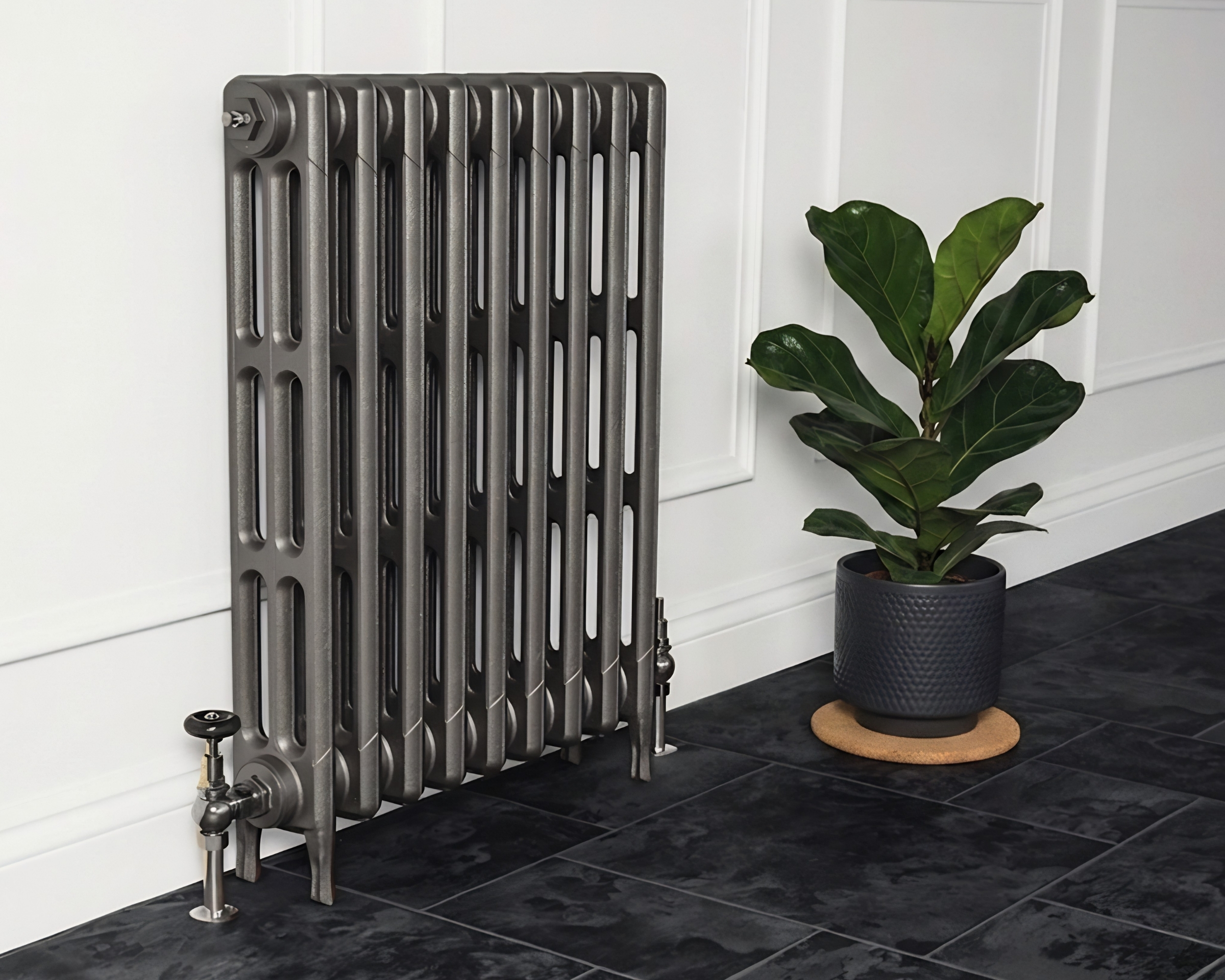

  • Victorian 3 Column 450Mm Hand Burnished End Section Hand Burnished
  • Victorian 3 Column 450Mm Hand Burnished End Section Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Victorian 3 Column 450Mm Ancient Breeze End Section Ancient Breeze
  • Victorian 3 Column 450Mm Buttermilk End Section Buttermilk
  • Victorian 3 Column 450Mm Foundry Grey End Section Foundry Grey
  • Victorian 3 Column 450Mm French Grey End Section French Grey
  • Victorian 3 Column 450Mm Graphite Grey End Section Graphite Grey
  • Victorian 3 Column 450Mm Hammered Bronze End Section Hammered Bronze
  • Victorian 3 Column 450Mm Hammered Gold End Section Hammered Gold
  • Victorian 3 Column 450Mm Parchment White End Section Parchment White
  • Victorian 3 Column 450Mm Primer End Section Primer

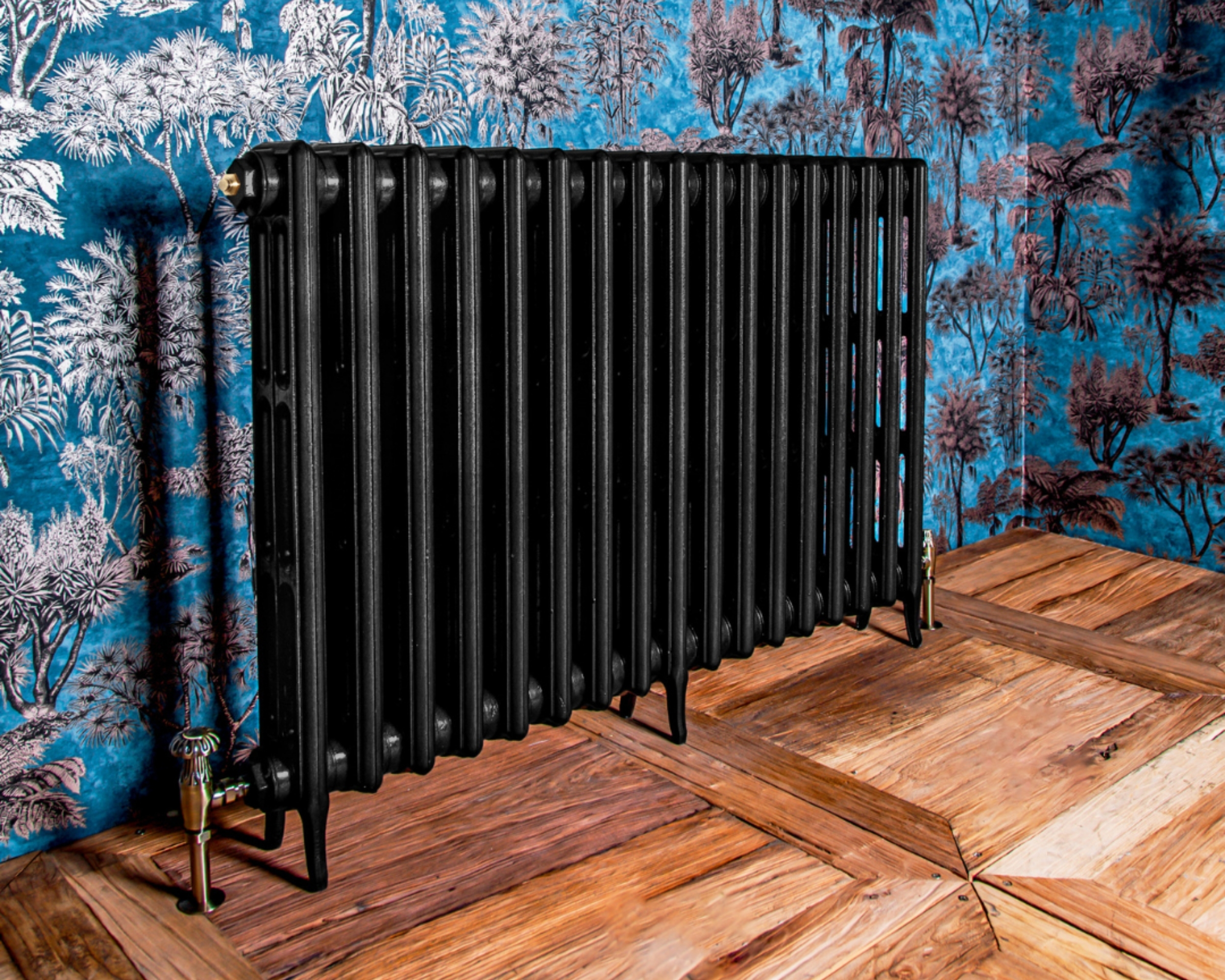

  • Victorian 3 Column 450Mm Satin Black End Section Satin Black
  • Victorian 3 Column 450Mm Vellum End Section Vellum
  • Victorian 3 Column 450Mm Willow Green End Section Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

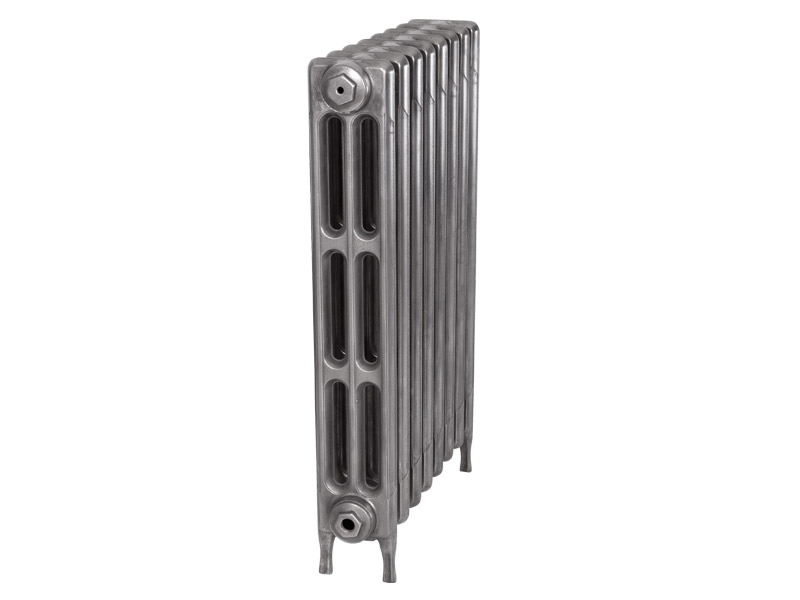

Victorian 3 Column Cast Iron Radiator 800 01
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
LD267/268 450mm 3 220mm 120mm 267.000000 78.000000 489.000000 615.000000 180.000000 10.9kg 12.6kg £72.00
LD267/268 450mm 4 282mm 120mm 356.000000 104.000000 652.000000 820.000000 240.000000 14.5kg 16.8kg £96.00
LD267/268 450mm 5 344mm 120mm 445.000000 130.000000 815.000000 1025.000000 300.000000 18.1kg 21.1kg £120.00
LD267/268 450mm 6 406mm 120mm 534.000000 156.000000 978.000000 1230.000000 360.000000 21.7kg 25.3kg £144.00
LD267/268 450mm 7 468mm 120mm 623.000000 182.000000 1141.000000 1435.000000 420.000000 25.3kg 29.5kg £168.00
LD267/268 450mm 8 530mm 120mm 712.000000 208.000000 1304.000000 1640.000000 480.000000 29.0kg 33.7kg £192.00
LD267/268 450mm 9 592mm 120mm 801.000000 234.000000 1467.000000 1845.000000 540.000000 32.6kg 37.9kg £216.00
LD267/268 450mm 10 654mm 120mm 890.000000 260.000000 1630.000000 2050.000000 600.000000 36.2kg 42.1kg £240.00
LD267/268 450mm 11 716mm 120mm 979.000000 286.000000 1793.000000 2255.000000 660.000000 39.8kg 46.3kg £264.00
LD267/268 450mm 12 778mm 120mm 1068.000000 312.000000 1956.000000 2460.000000 720.000000 43.4kg 50.5kg £288.00
LD267/268 450mm 13 840mm 120mm 1157.000000 338.000000 2119.000000 2665.000000 780.000000 47.1kg 54.7kg £312.00
LD267/268 450mm 14 902mm 120mm 1246.000000 364.000000 2282.000000 2870.000000 840.000000 50.7kg 58.9kg £336.00
LD267/268 450mm 15 964mm 120mm 1335.000000 390.000000 2445.000000 3075.000000 900.000000 54.3kg 63.2kg £360.00
LD267/268 450mm 16 1026mm 120mm 1424.000000 416.000000 2608.000000 3280.000000 960.000000 57.9kg 67.4kg £384.00
LD267/268 450mm 17 1088mm 120mm 1513.000000 442.000000 2771.000000 3485.000000 1020.000000 61.5kg 71.6kg £408.00
LD267/268 450mm 18 1150mm 120mm 1602.000000 468.000000 2934.000000 3690.000000 1080.000000 65.2kg 75.8kg £432.00
LD267/268 450mm 19 1212mm 120mm 1691.000000 494.000000 3097.000000 3895.000000 1140.000000 68.8kg 80.0kg £456.00
LD267/268 450mm 20 1274mm 120mm 1780.000000 520.000000 3260.000000 4100.000000 1200.000000 72.4kg 84.2kg £480.00
LD267/268 450mm 21 1336mm 120mm 1869.000000 546.000000 3423.000000 4305.000000 1260.000000 76.0kg 88.4kg £504.00
LD267/268 450mm 22 1398mm 120mm 1958.000000 572.000000 3586.000000 4510.000000 1320.000000 79.6kg 92.6kg £528.00
LD267/268 450mm 23 1460mm 120mm 2047.000000 598.000000 3749.000000 4715.000000 1380.000000 83.3kg 96.8kg £552.00
LD267/268 450mm 24 1522mm 120mm 2136.000000 624.000000 3912.000000 4920.000000 1440.000000 86.9kg 101.0kg £576.00
LD267/268 450mm 25 1584mm 120mm 2225.000000 650.000000 4075.000000 5125.000000 1500.000000 90.5kg 105.3kg £600.00
LD267/268 450mm 26 1646mm 120mm 2314.000000 676.000000 4238.000000 5330.000000 1560.000000 94.1kg 109.5kg £624.00
LD267/268 450mm 27 1708mm 120mm 2403.000000 702.000000 4401.000000 5535.000000 1620.000000 97.7kg 113.7kg £648.00
LD267/268 450mm 28 1770mm 120mm 2492.000000 728.000000 4564.000000 5740.000000 1680.000000 101.4kg 117.9kg £672.00
LD267/268 450mm 29 1832mm 120mm 2581.000000 754.000000 4727.000000 5945.000000 1740.000000 105.0kg 122.1kg £696.00
LD267/268 450mm 30 1894mm 120mm 2670.000000 780.000000 4890.000000 6150.000000 1800.000000 108.6kg 126.3kg £720.00
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
LD265/266 745mm 3 220mm 120mm 420.000000 123.000000 813.000000 1035.000000 303.000000 15.5kg 18.3kg £90.00
LD265/266 745mm 4 282mm 120mm 560.000000 164.000000 1084.000000 1380.000000 404.000000 20.6kg 24.4kg £120.00
LD265/266 745mm 5 344mm 120mm 700.000000 205.000000 1355.000000 1725.000000 505.000000 25.8kg 30.5kg £150.00
LD265/266 745mm 6 406mm 120mm 840.000000 246.000000 1626.000000 2070.000000 606.000000 31.0kg 36.6kg £180.00
LD265/266 745mm 7 468mm 120mm 980.000000 287.000000 1897.000000 2415.000000 707.000000 36.1kg 42.7kg £210.00
LD265/266 745mm 8 530mm 120mm 1120.000000 328.000000 2168.000000 2760.000000 808.000000 41.3kg 48.8kg £240.00
LD265/266 745mm 9 592mm 120mm 1260.000000 369.000000 2439.000000 3105.000000 909.000000 46.4kg 54.9kg £270.00
LD265/266 745mm 10 654mm 120mm 1400.000000 410.000000 2710.000000 3450.000000 1010.000000 51.6kg 61.0kg £300.00
LD265/266 745mm 11 716mm 120mm 1540.000000 451.000000 2981.000000 3795.000000 1111.000000 56.8kg 67.1kg £330.00
LD265/266 745mm 12 778mm 120mm 1680.000000 492.000000 3252.000000 4140.000000 1212.000000 61.9kg 73.2kg £360.00
LD265/266 745mm 13 840mm 120mm 1820.000000 533.000000 3523.000000 4485.000000 1313.000000 67.1kg 79.3kg £390.00
LD265/266 745mm 14 902mm 120mm 1960.000000 574.000000 3794.000000 4830.000000 1414.000000 72.2kg 85.4kg £420.00
LD265/266 745mm 15 964mm 120mm 2100.000000 615.000000 4065.000000 5175.000000 1515.000000 77.4kg 91.5kg £450.00
LD265/266 745mm 16 1026mm 120mm 2240.000000 656.000000 4336.000000 5520.000000 1616.000000 82.6kg 97.6kg £480.00
LD265/266 745mm 17 1088mm 120mm 2380.000000 697.000000 4607.000000 5865.000000 1717.000000 87.7kg 103.7kg £510.00
LD265/266 745mm 18 1150mm 120mm 2520.000000 738.000000 4878.000000 6210.000000 1818.000000 92.9kg 109.8kg £540.00
LD265/266 745mm 19 1212mm 120mm 2660.000000 779.000000 5149.000000 6555.000000 1919.000000 98.0kg 115.9kg £570.00
LD265/266 745mm 20 1274mm 120mm 2800.000000 820.000000 5420.000000 6900.000000 2020.000000 103.2kg 122.0kg £600.00
LD265/266 745mm 21 1336mm 120mm 2940.000000 861.000000 5691.000000 7245.000000 2121.000000 108.4kg 128.1kg £630.00
LD265/266 745mm 22 1398mm 120mm 3080.000000 902.000000 5962.000000 7590.000000 2222.000000 113.5kg 134.2kg £660.00
LD265/266 745mm 23 1460mm 120mm 3220.000000 943.000000 6233.000000 7935.000000 2323.000000 118.7kg 140.3kg £690.00
LD265/266 745mm 24 1522mm 120mm 3360.000000 984.000000 6504.000000 8280.000000 2424.000000 123.8kg 146.4kg £720.00
LD265/266 745mm 25 1584mm 120mm 3500.000000 1025.000000 6775.000000 8625.000000 2525.000000 129.0kg 152.5kg £750.00
LD265/266 745mm 26 1646mm 120mm 3640.000000 1066.000000 7046.000000 8970.000000 2626.000000 134.2kg 158.6kg £780.00
LD265/266 745mm 27 1708mm 120mm 3780.000000 1107.000000 7317.000000 9315.000000 2727.000000 139.3kg 164.7kg £810.00
LD265/266 745mm 28 1770mm 120mm 3920.000000 1148.000000 7588.000000 9660.000000 2828.000000 144.5kg 170.8kg £840.00
LD265/266 745mm 29 1832mm 120mm 4060.000000 1189.000000 7859.000000 10005.000000 2929.000000 149.6kg 176.9kg £870.00
LD265/266 745mm 30 1894mm 120mm 4200.000000 1230.000000 8130.000000 10350.000000 3030.000000 154.8kg 183.0kg £900.00
