narrow Eton cast iron radiator

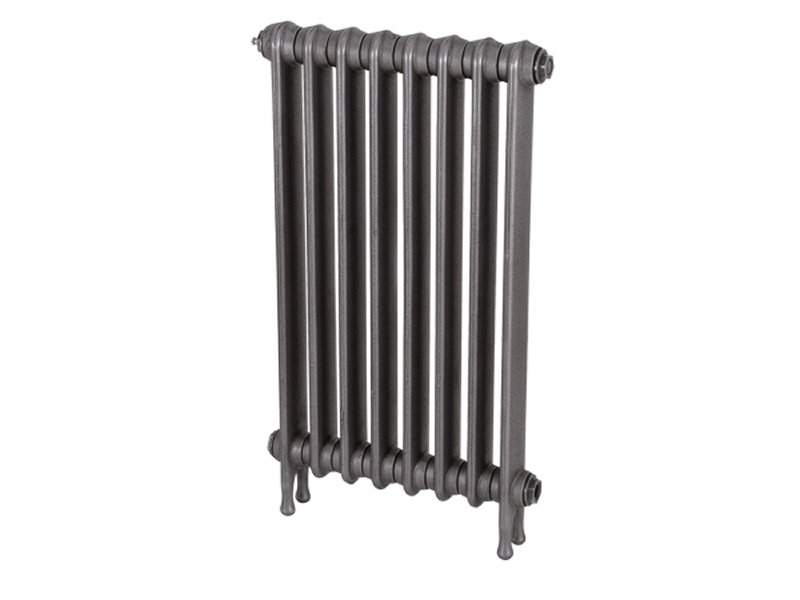

Narrow Eton Cast Iron Radiator

The design is a narrow version of our classic Eton radiators. Modest, consisting of straight edges and a curved top. Naturally elegant - a high quality classically designed cast iron radiator with integral legs.

Available in 1 heights: 765mm

From £24.58 per section. (£29.50 inc. VAT)

Currently Out Of Stock

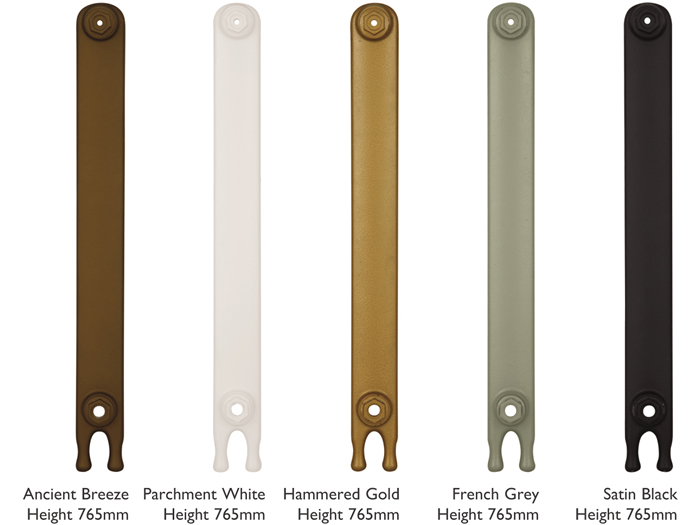

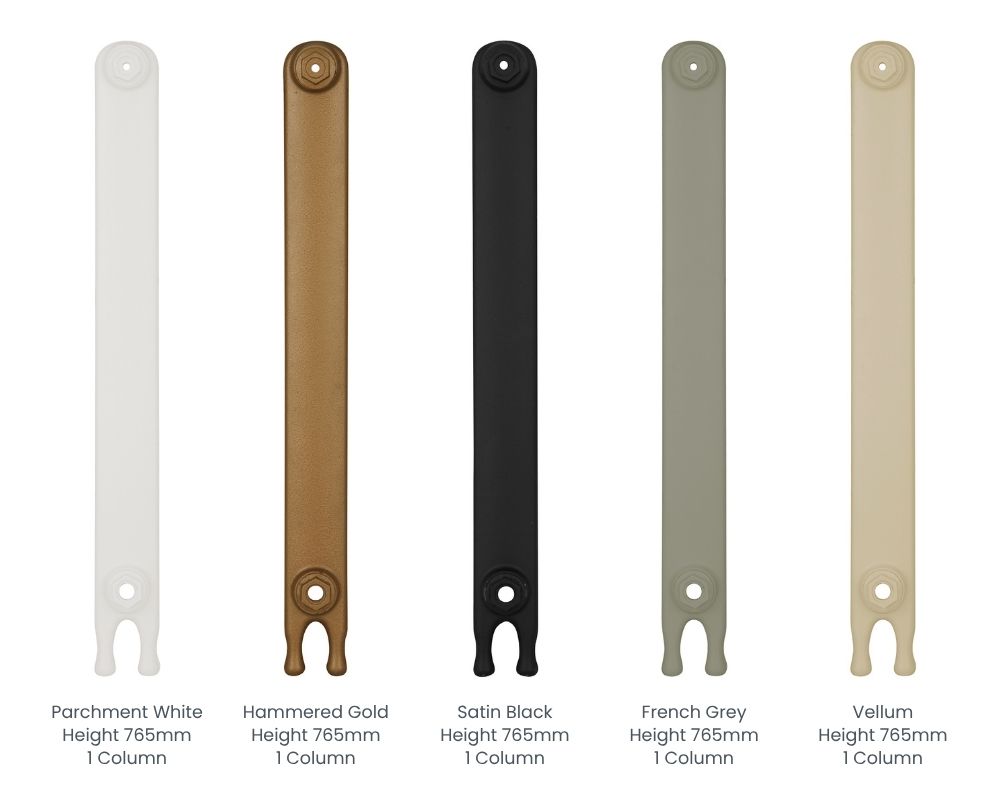

Narrow Eton radiator sections various painted finishes

Narrow Eton radiator sections various painted finishes

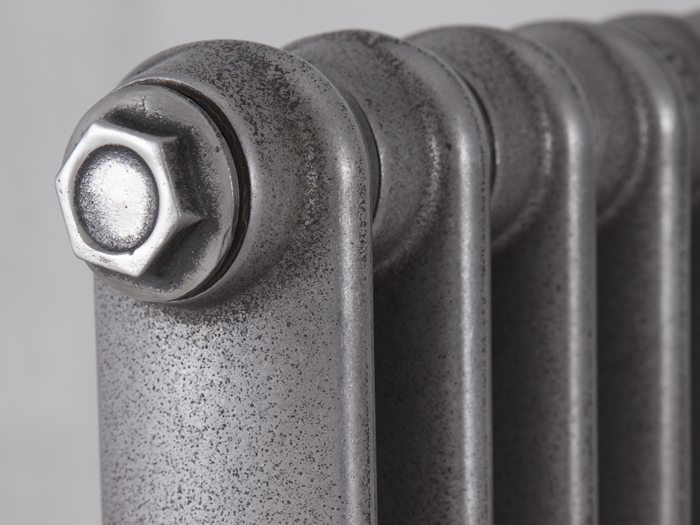

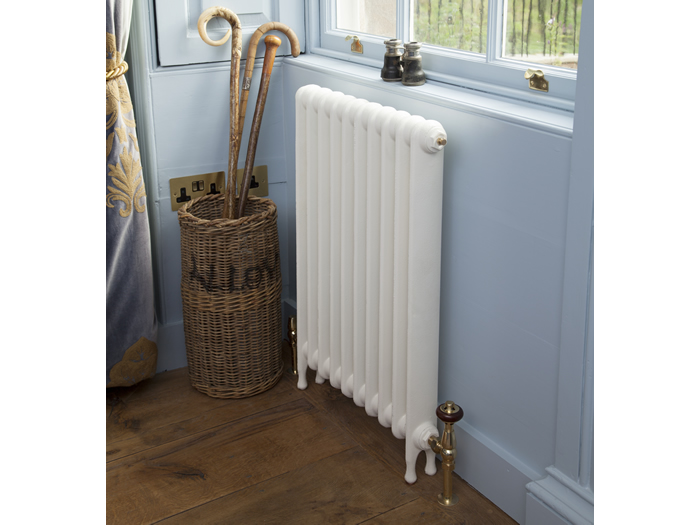

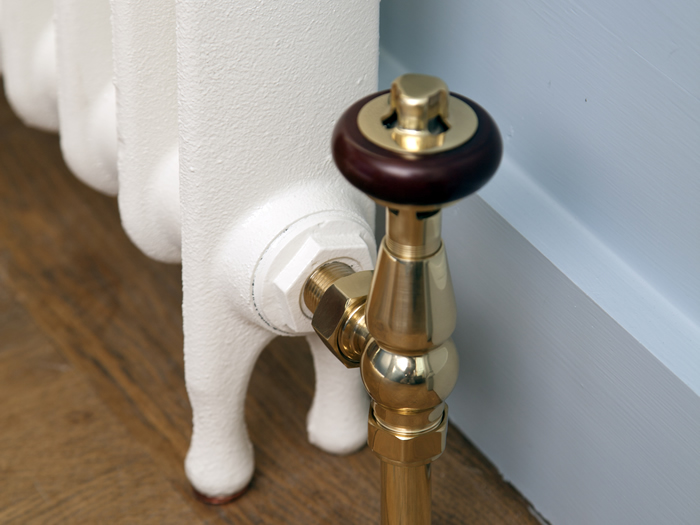

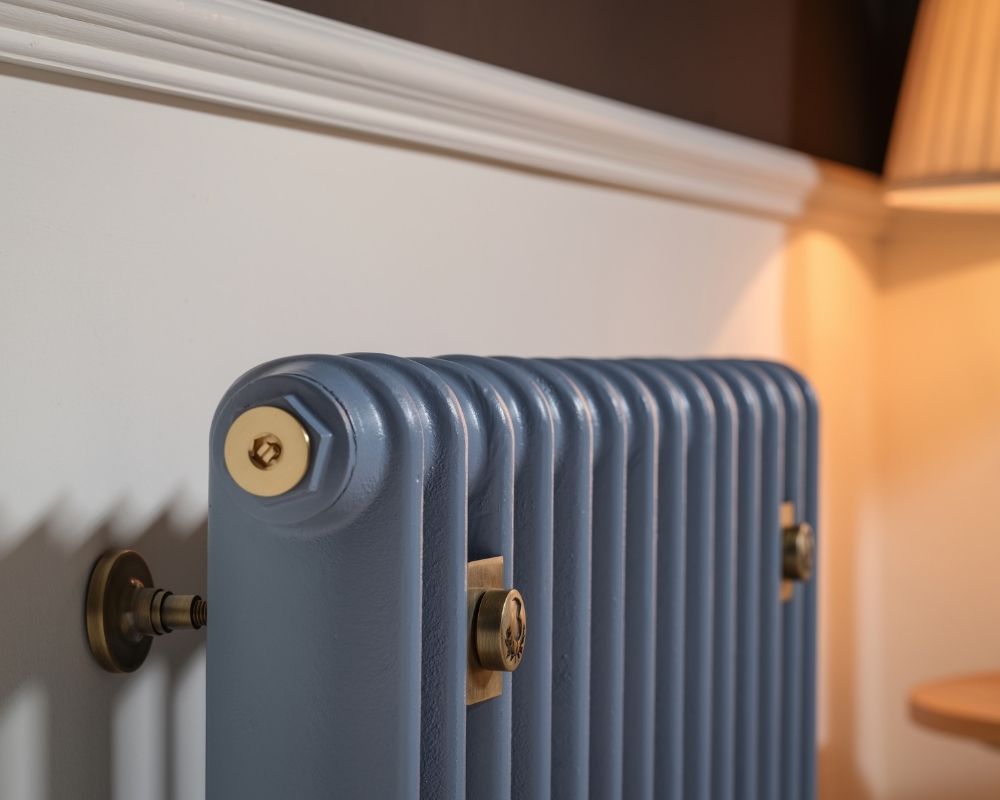

Narrow Eton radiator sections various painted finishes Narrow Eton cast iron radiator painted in parchment white Narrow Eton satin polished cast iron radiator Narrow eton cast iron radiator fitted with brass radiator valve

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • Hand Burnished
  • Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Ancient Breeze
  • Buttermilk
  • Foundry Grey
  • French Grey
  • Graphite Grey
  • Hammered Bronze
  • Hammered Gold
  • Parchment White
  • Primer
  • Satin Black
  • Vellum
  • Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

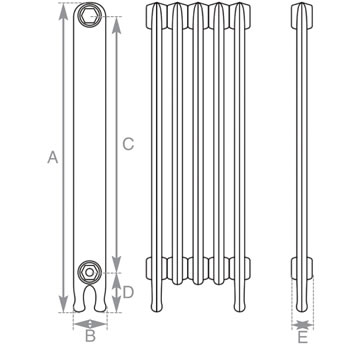

narrow eton radiator measurements

* per cast iron radiator section.

765 80 603 100 50 173 51 4.7kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator


Narrow Eton Radiator Range Information Table

Model No. Height Sections Width/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 50°)
Watts
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(ex. VAT in Primer)
Build Radiator
JJC053/054 765mm 3 184mm 80mm 519 153 654 192 14.1kg 15.9kg £73.74
JJC053/054 765mm 4 234mm 80mm 692 204 872 256 18.8kg 21.2kg £98.32
JJC053/054 765mm 5 284mm 80mm 865 255 1090 320 23.5kg 26.5kg £122.90
JJC053/054 765mm 6 334mm 80mm 1038 306 1308 384 28.2kg 31.8kg £147.48
JJC053/054 765mm 7 384mm 80mm 1211 357 1526 448 32.9kg 37.1kg £172.06
JJC053/054 765mm 8 434mm 80mm 1384 408 1744 512 37.6kg 42.4kg £196.64
JJC053/054 765mm 9 484mm 80mm 1557 459 1962 576 42.3kg 47.7kg £221.22
JJC053/054 765mm 10 534mm 80mm 1730 510 2180 640 47.0kg 53.0kg £245.80
JJC053/054 765mm 11 584mm 80mm 1903 561 2398 704 51.7kg 58.3kg £270.38
JJC053/054 765mm 12 634mm 80mm 2076 612 2616 768 56.4kg 63.6kg £294.96
JJC053/054 765mm 13 684mm 80mm 2249 663 2834 832 61.1kg 68.9kg £319.54
JJC053/054 765mm 14 734mm 80mm 2422 714 3052 896 65.8kg 74.2kg £344.12
JJC053/054 765mm 15 784mm 80mm 2595 765 3270 960 70.5kg 79.5kg £368.70
JJC053/054 765mm 16 834mm 80mm 2768 816 3488 1024 75.2kg 84.8kg £393.28
JJC053/054 765mm 17 884mm 80mm 2941 867 3706 1088 79.9kg 90.1kg £417.86
JJC053/054 765mm 18 934mm 80mm 3114 918 3924 1152 84.6kg 95.4kg £442.44
JJC053/054 765mm 19 984mm 80mm 3287 969 4142 1216 89.3kg 100.7kg £467.02
JJC053/054 765mm 20 1034mm 80mm 3460 1020 4360 1280 94.0kg 106.0kg £491.60
JJC053/054 765mm 21 1084mm 80mm 3633 1071 4578 1344 98.7kg 111.3kg £516.18
JJC053/054 765mm 22 1134mm 80mm 3806 1122 4796 1408 103.4kg 116.6kg £540.76
JJC053/054 765mm 23 1184mm 80mm 3979 1173 5014 1472 108.1kg 121.9kg £565.34
JJC053/054 765mm 24 1234mm 80mm 4152 1224 5232 1536 112.8kg 127.2kg £589.92
JJC053/054 765mm 25 1284mm 80mm 4325 1275 5450 1600 117.5kg 132.5kg £614.50
JJC053/054 765mm 26 1334mm 80mm 4498 1326 5668 1664 122.2kg 137.8kg £639.08
JJC053/054 765mm 27 1384mm 80mm 4671 1377 5886 1728 126.9kg 143.1kg £663.66
JJC053/054 765mm 28 1434mm 80mm 4844 1428 6104 1792 131.6kg 148.4kg £688.24
JJC053/054 765mm 29 1484mm 80mm 5017 1479 6322 1856 136.3kg 153.7kg £712.82
JJC053/054 765mm 30 1534mm 80mm 5190 1530 6540 1920 141.0kg 159.0kg £737.40
