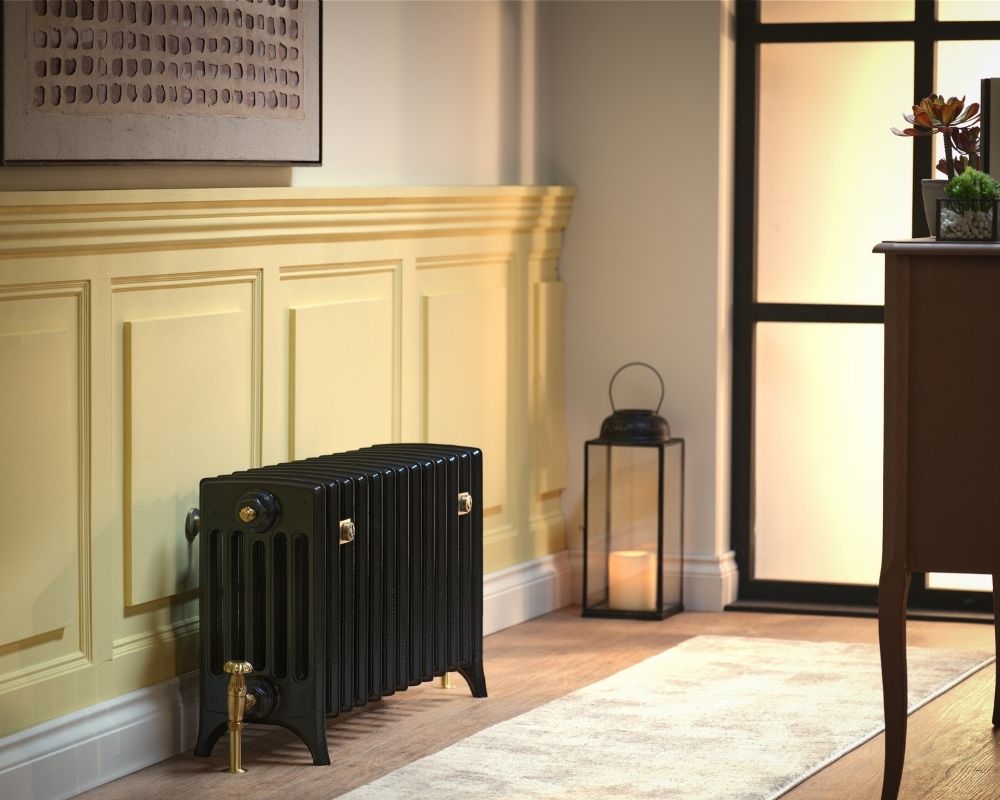

Rathmell 6 Column cast iron radiator

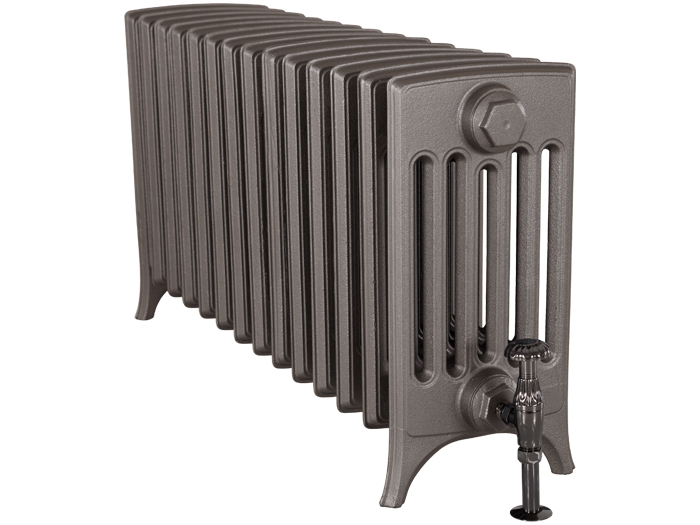

Rathmell 6 Column Cast Iron Radiator

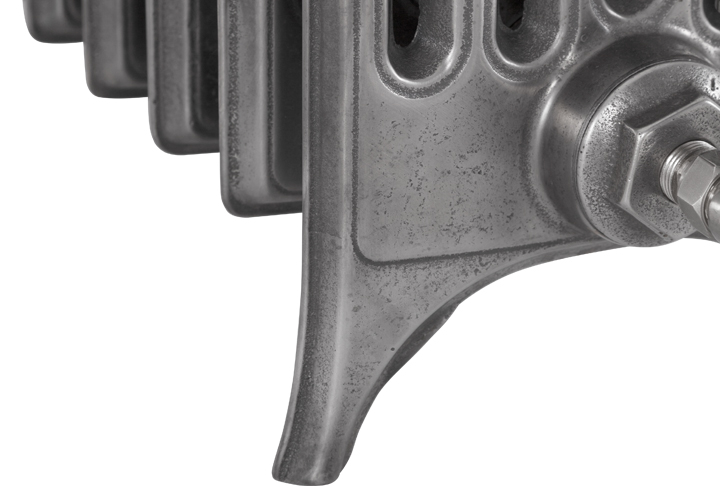

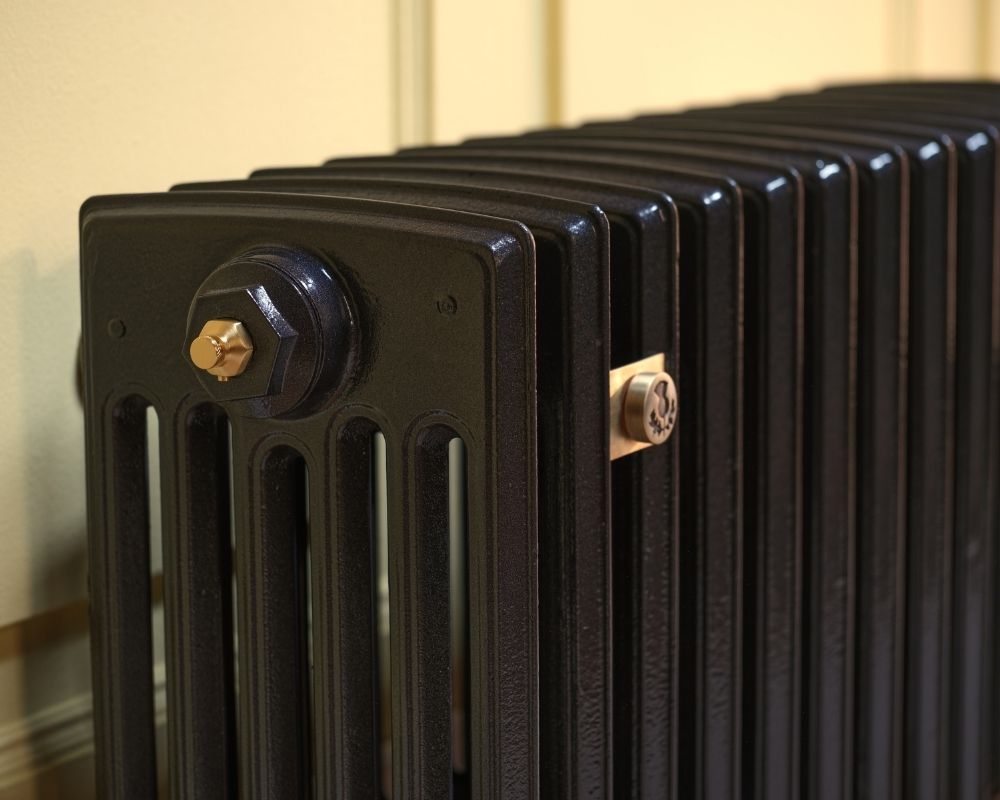

This stylish 6 column cast iron radiator design, features a curved top and crisp lines. The Rathmell cast iron radiator feet are seamlessly incorporated and delicately shaped with an inner arch. These combine to give this radiator a more contemporary feel than the traditional 6 column Victorian model.

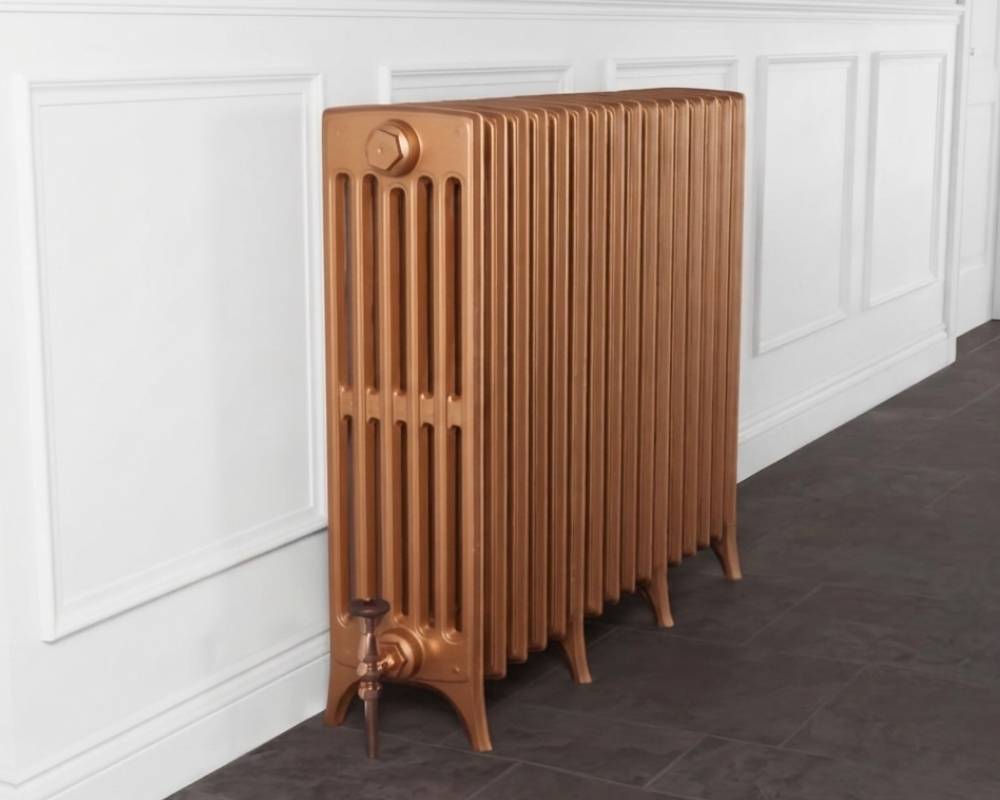

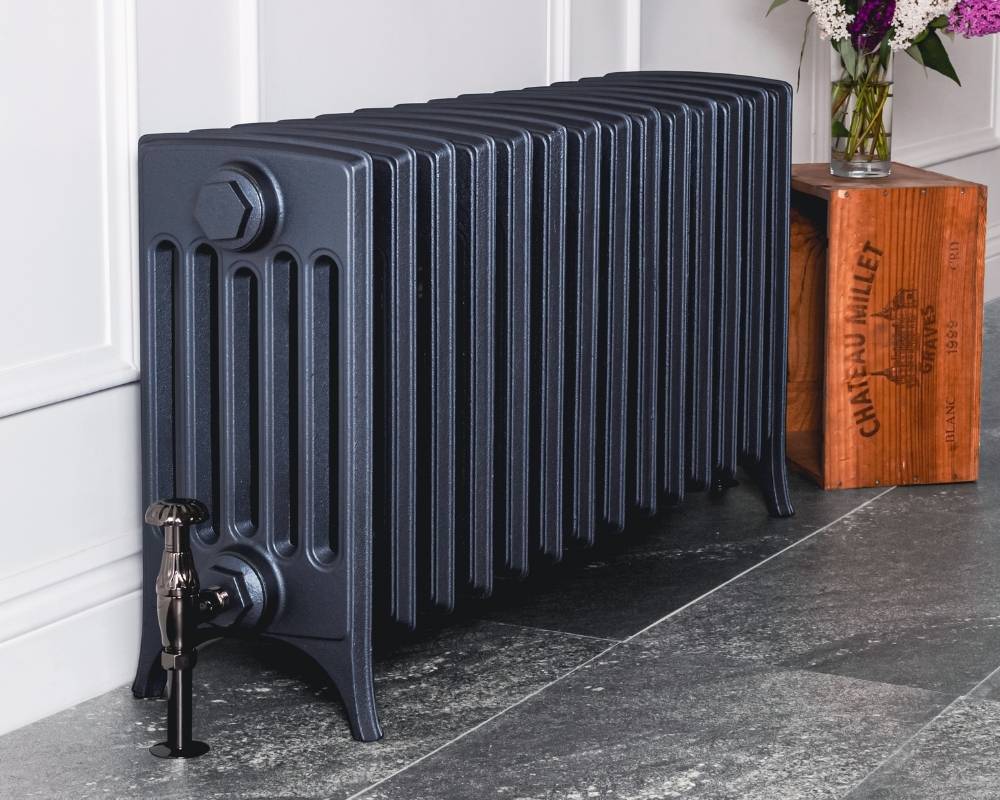

Available in 2 heights: 460mm, 810mm

From £44.58 per section. (£53.50 inc. VAT)

OR

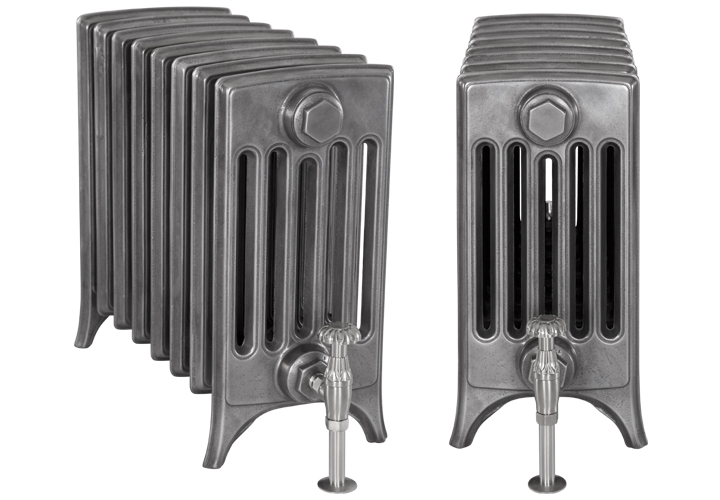

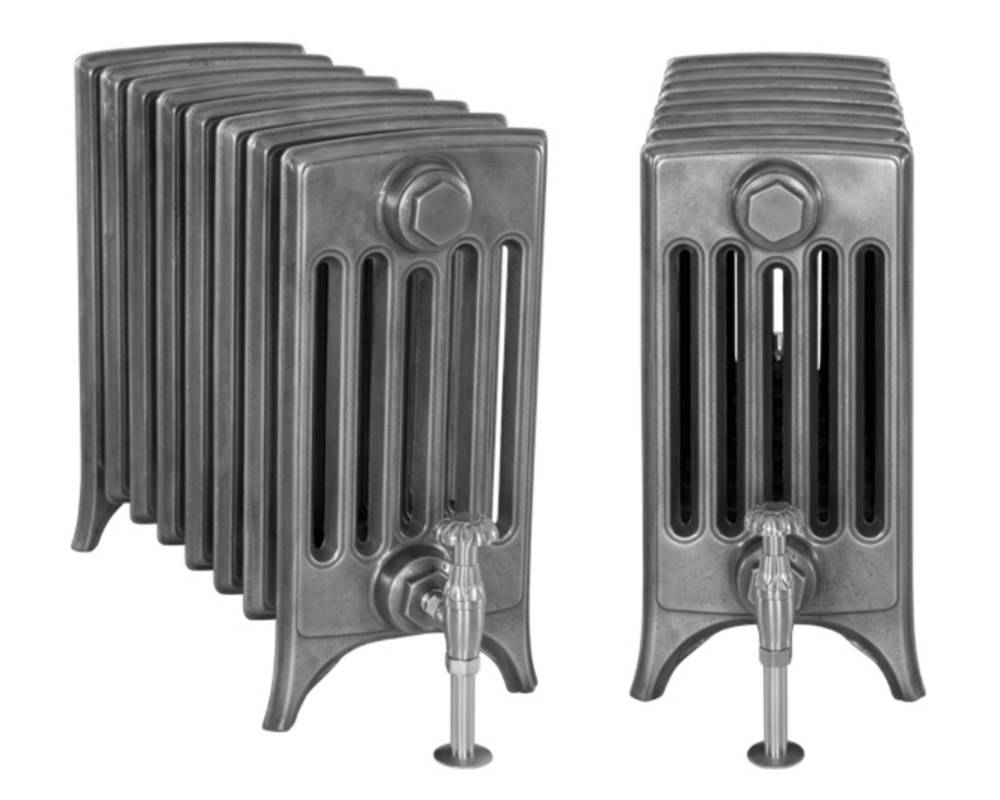

Rathmell 6 Column Satin Nickel

Rathmell 6 Column Satin Nickel

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

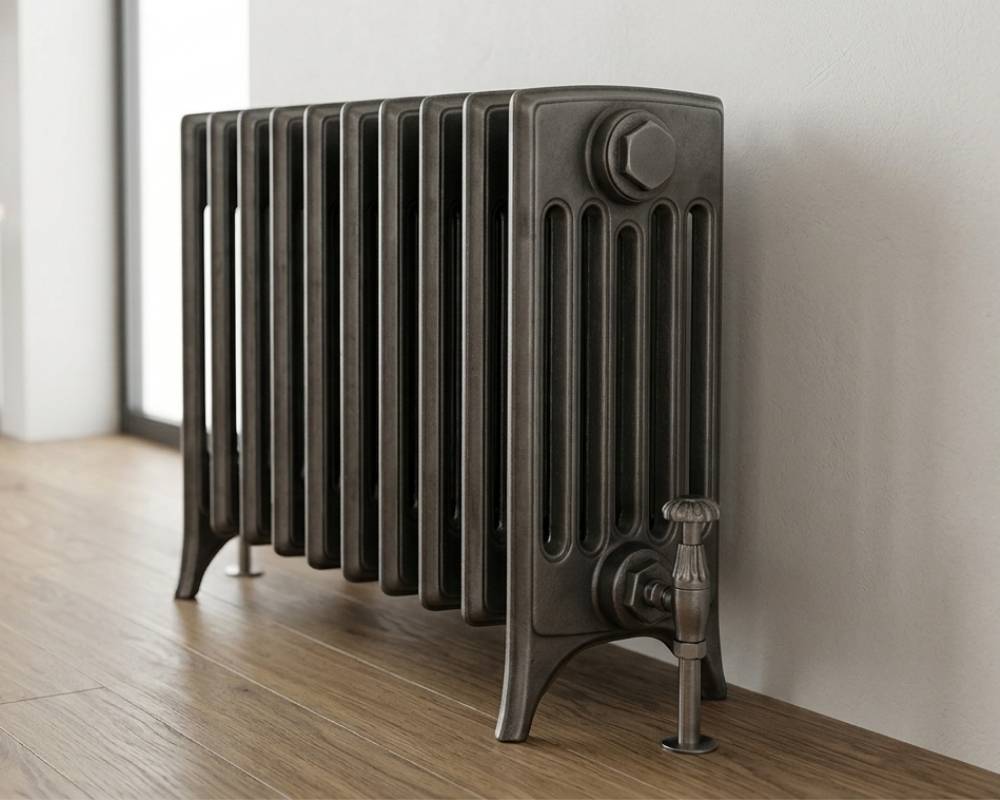

  • 145 5 End Hand Burnished
  • 145 5 End Hand Burnished + Lacquer

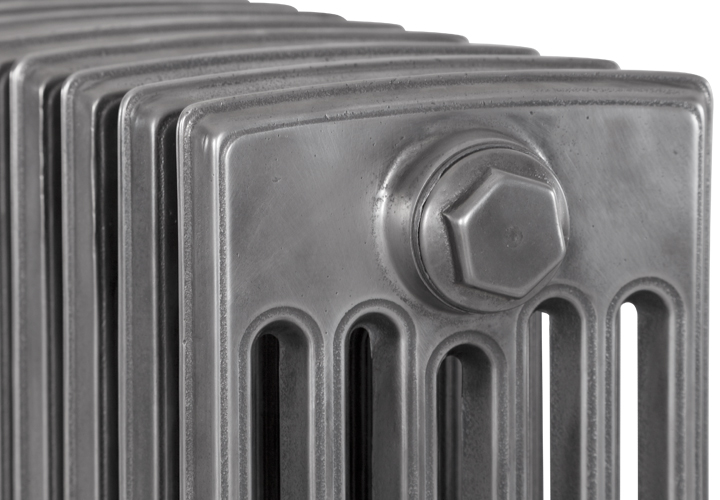

  • 145 5 End Satin Polished

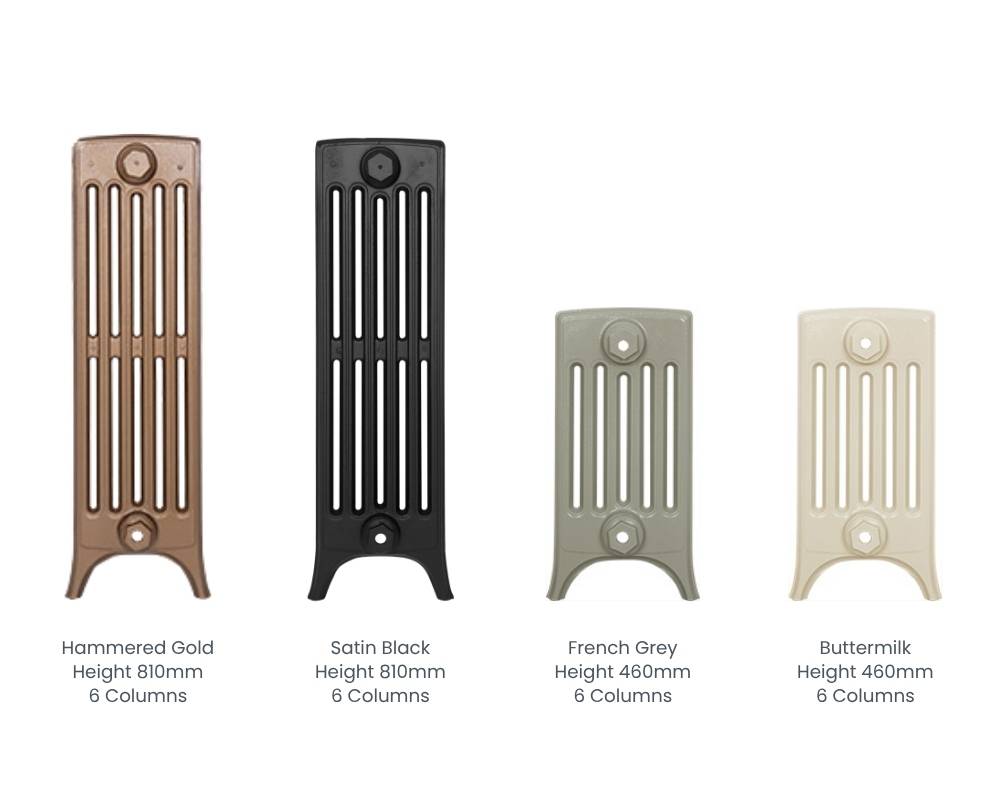

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • 145 1 End Ancient Breeze
  • 145 2 End Buttermilk
  • 145 3 End Foundry Grey
  • 145 4 End French Grey

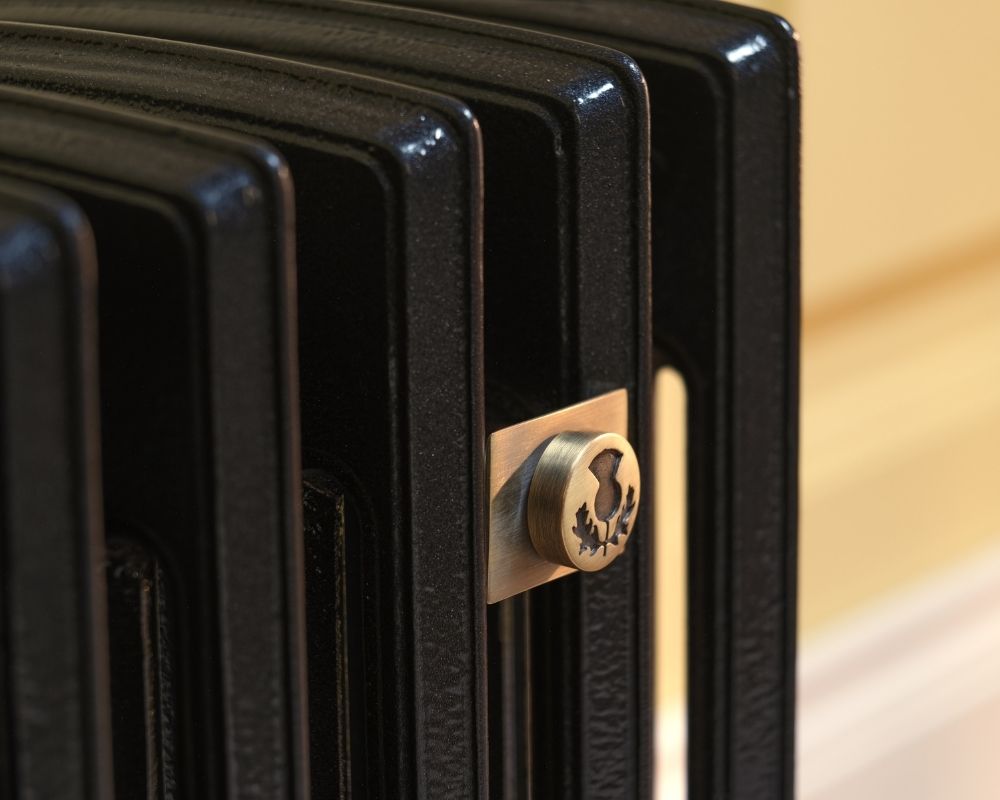

  • 145 6 End Graphite Grey
  • 145 7 End Hammered Bronze
  • 145 8 End Hammered Gold
  • 145 9 End Parchment White
  • 145 10 End Primer
  • 145 6 End Satin Black
  • 145 9 End Vellum
  • 145 13 End Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

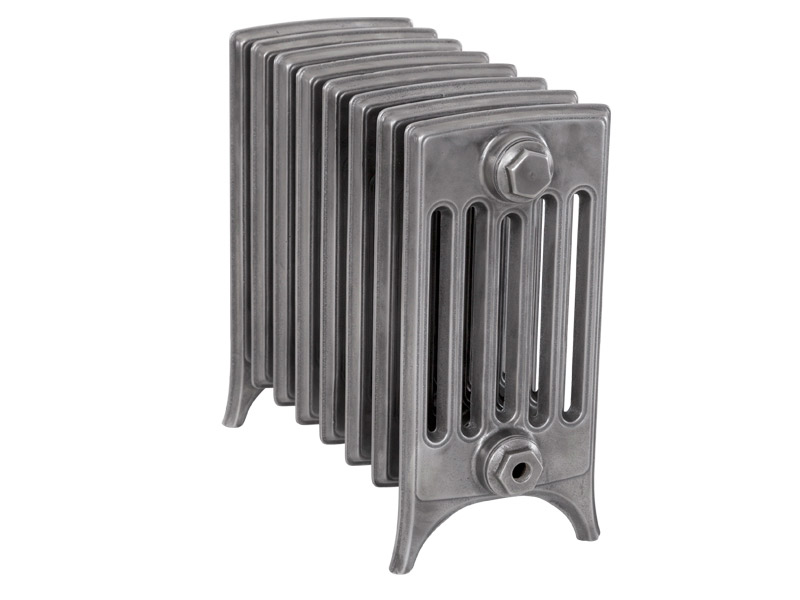

Rathmell 6 Column Cast Iron Radiator 800 01

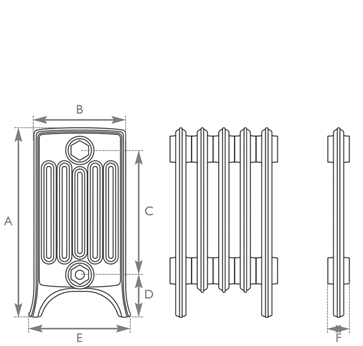

Rathmell 6 Column Measurements

* per cast iron radiator section.

460 220 300 105 240 63 280 82 5.8kg
810 230 640 120 260 63 509 149 10.93kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator


Rathmell 6 Column Radiator Range Information Table

Model No. Height Width
/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 50°)
Price From
(ex. VAT in Primer)
Build Radiator
TBK076/077 460mm 223mm 240mm 840 £133.74
TBK076/077 460mm 286mm 240mm 1120 £178.32
TBK076/077 460mm 349mm 240mm 1400 £222.90
TBK076/077 460mm 412mm 240mm 1680 £267.48
TBK076/077 460mm 475mm 240mm 1960 £312.06
TBK076/077 460mm 538mm 240mm 2240 £356.64
TBK076/077 460mm 601mm 240mm 2520 £401.22
TBK076/077 460mm 664mm 240mm 2800 £445.80
TBK076/077 460mm 727mm 240mm 3080 £490.38
TBK076/077 460mm 790mm 240mm 3360 £534.96
TBK076/077 460mm 853mm 240mm 3640 £579.54
TBK076/077 460mm 916mm 240mm 3920 £624.12
TBK076/077 460mm 979mm 240mm 4200 £668.70
TBK076/077 460mm 1042mm 240mm 4480 £713.28
TBK076/077 460mm 1105mm 240mm 4760 £757.86
TBK076/077 460mm 1168mm 240mm 5040 £802.44
TBK076/077 460mm 1231mm 240mm 5320 £847.02
TBK076/077 460mm 1294mm 240mm 5600 £891.60
TBK076/077 460mm 1357mm 240mm 5880 £936.18
TBK076/077 460mm 1420mm 240mm 6160 £980.76
TBK076/077 460mm 1483mm 240mm 6440 £1025.34
TBK076/077 460mm 1546mm 240mm 6720 £1069.92
TBK076/077 460mm 1609mm 240mm 7000 £1114.50
TBK076/077 460mm 1672mm 240mm 7280 £1159.08
TBK076/077 460mm 1735mm 240mm 7560 £1203.66
TBK076/077 460mm 1798mm 240mm 7840 £1248.24
TBK076/077 460mm 1861mm 240mm 8120 £1292.82
TBK076/077 460mm 1924mm 240mm 8400 £1337.40
Model No. Height Width
/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 50°)
Price From
(ex. VAT in Primer)
Build Radiator
TBK078/079 810mm 223mm 260mm 1527 £216.24
TBK078/079 810mm 286mm 260mm 2036 £288.32
TBK078/079 810mm 349mm 260mm 2545 £360.40
TBK078/079 810mm 412mm 260mm 3054 £432.48
TBK078/079 810mm 475mm 260mm 3563 £504.56
TBK078/079 810mm 538mm 260mm 4072 £576.64
TBK078/079 810mm 601mm 260mm 4581 £648.72
TBK078/079 810mm 664mm 260mm 5090 £720.80
TBK078/079 810mm 727mm 260mm 5599 £792.88
TBK078/079 810mm 790mm 260mm 6108 £864.96
TBK078/079 810mm 853mm 260mm 6617 £937.04
TBK078/079 810mm 916mm 260mm 7126 £1009.12
TBK078/079 810mm 979mm 260mm 7635 £1081.20
TBK078/079 810mm 1042mm 260mm 8144 £1153.28
TBK078/079 810mm 1105mm 260mm 8653 £1225.36
TBK078/079 810mm 1168mm 260mm 9162 £1297.44
TBK078/079 810mm 1231mm 260mm 9671 £1369.52
TBK078/079 810mm 1294mm 260mm 10180 £1441.60
TBK078/079 810mm 1357mm 260mm 10689 £1513.68
TBK078/079 810mm 1420mm 260mm 11198 £1585.76
TBK078/079 810mm 1483mm 260mm 11707 £1657.84
TBK078/079 810mm 1546mm 260mm 12216 £1729.92
TBK078/079 810mm 1609mm 260mm 12725 £1802.00
TBK078/079 810mm 1672mm 260mm 13234 £1874.08
TBK078/079 810mm 1735mm 260mm 13743 £1946.16
TBK078/079 810mm 1798mm 260mm 14252 £2018.24
TBK078/079 810mm 1861mm 260mm 14761 £2090.32
TBK078/079 810mm 1924mm 260mm 15270 £2162.40
