Rathmell 4 column cast iron radiator

Rathmell 4 Column Cast Iron Radiator

This stylish 4 column cast iron radiator design, features a curved top and crisp lines. The Rathmell cast iron radiator feet are seamlessly incorporated and delicately shaped with an inner arch. These combine to give this radiator a more contemporary feel than the traditional 4 column Victorian model.

Available in 3 heights: 460mm, 665mm, 810mm

From £27.50 per section. (£33.00 inc. VAT)

OR

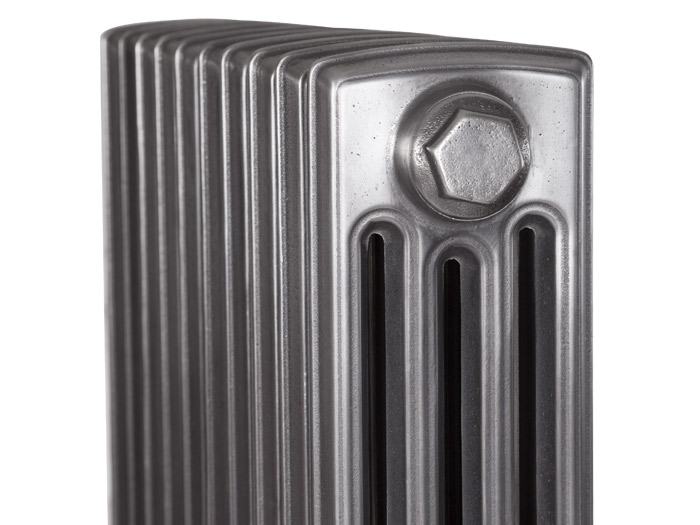

Rathmell Cast Iron Radiator Hand Burnished Detail

Rathmell Cast Iron Radiator Hand Burnished Detail

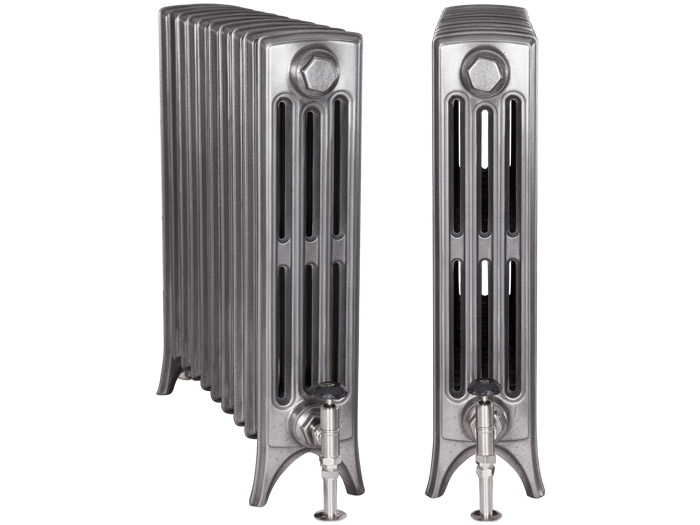

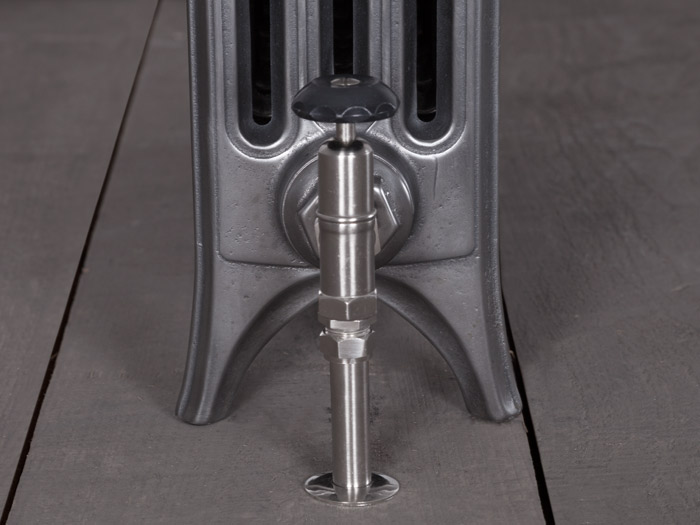

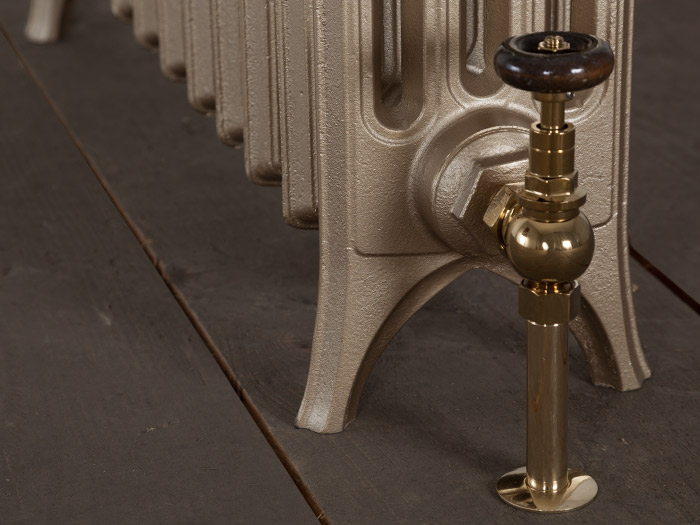

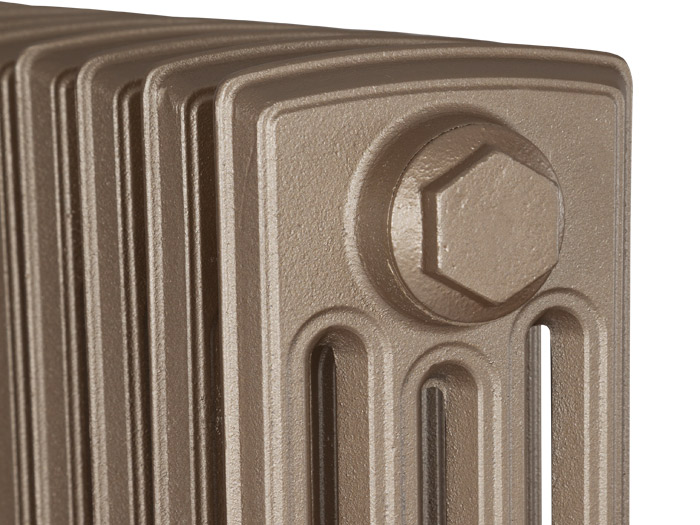

Rathmell Cast Iron Radiator Hand Burnished Detail Rathmell Cast Iron Radiator Hand Burnished Legs Rathmell Cast Iron Radiator Hand Burnished Rathmell Cast Iron Radiator Roberson Renaissance Gold Rathmell Cast Iron Radiator Roberson Renaissance Gold Detail

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • Hand Burnished
  • Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Ancient Breeze
  • Buttermilk
  • Foundry Grey
  • French Grey
  • Graphite Grey
  • Hammered Bronze
  • Hammered Gold
  • Parchment White
  • Primer
  • Satin Black
  • Vellum
  • Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

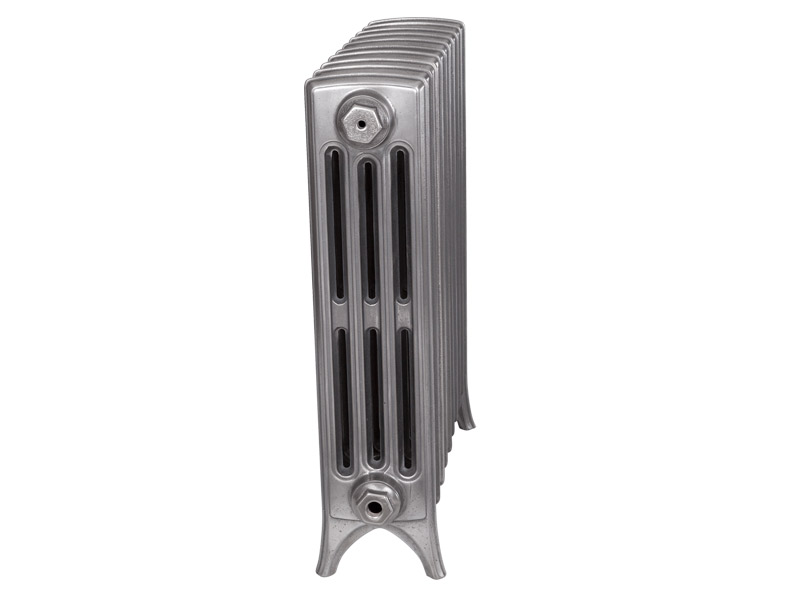

Rathmell 4 Column Cast Iron Radiator 800 01

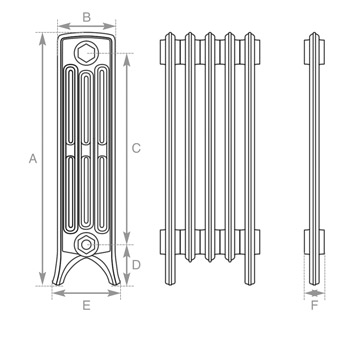

Rathmell 4 Column Measurements

* per cast iron radiator section.

460 160 300 110 180 63 201 59 4.2kg
665 150 498 112 170 63 289 85 5.7kg
810 150 640 115 180 62 350 102 7.35kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator


Rathmell 4 Column Radiator Range Information Table

Model No. Height Sections Width/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 50°)
Watts
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(ex. VAT in Primer)
Build Radiator
TBK072/073 460mm 3 223mm 180mm 603 177 756 222 12.6kg 14.7kg £82.50
TBK072/073 460mm 4 286mm 180mm 804 236 1008 296 16.8kg 19.6kg £110.00
TBK072/073 460mm 5 349mm 180mm 1005 295 1260 370 21.0kg 24.5kg £137.50
TBK072/073 460mm 6 412mm 180mm 1206 354 1512 444 25.2kg 29.4kg £165.00
TBK072/073 460mm 7 475mm 180mm 1407 413 1764 518 29.4kg 34.3kg £192.50
TBK072/073 460mm 8 538mm 180mm 1608 472 2016 592 33.6kg 39.2kg £220.00
TBK072/073 460mm 9 601mm 180mm 1809 531 2268 666 37.8kg 44.1kg £247.50
TBK072/073 460mm 10 664mm 180mm 2010 590 2520 740 42.0kg 49.0kg £275.00
TBK072/073 460mm 11 727mm 180mm 2211 649 2772 814 46.2kg 53.9kg £302.50
TBK072/073 460mm 12 790mm 180mm 2412 708 3024 888 50.4kg 58.8kg £330.00
TBK072/073 460mm 13 853mm 180mm 2613 767 3276 962 54.6kg 63.7kg £357.50
TBK072/073 460mm 14 916mm 180mm 2814 826 3528 1036 58.8kg 68.6kg £385.00
TBK072/073 460mm 15 979mm 180mm 3015 885 3780 1110 63.0kg 73.5kg £412.50
TBK072/073 460mm 16 1042mm 180mm 3216 944 4032 1184 67.2kg 78.4kg £440.00
TBK072/073 460mm 17 1105mm 180mm 3417 1003 4284 1258 71.4kg 83.3kg £467.50
TBK072/073 460mm 18 1168mm 180mm 3618 1062 4536 1332 75.6kg 88.2kg £495.00
TBK072/073 460mm 19 1231mm 180mm 3819 1121 4788 1406 79.8kg 93.1kg £522.50
TBK072/073 460mm 20 1294mm 180mm 4020 1180 5040 1480 84.0kg 98.0kg £550.00
TBK072/073 460mm 21 1357mm 180mm 4221 1239 5292 1554 88.2kg 102.9kg £577.50
TBK072/073 460mm 22 1420mm 180mm 4422 1298 5544 1628 92.4kg 107.8kg £605.00
TBK072/073 460mm 23 1483mm 180mm 4623 1357 5796 1702 96.6kg 112.7kg £632.50
TBK072/073 460mm 24 1546mm 180mm 4824 1416 6048 1776 100.8kg 117.6kg £660.00
TBK072/073 460mm 25 1609mm 180mm 5025 1475 6300 1850 105.0kg 122.5kg £687.50
TBK072/073 460mm 26 1672mm 180mm 5226 1534 6552 1924 109.2kg 127.4kg £715.00
TBK072/073 460mm 27 1735mm 180mm 5427 1593 6804 1998 113.4kg 132.3kg £742.50
TBK072/073 460mm 28 1798mm 180mm 5628 1652 7056 2072 117.6kg 137.2kg £770.00
TBK072/073 460mm 29 1861mm 180mm 5829 1711 7308 2146 121.8kg 142.1kg £797.50
TBK072/073 460mm 30 1924mm 180mm 6030 1770 7560 2220 126.0kg 147.0kg £825.00
Model No. Height Sections Width/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 50°)
Watts
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(ex. VAT in Primer)
Build Radiator
TBK067/068 665mm 3 223mm 170mm 867 255 1098 321 17.1kg 19.8kg £91.26
TBK067/068 665mm 4 286mm 170mm 1156 340 1464 428 22.8kg 26.4kg £121.68
TBK067/068 665mm 5 349mm 170mm 1445 425 1830 535 28.5kg 33.0kg £152.10
TBK067/068 665mm 6 412mm 170mm 1734 510 2196 642 34.2kg 39.6kg £182.52
TBK067/068 665mm 7 475mm 170mm 2023 595 2562 749 39.9kg 46.2kg £212.94
TBK067/068 665mm 8 538mm 170mm 2312 680 2928 856 45.6kg 52.8kg £243.36
TBK067/068 665mm 9 601mm 170mm 2601 765 3294 963 51.3kg 59.4kg £273.78
TBK067/068 665mm 10 664mm 170mm 2890 850 3660 1070 57.0kg 66.0kg £304.20
TBK067/068 665mm 11 727mm 170mm 3179 935 4026 1177 62.7kg 72.6kg £334.62
TBK067/068 665mm 12 790mm 170mm 3468 1020 4392 1284 68.4kg 79.2kg £365.04
TBK067/068 665mm 13 853mm 170mm 3757 1105 4758 1391 74.1kg 85.8kg £395.46
TBK067/068 665mm 14 916mm 170mm 4046 1190 5124 1498 79.8kg 92.4kg £425.88
TBK067/068 665mm 15 979mm 170mm 4335 1275 5490 1605 85.5kg 99.0kg £456.30
TBK067/068 665mm 16 1042mm 170mm 4624 1360 5856 1712 91.2kg 105.6kg £486.72
TBK067/068 665mm 17 1105mm 170mm 4913 1445 6222 1819 96.9kg 112.2kg £517.14
TBK067/068 665mm 18 1168mm 170mm 5202 1530 6588 1926 102.6kg 118.8kg £547.56
TBK067/068 665mm 19 1231mm 170mm 5491 1615 6954 2033 108.3kg 125.4kg £577.98
TBK067/068 665mm 20 1294mm 170mm 5780 1700 7320 2140 114.0kg 132.0kg £608.40
TBK067/068 665mm 21 1357mm 170mm 6069 1785 7686 2247 119.7kg 138.6kg £638.82
TBK067/068 665mm 22 1420mm 170mm 6358 1870 8052 2354 125.4kg 145.2kg £669.24
TBK067/068 665mm 23 1483mm 170mm 6647 1955 8418 2461 131.1kg 151.8kg £699.66
TBK067/068 665mm 24 1546mm 170mm 6936 2040 8784 2568 136.8kg 158.4kg £730.08
TBK067/068 665mm 25 1609mm 170mm 7225 2125 9150 2675 142.5kg 165.0kg £760.50
TBK067/068 665mm 26 1672mm 170mm 7514 2210 9516 2782 148.2kg 171.6kg £790.92
TBK067/068 665mm 27 1735mm 170mm 7803 2295 9882 2889 153.9kg 178.2kg £821.34
TBK067/068 665mm 28 1798mm 170mm 8092 2380 10248 2996 159.6kg 184.8kg £851.76
TBK067/068 665mm 29 1861mm 170mm 8381 2465 10614 3103 165.3kg 191.4kg £882.18
TBK067/068 665mm 30 1924mm 170mm 8670 2550 10980 3210 171.0kg 198.0kg £912.60
Model No. Height Sections Width/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 50°)
Watts
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(ex. VAT in Primer)
Build Radiator
TBK074/075 810mm 3 220mm 180mm 1050 306 1329 390 22.1kg 25.6kg £117.51
TBK074/075 810mm 4 282mm 180mm 1400 408 1772 520 29.4kg 34.1kg £156.68
TBK074/075 810mm 5 344mm 180mm 1750 510 2215 650 36.8kg 42.6kg £195.85
TBK074/075 810mm 6 406mm 180mm 2100 612 2658 780 44.1kg 51.1kg £235.02
TBK074/075 810mm 7 468mm 180mm 2450 714 3101 910 51.5kg 59.6kg £274.19
TBK074/075 810mm 8 530mm 180mm 2800 816 3544 1040 58.8kg 68.2kg £313.36
TBK074/075 810mm 9 592mm 180mm 3150 918 3987 1170 66.2kg 76.7kg £352.53
TBK074/075 810mm 10 654mm 180mm 3500 1020 4430 1300 73.5kg 85.2kg £391.70
TBK074/075 810mm 11 716mm 180mm 3850 1122 4873 1430 80.9kg 93.7kg £430.87
TBK074/075 810mm 12 778mm 180mm 4200 1224 5316 1560 88.2kg 102.2kg £470.04
TBK074/075 810mm 13 840mm 180mm 4550 1326 5759 1690 95.6kg 110.8kg £509.21
TBK074/075 810mm 14 902mm 180mm 4900 1428 6202 1820 102.9kg 119.3kg £548.38
TBK074/075 810mm 15 964mm 180mm 5250 1530 6645 1950 110.3kg 127.8kg £587.55
TBK074/075 810mm 16 1026mm 180mm 5600 1632 7088 2080 117.6kg 136.3kg £626.72
TBK074/075 810mm 17 1088mm 180mm 5950 1734 7531 2210 125.0kg 144.8kg £665.89
TBK074/075 810mm 18 1150mm 180mm 6300 1836 7974 2340 132.3kg 153.4kg £705.06
TBK074/075 810mm 19 1212mm 180mm 6650 1938 8417 2470 139.7kg 161.9kg £744.23
TBK074/075 810mm 20 1274mm 180mm 7000 2040 8860 2600 147.0kg 170.4kg £783.40
TBK074/075 810mm 21 1336mm 180mm 7350 2142 9303 2730 154.4kg 178.9kg £822.57
TBK074/075 810mm 22 1398mm 180mm 7700 2244 9746 2860 161.7kg 187.4kg £861.74
TBK074/075 810mm 23 1460mm 180mm 8050 2346 10189 2990 169.1kg 196.0kg £900.91
TBK074/075 810mm 24 1522mm 180mm 8400 2448 10632 3120 176.4kg 204.5kg £940.08
TBK074/075 810mm 25 1584mm 180mm 8750 2550 11075 3250 183.8kg 213.0kg £979.25
TBK074/075 810mm 26 1646mm 180mm 9100 2652 11518 3380 191.1kg 221.5kg £1018.42
TBK074/075 810mm 27 1708mm 180mm 9450 2754 11961 3510 198.5kg 230.0kg £1057.59
TBK074/075 810mm 28 1770mm 180mm 9800 2856 12404 3640 205.8kg 238.6kg £1096.76
TBK074/075 810mm 29 1832mm 180mm 10150 2958 12847 3770 213.2kg 247.1kg £1135.93
TBK074/075 810mm 30 1894mm 180mm 10500 3060 13290 3900 220.5kg 255.6kg £1175.10
