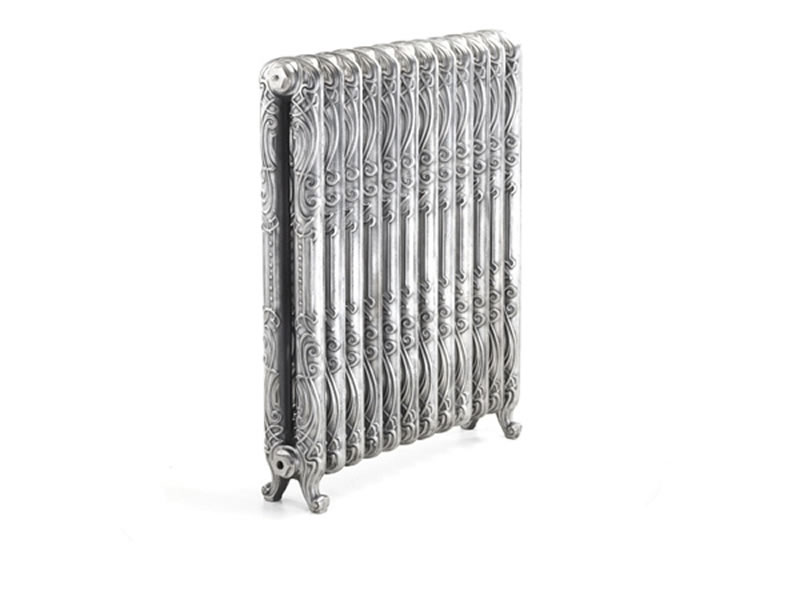

Orleans decorative cast iron radiator in hghlight polish

Orleans Cast Iron Radiator

Fluid Art Nouveau runs throughout this design, which is distinctly French in origin. A particularly attractive addition to any decor.

Available in 1 heights: 980mm

From £57.50 per section. (£69.00 inc. VAT)

OR

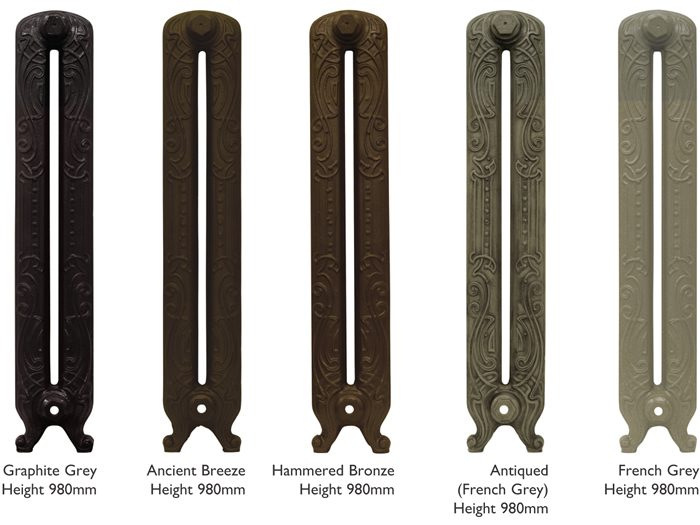

Orleans painted cast iron radiator sections

Orleans painted cast iron radiator sections

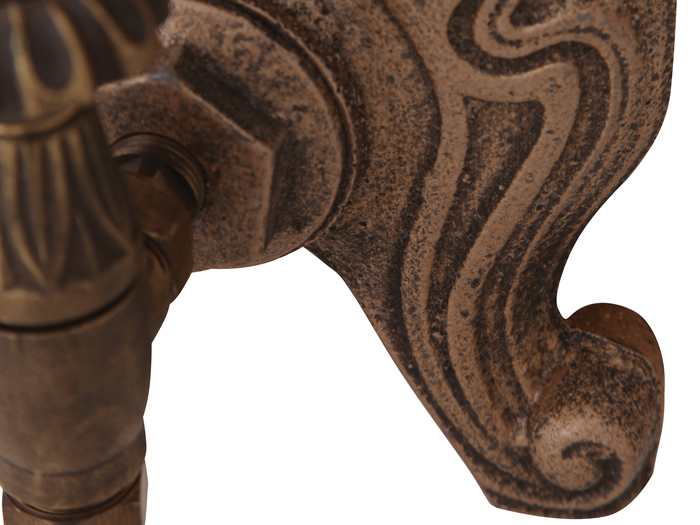

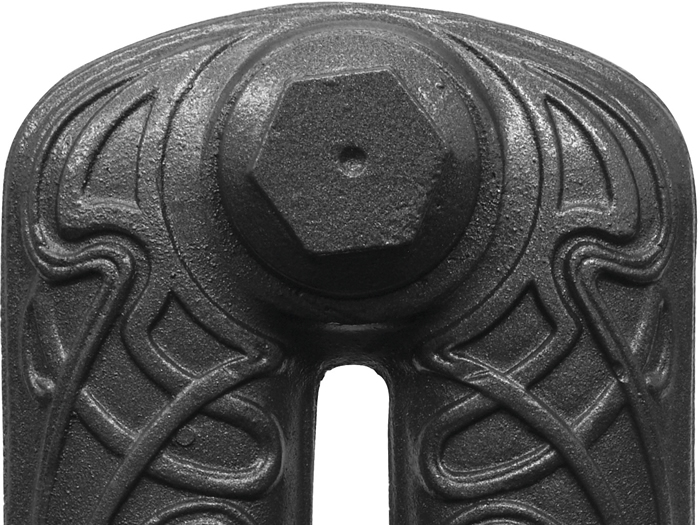

Orleans painted cast iron radiator sections Orleans cast iron radiator section in foundry grey Orleans radiator detail Orleans cast iron radiator leg

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • Antiqued French Grey
  • Hand Burnished
  • Highlight Polish
  • Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Ancient Breeze
  • Buttermilk
  • Foundry Grey
  • French Grey
  • Graphite Grey
  • Hammered Bronze
  • Hammered Gold
  • Parchment White
  • Primer
  • Satin Black
  • Vellum
  • Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

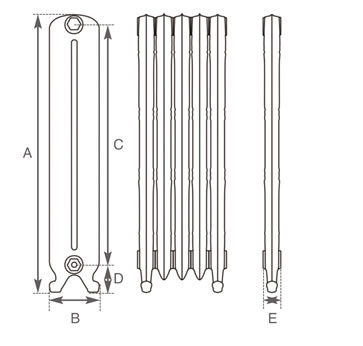

orleans radiator measurements

* per cast iron radiator section.

980 175 840 100 65 468 137 17.3kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator


Orleans Radiator Range Information Table

Model No. Height Sections Width/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 50°)
Watts
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(ex. VAT in Primer)
Build Radiator
LD236/237 980mm 3 229mm 175mm 1404 411 1779 522 51.9kg 60.0kg £172.50
LD236/237 980mm 4 294mm 175mm 1872 548 2372 696 69.2kg 80.0kg £230.00
LD236/237 980mm 5 359mm 175mm 2340 685 2965 870 86.5kg 100.0kg £287.50
LD236/237 980mm 6 424mm 175mm 2808 822 3558 1044 103.8kg 120.0kg £345.00
LD236/237 980mm 7 489mm 175mm 3276 959 4151 1218 121.1kg 140.0kg £402.50
LD236/237 980mm 8 554mm 175mm 3744 1096 4744 1392 138.4kg 160.0kg £460.00
LD236/237 980mm 9 619mm 175mm 4212 1233 5337 1566 155.7kg 180.0kg £517.50
LD236/237 980mm 10 684mm 175mm 4680 1370 5930 1740 173.0kg 200.0kg £575.00
LD236/237 980mm 11 749mm 175mm 5148 1507 6523 1914 190.3kg 220.0kg £632.50
LD236/237 980mm 12 814mm 175mm 5616 1644 7116 2088 207.6kg 240.0kg £690.00
LD236/237 980mm 13 879mm 175mm 6084 1781 7709 2262 224.9kg 260.0kg £747.50
LD236/237 980mm 14 944mm 175mm 6552 1918 8302 2436 242.2kg 280.0kg £805.00
LD236/237 980mm 15 1009mm 175mm 7020 2055 8895 2610 259.5kg 300.0kg £862.50
LD236/237 980mm 16 1074mm 175mm 7488 2192 9488 2784 276.8kg 320.0kg £920.00
LD236/237 980mm 17 1139mm 175mm 7956 2329 10081 2958 294.1kg 340.0kg £977.50
LD236/237 980mm 18 1204mm 175mm 8424 2466 10674 3132 311.4kg 360.0kg £1035.00
LD236/237 980mm 19 1269mm 175mm 8892 2603 11267 3306 328.7kg 380.0kg £1092.50
LD236/237 980mm 20 1334mm 175mm 9360 2740 11860 3480 346.0kg 400.0kg £1150.00
LD236/237 980mm 21 1399mm 175mm 9828 2877 12453 3654 363.3kg 420.0kg £1207.50
LD236/237 980mm 22 1464mm 175mm 10296 3014 13046 3828 380.6kg 440.0kg £1265.00
LD236/237 980mm 23 1529mm 175mm 10764 3151 13639 4002 397.9kg 460.0kg £1322.50
LD236/237 980mm 24 1594mm 175mm 11232 3288 14232 4176 415.2kg 480.0kg £1380.00
LD236/237 980mm 25 1659mm 175mm 11700 3425 14825 4350 432.5kg 500.0kg £1437.50
LD236/237 980mm 26 1724mm 175mm 12168 3562 15418 4524 449.8kg 520.0kg £1495.00
LD236/237 980mm 27 1789mm 175mm 12636 3699 16011 4698 467.1kg 540.0kg £1552.50
LD236/237 980mm 28 1854mm 175mm 13104 3836 16604 4872 484.4kg 560.0kg £1610.00
LD236/237 980mm 29 1919mm 175mm 13572 3973 17197 5046 501.7kg 580.0kg £1667.50
LD236/237 980mm 30 1984mm 175mm 14040 4110 17790 5220 519.0kg 600.0kg £1725.00
