Eton Cast Iron Radiator

A high quality classically designed cast iron radiator with integral legs.

The Eton's simple design, consisting of straight edges and a curved top, comes in a full range of colours/finishes.

Available in 3 heights: 480mm, 620mm, 770mm

From £135.00 (£45.00 per section)

United Kingdom Flag Hand-built & finished in the UK from 10 working days
  • FREE UK Mainland Delivery*
  • Specialist Finishes Available
  • Lifetime Guarantee
  • Available In 3 Heights
  • Over 10,000 Colour Options

*On orders over £300.00

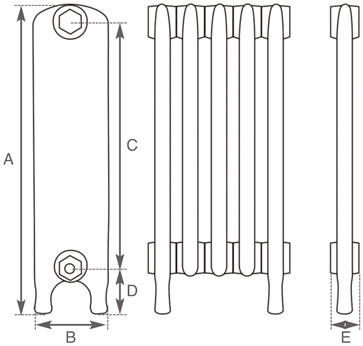

Eton Line Drawing

* per cast iron radiator section.

480 150 340 100 66 182 53 93 27 6.7kg
620 150 480 100 66 226 66 119 35 7.7kg
770 150 630 100 66 22 80 143 42 9kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • Eton 480Mm Hand Burnished End Hand Burnished
  • Eton 480Mm Hand Burnished End Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Eton 480Mm Ancient Breeze End Ancient Breeze
  • Eton 480Mm Buttermilk End Buttermilk
  • Eton 480Mm Foundry Grey End Foundry Grey
  • Eton 480Mm French Grey End French Grey
  • Eton 480Mm Graphite Grey End Graphite Grey
  • Eton 480Mm Hammered Bronze End Hammered Bronze
  • Eton 480Mm Hammered Gold End Hammered Gold
  • Eton 480Mm Parchment White End Parchment White
  • Eton 480Mm Primer End Primer
  • Eton 480Mm Satin Black End Satin Black
  • Eton 480Mm Vellum End Vellum
  • Eton 480Mm Willow Green End Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

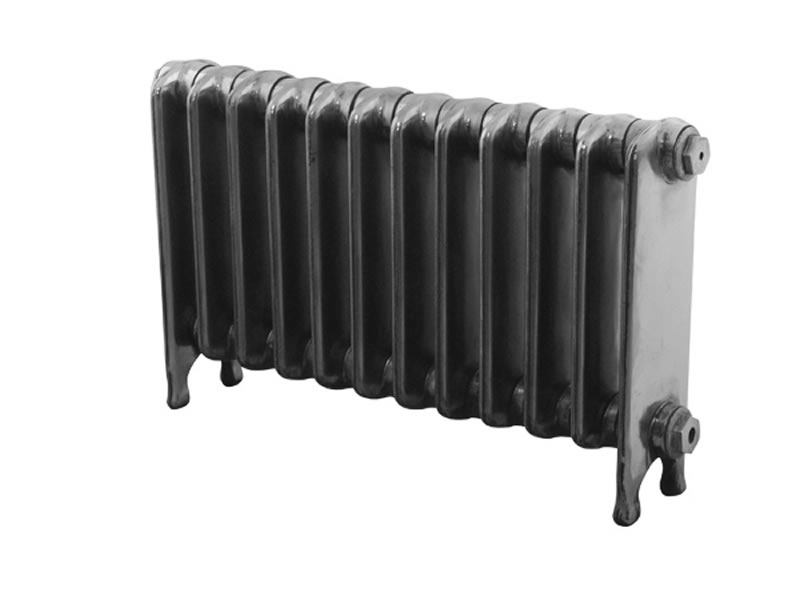

Eton Cast Iron Radiator 800 01
Model No. Height Sections Width
/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 30°)
Watts
(ΔT 30°)
BTU's
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(in Primer)
Buy Radiator
TBK118/119 480mm 3 232mm 150mm 279 81 546 693 204 20.1kg 23.1kg £135.00
TBK118/119 480mm 4 298mm 150mm 372 108 728 924 272 26.8kg 30.8kg £180.00
TBK118/119 480mm 5 364mm 150mm 465 135 910 1155 340 33.5kg 38.5kg £225.00
TBK118/119 480mm 6 430mm 150mm 558 162 1092 1386 408 40.2kg 46.2kg £270.00
TBK118/119 480mm 7 496mm 150mm 651 189 1274 1617 476 46.9kg 53.9kg £315.00
TBK118/119 480mm 8 562mm 150mm 744 216 1456 1848 544 53.6kg 61.6kg £360.00
TBK118/119 480mm 9 628mm 150mm 837 243 1638 2079 612 60.3kg 69.3kg £405.00
TBK118/119 480mm 10 694mm 150mm 930 270 1820 2310 680 67.0kg 77.0kg £450.00
TBK118/119 480mm 11 760mm 150mm 1023 297 2002 2541 748 73.7kg 84.7kg £495.00
TBK118/119 480mm 12 826mm 150mm 1116 324 2184 2772 816 80.4kg 92.4kg £540.00
TBK118/119 480mm 13 892mm 150mm 1209 351 2366 3003 884 87.1kg 100.1kg £585.00
TBK118/119 480mm 14 958mm 150mm 1302 378 2548 3234 952 93.8kg 107.8kg £630.00
TBK118/119 480mm 15 1024mm 150mm 1395 405 2730 3465 1020 100.5kg 115.5kg £675.00
TBK118/119 480mm 16 1090mm 150mm 1488 432 2912 3696 1088 107.2kg 123.2kg £720.00
TBK118/119 480mm 17 1156mm 150mm 1581 459 3094 3927 1156 113.9kg 130.9kg £765.00
TBK118/119 480mm 18 1222mm 150mm 1674 486 3276 4158 1224 120.6kg 138.6kg £810.00
TBK118/119 480mm 19 1288mm 150mm 1767 513 3458 4389 1292 127.3kg 146.3kg £855.00
TBK118/119 480mm 20 1354mm 150mm 1860 540 3640 4620 1360 134.0kg 154.0kg £900.00
TBK118/119 480mm 21 1420mm 150mm 1953 567 3822 4851 1428 140.7kg 161.7kg £945.00
TBK118/119 480mm 22 1486mm 150mm 2046 594 4004 5082 1496 147.4kg 169.4kg £990.00
TBK118/119 480mm 23 1552mm 150mm 2139 621 4186 5313 1564 154.1kg 177.1kg £1035.00
TBK118/119 480mm 24 1618mm 150mm 2232 648 4368 5544 1632 160.8kg 184.8kg £1080.00
TBK118/119 480mm 25 1684mm 150mm 2325 675 4550 5775 1700 167.5kg 192.5kg £1125.00
TBK118/119 480mm 26 1750mm 150mm 2418 702 4732 6006 1768 174.2kg 200.2kg £1170.00
TBK118/119 480mm 27 1816mm 150mm 2511 729 4914 6237 1836 180.9kg 207.9kg £1215.00
TBK118/119 480mm 28 1882mm 150mm 2604 756 5096 6468 1904 187.6kg 215.6kg £1260.00
TBK118/119 480mm 29 1948mm 150mm 2697 783 5278 6699 1972 194.3kg 223.3kg £1305.00
TBK118/119 480mm 30 2014mm 150mm 2790 810 5460 6930 2040 201.0kg 231.0kg £1350.00
Model No. Height Sections Width
/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 30°)
Watts
(ΔT 30°)
BTU's
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(in Primer)
Buy Radiator
TBK128/129 620mm 3 232mm 150mm 357 105 678 849 249 23.1kg 27.0kg £171.00
TBK128/129 620mm 4 298mm 150mm 476 140 904 1132 332 30.8kg 36.0kg £228.00
TBK128/129 620mm 5 364mm 150mm 595 175 1130 1415 415 38.5kg 45.0kg £285.00
TBK128/129 620mm 6 430mm 150mm 714 210 1356 1698 498 46.2kg 54.0kg £342.00
TBK128/129 620mm 7 496mm 150mm 833 245 1582 1981 581 53.9kg 63.0kg £399.00
TBK128/129 620mm 8 562mm 150mm 952 280 1808 2264 664 61.6kg 72.0kg £456.00
TBK128/129 620mm 9 628mm 150mm 1071 315 2034 2547 747 69.3kg 81.0kg £513.00
TBK128/129 620mm 10 694mm 150mm 1190 350 2260 2830 830 77.0kg 90.0kg £570.00
TBK128/129 620mm 11 760mm 150mm 1309 385 2486 3113 913 84.7kg 99.0kg £627.00
TBK128/129 620mm 12 826mm 150mm 1428 420 2712 3396 996 92.4kg 108.0kg £684.00
TBK128/129 620mm 13 892mm 150mm 1547 455 2938 3679 1079 100.1kg 117.0kg £741.00
TBK128/129 620mm 14 958mm 150mm 1666 490 3164 3962 1162 107.8kg 126.0kg £798.00
TBK128/129 620mm 15 1024mm 150mm 1785 525 3390 4245 1245 115.5kg 135.0kg £855.00
TBK128/129 620mm 16 1090mm 150mm 1904 560 3616 4528 1328 123.2kg 144.0kg £912.00
TBK128/129 620mm 17 1156mm 150mm 2023 595 3842 4811 1411 130.9kg 153.0kg £969.00
TBK128/129 620mm 18 1222mm 150mm 2142 630 4068 5094 1494 138.6kg 162.0kg £1026.00
TBK128/129 620mm 19 1288mm 150mm 2261 665 4294 5377 1577 146.3kg 171.0kg £1083.00
TBK128/129 620mm 20 1354mm 150mm 2380 700 4520 5660 1660 154.0kg 180.0kg £1140.00
TBK128/129 620mm 21 1420mm 150mm 2499 735 4746 5943 1743 161.7kg 189.0kg £1197.00
TBK128/129 620mm 22 1486mm 150mm 2618 770 4972 6226 1826 169.4kg 198.0kg £1254.00
TBK128/129 620mm 23 1552mm 150mm 2737 805 5198 6509 1909 177.1kg 207.0kg £1311.00
TBK128/129 620mm 24 1618mm 150mm 2856 840 5424 6792 1992 184.8kg 216.0kg £1368.00
TBK128/129 620mm 25 1684mm 150mm 2975 875 5650 7075 2075 192.5kg 225.0kg £1425.00
TBK128/129 620mm 26 1750mm 150mm 3094 910 5876 7358 2158 200.2kg 234.0kg £1482.00
TBK128/129 620mm 27 1816mm 150mm 3213 945 6102 7641 2241 207.9kg 243.0kg £1539.00
TBK128/129 620mm 28 1882mm 150mm 3332 980 6328 7924 2324 215.6kg 252.0kg £1596.00
TBK128/129 620mm 29 1948mm 150mm 3451 1015 6554 8207 2407 223.3kg 261.0kg £1653.00
TBK128/129 620mm 30 2014mm 150mm 3570 1050 6780 8490 2490 231.0kg 270.0kg £1710.00
Model No. Height Sections Width
/Length
(inc. bushes)
Depth
(from wall)
BTU's
(ΔT 30°)
Watts
(ΔT 30°)
BTU's
(ΔT 50°)
BTU's
(ΔT 60°)
Watts
(ΔT 60°)
Empty Weight Filled Weight Price From
(in Primer)
Buy Radiator
TBK120/121 770mm 3 232mm 150mm 429 126 66 1029 300 27.0kg 32.1kg £183.00
TBK120/121 770mm 4 298mm 150mm 572 168 88 1372 400 36.0kg 42.8kg £244.00
TBK120/121 770mm 5 364mm 150mm 715 210 110 1715 500 45.0kg 53.5kg £305.00
TBK120/121 770mm 6 430mm 150mm 858 252 132 2058 600 54.0kg 64.2kg £366.00
TBK120/121 770mm 7 496mm 150mm 1001 294 154 2401 700 63.0kg 74.9kg £427.00
TBK120/121 770mm 8 562mm 150mm 1144 336 176 2744 800 72.0kg 85.6kg £488.00
TBK120/121 770mm 9 628mm 150mm 1287 378 198 3087 900 81.0kg 96.3kg £549.00
TBK120/121 770mm 10 694mm 150mm 1430 420 220 3430 1000 90.0kg 107.0kg £610.00
TBK120/121 770mm 11 760mm 150mm 1573 462 242 3773 1100 99.0kg 117.7kg £671.00
TBK120/121 770mm 12 826mm 150mm 1716 504 264 4116 1200 108.0kg 128.4kg £732.00
TBK120/121 770mm 13 892mm 150mm 1859 546 286 4459 1300 117.0kg 139.1kg £793.00
TBK120/121 770mm 14 958mm 150mm 2002 588 308 4802 1400 126.0kg 149.8kg £854.00
TBK120/121 770mm 15 1024mm 150mm 2145 630 330 5145 1500 135.0kg 160.5kg £915.00
TBK120/121 770mm 16 1090mm 150mm 2288 672 352 5488 1600 144.0kg 171.2kg £976.00
TBK120/121 770mm 17 1156mm 150mm 2431 714 374 5831 1700 153.0kg 181.9kg £1037.00
TBK120/121 770mm 18 1222mm 150mm 2574 756 396 6174 1800 162.0kg 192.6kg £1098.00
TBK120/121 770mm 19 1288mm 150mm 2717 798 418 6517 1900 171.0kg 203.3kg £1159.00
TBK120/121 770mm 20 1354mm 150mm 2860 840 440 6860 2000 180.0kg 214.0kg £1220.00
TBK120/121 770mm 21 1420mm 150mm 3003 882 462 7203 2100 189.0kg 224.7kg £1281.00
TBK120/121 770mm 22 1486mm 150mm 3146 924 484 7546 2200 198.0kg 235.4kg £1342.00
TBK120/121 770mm 23 1552mm 150mm 3289 966 506 7889 2300 207.0kg 246.1kg £1403.00
TBK120/121 770mm 24 1618mm 150mm 3432 1008 528 8232 2400 216.0kg 256.8kg £1464.00
TBK120/121 770mm 25 1684mm 150mm 3575 1050 550 8575 2500 225.0kg 267.5kg £1525.00
TBK120/121 770mm 26 1750mm 150mm 3718 1092 572 8918 2600 234.0kg 278.2kg £1586.00
TBK120/121 770mm 27 1816mm 150mm 3861 1134 594 9261 2700 243.0kg 288.9kg £1647.00
TBK120/121 770mm 28 1882mm 150mm 4004 1176 616 9604 2800 252.0kg 299.6kg £1708.00
TBK120/121 770mm 29 1948mm 150mm 4147 1218 638 9947 2900 261.0kg 310.3kg £1769.00
TBK120/121 770mm 30 2014mm 150mm 4290 1260 660 10290 3000 270.0kg 321.0kg £1830.00

The Eton cast iron radiator is one of our most popular models. It combines simple design with classic style, making it the ideal choice for any modern or period home.

At Trads, our beautiful selection of cast iron radiators is inspired by a bygone age. We’re passionate about replicating the lavish interiors of eras past and we have built all of our products around this vision. The Eton’s simplicity, with a design consisting of straight edges and a curved top, is the perfect fit for a range of environments. It is both visually stunning and highly functional - stylish, yet brimming with substance.

The Eton is available in three different heights (480mm, 620mm, 770mm) and can be customised to your exact requirements. Our extensive paint and finish options will enable you to tailor this model to any room or environment, with the ability to add up to 30 sections another one of its biggest selling points. Colours from premium paint brands such as Farrow & Ball are available and we will use our on-site paint and spray shop facilities to add the finishing touch to your cast iron radiator.

Similar to our other models, the Eton cast iron radiator has been handmade in the UK by a team of knowledgeable and experienced craftsmen. Our design experts employ tried-and-tested manufacturing techniques when bringing our products to life and only work with the highest grade of cast iron.

Finished with integral legs and complete with a Lifetime Guarantee, the Eton is a model without equal. Every one of our cast iron radiator designs is recognised for its quality, authenticity and reliability and the same can be said for the Eton.

Make the Eton part of the furniture today. You can browse our options in full below or get in touch for further information. FREE UK DELIVERY is on all items over £300.00 inc. VAT!
