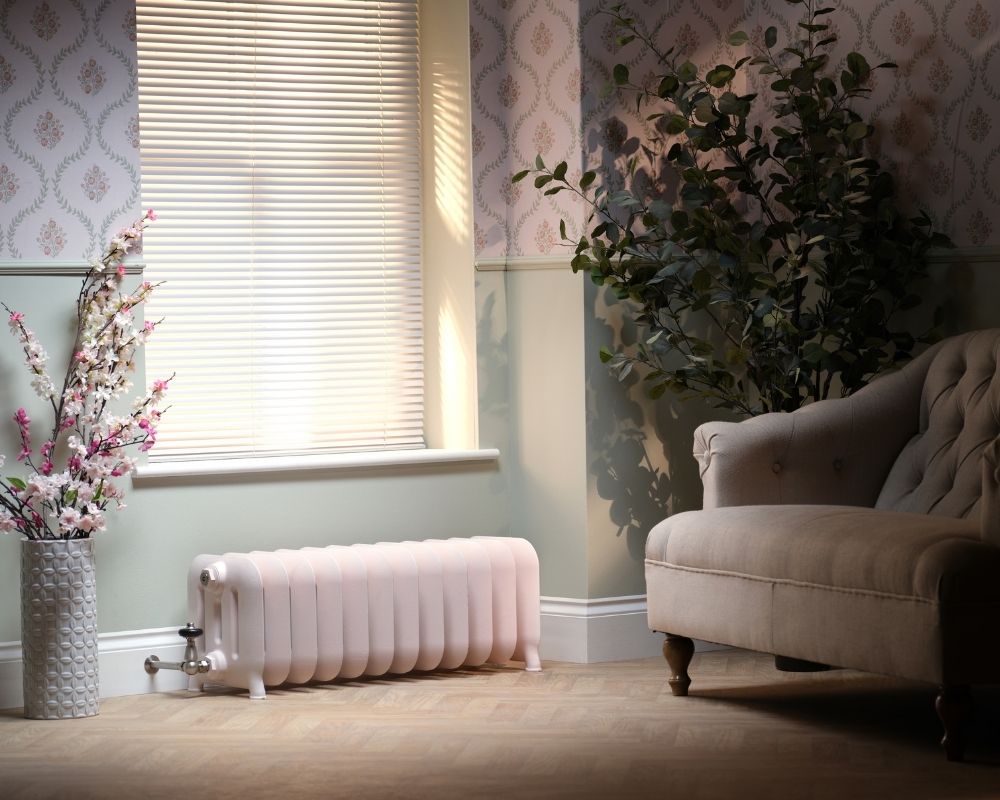

Duchess 4 Column Cast Iron Radiator F&B Middleton Pink

Duchess 4 Column Cast Iron Radiator F&B Middleton Pink

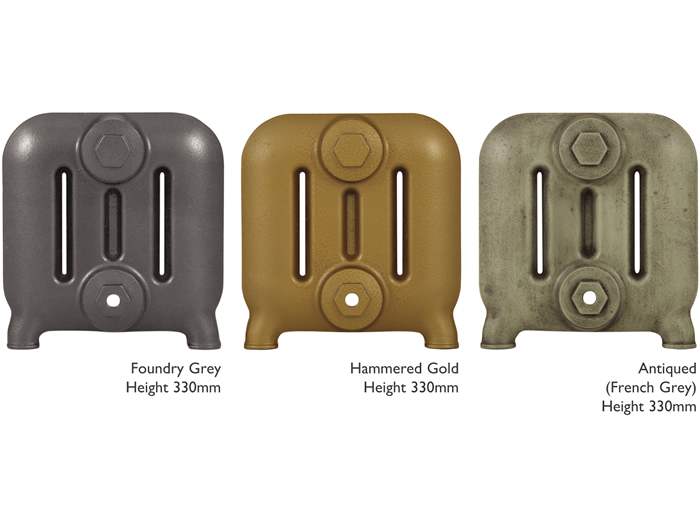

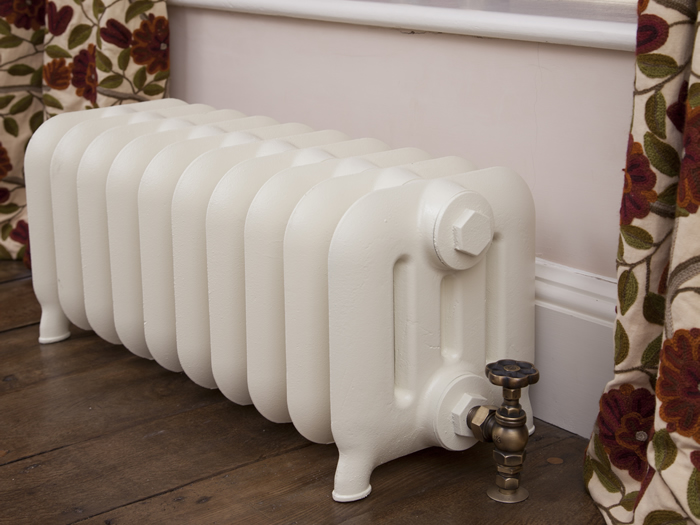

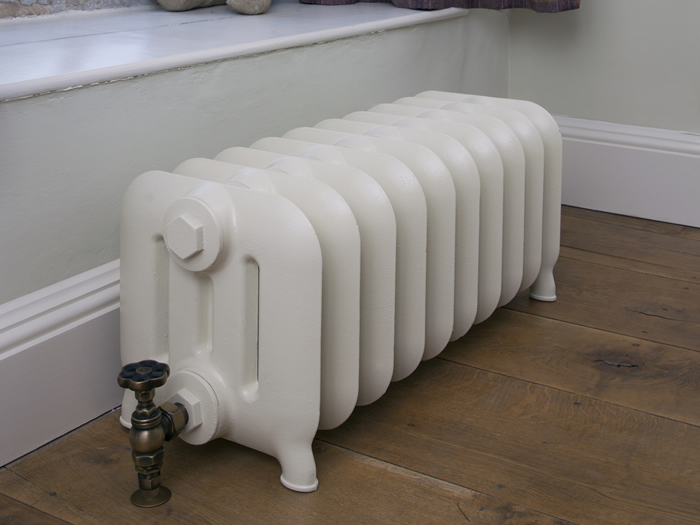

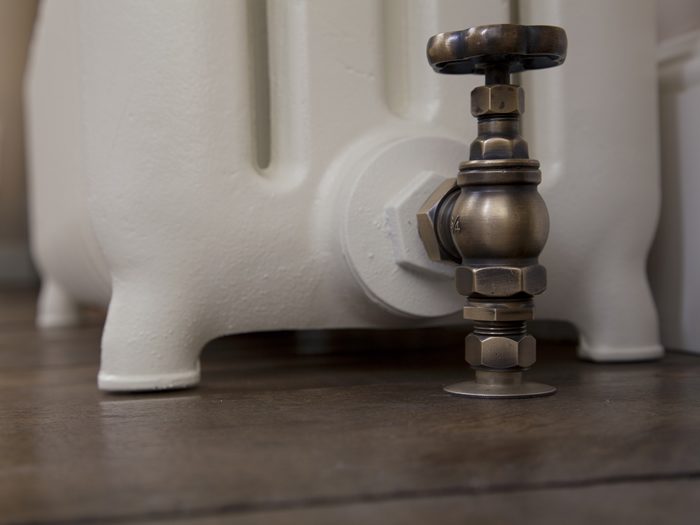

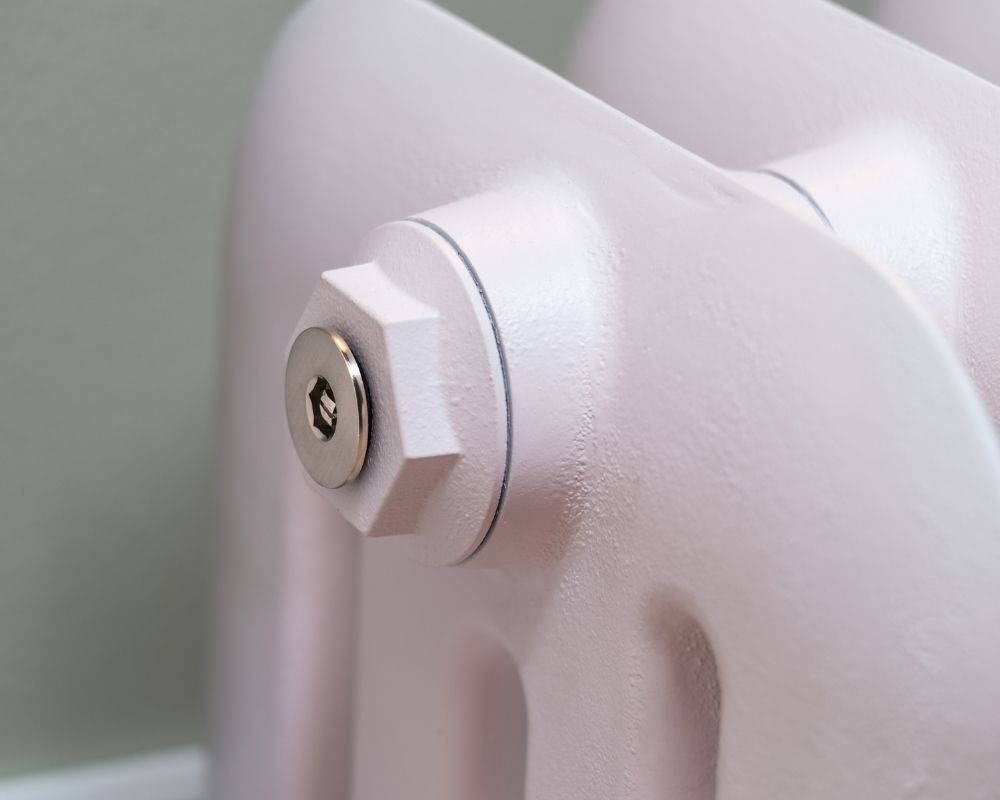

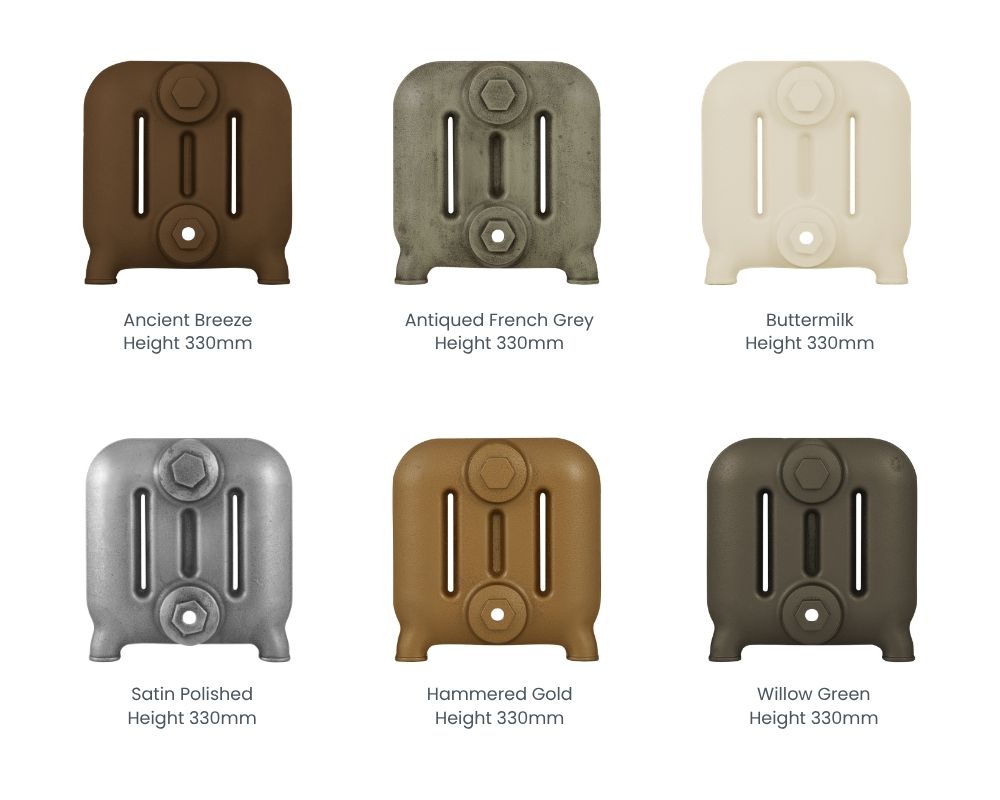

Duchess 4 Column Cast Iron Radiator F&B Middleton Pink Duchess 4 Column Cast Iron Radiator Detail Duchess 4 Column Cast Iron Radiator In Parchment White Finish With Daisy Wheel Valve Duchess 4 Column Cast Iron Radiator In Various Sizes And Finishes

Duchess 4 Column Cast Iron Radiator

Duchess 4 column cast iron radiator. Perfect for bay windows or where a low radiator is required. This radiator also benefits from a high heat output.

Available in 1 heights: 330mm

From £177.00 (£59.00 per section)

United Kingdom Flag Hand-built & finished in the UK from 10 working days
  • FREE UK Mainland Delivery*
  • Ideal For Bay Windows
  • Over 10,000 Colour Options
  • Lifetime Guarantee
  • Specialist Finishes Available

*On orders over £300.00

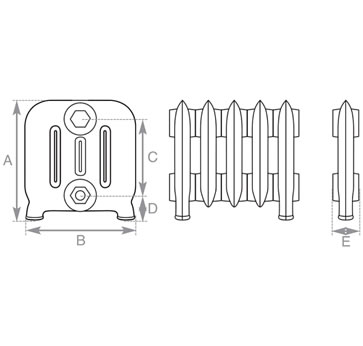

Duchess 4 Column Line Drawing

All measurements are for guidance only. Please allow for +/- 3% tolerance. Please do not install pipework until your radiators are onsite.

* per cast iron radiator section.
330 310 205 70 75 286.000000 84.000000 154.000000 45.000000 8.300000kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • Duchess 4 Column 330Mm Hand Burnished End Hand Burnished

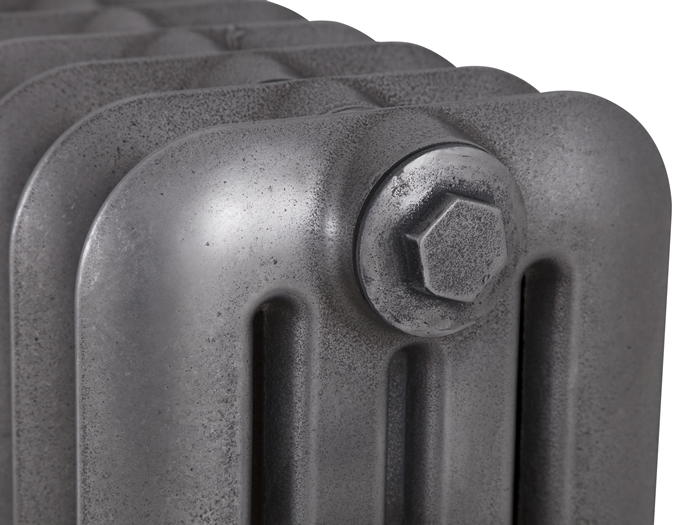

  • Duchess 4 Column 330Mm Hand Burnished End Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Duchess 4 Column 330Mm Ancient Breeze End Ancient Breeze
  • Duchess 4 Column 330Mm Buttermilk End Buttermilk
  • Duchess 4 Column 330Mm Foundry Grey End Foundry Grey
  • Duchess 4 Column 330Mm French Grey End French Grey
  • Duchess 4 Column 330Mm Graphite Grey End Graphite Grey
  • Duchess 4 Column 330Mm Hammered Bronze End Hammered Bronze
  • Duchess 4 Column 330Mm Hammered Gold End Hammered Gold
  • Duchess 4 Column 330Mm Parchment White End Parchment White
  • Duchess 4 Column 330Mm Primer End Primer
  • Duchess 4 Column 330Mm Satin Black End Satin Black
  • Duchess 4 Column 330Mm Vellum End Vellum
  • Duchess 4 Column 330Mm Willow Green End Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

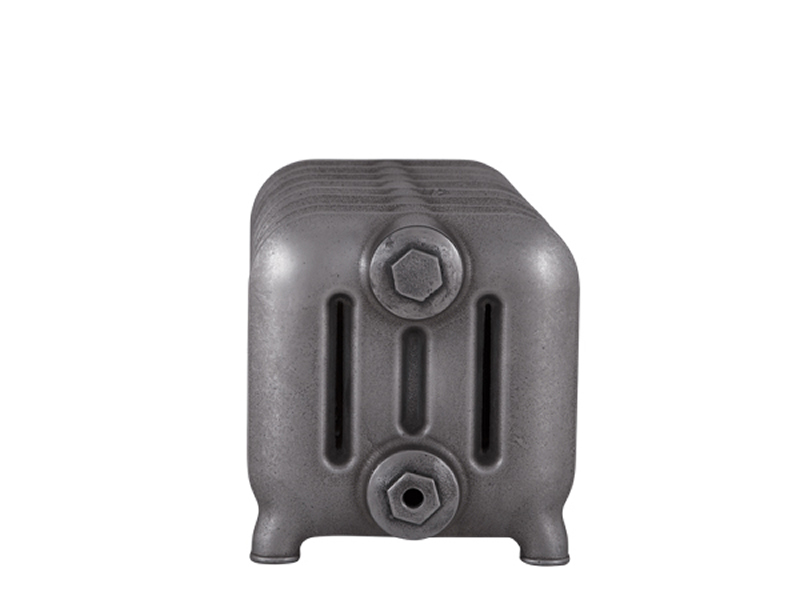

Duchess 4 Column Cast Iron Radiator 800 01
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
TBK124/125 330mm 3 259mm 310mm 462.000000 135.000000 858.000000 1071.000000 315.000000 24.9kg 30.3kg £177.00
TBK124/125 330mm 4 334mm 310mm 616.000000 180.000000 1144.000000 1428.000000 420.000000 33.2kg 40.4kg £236.00
TBK124/125 330mm 5 409mm 310mm 770.000000 225.000000 1430.000000 1785.000000 525.000000 41.5kg 50.5kg £295.00
TBK124/125 330mm 6 484mm 310mm 924.000000 270.000000 1716.000000 2142.000000 630.000000 49.8kg 60.6kg £354.00
TBK124/125 330mm 7 559mm 310mm 1078.000000 315.000000 2002.000000 2499.000000 735.000000 58.1kg 70.7kg £413.00
TBK124/125 330mm 8 634mm 310mm 1232.000000 360.000000 2288.000000 2856.000000 840.000000 66.4kg 80.8kg £472.00
TBK124/125 330mm 9 709mm 310mm 1386.000000 405.000000 2574.000000 3213.000000 945.000000 74.7kg 90.9kg £531.00
TBK124/125 330mm 10 784mm 310mm 1540.000000 450.000000 2860.000000 3570.000000 1050.000000 83.0kg 101.0kg £590.00
TBK124/125 330mm 11 859mm 310mm 1694.000000 495.000000 3146.000000 3927.000000 1155.000000 91.3kg 111.1kg £649.00
TBK124/125 330mm 12 934mm 310mm 1848.000000 540.000000 3432.000000 4284.000000 1260.000000 99.6kg 121.2kg £708.00
TBK124/125 330mm 13 1009mm 310mm 2002.000000 585.000000 3718.000000 4641.000000 1365.000000 107.9kg 131.3kg £767.00
TBK124/125 330mm 14 1084mm 310mm 2156.000000 630.000000 4004.000000 4998.000000 1470.000000 116.2kg 141.4kg £826.00
TBK124/125 330mm 15 1159mm 310mm 2310.000000 675.000000 4290.000000 5355.000000 1575.000000 124.5kg 151.5kg £885.00
TBK124/125 330mm 16 1234mm 310mm 2464.000000 720.000000 4576.000000 5712.000000 1680.000000 132.8kg 161.6kg £944.00
TBK124/125 330mm 17 1309mm 310mm 2618.000000 765.000000 4862.000000 6069.000000 1785.000000 141.1kg 171.7kg £1003.00
TBK124/125 330mm 18 1384mm 310mm 2772.000000 810.000000 5148.000000 6426.000000 1890.000000 149.4kg 181.8kg £1062.00
TBK124/125 330mm 19 1459mm 310mm 2926.000000 855.000000 5434.000000 6783.000000 1995.000000 157.7kg 191.9kg £1121.00
TBK124/125 330mm 20 1534mm 310mm 3080.000000 900.000000 5720.000000 7140.000000 2100.000000 166.0kg 202.0kg £1180.00
TBK124/125 330mm 21 1609mm 310mm 3234.000000 945.000000 6006.000000 7497.000000 2205.000000 174.3kg 212.1kg £1239.00
TBK124/125 330mm 22 1684mm 310mm 3388.000000 990.000000 6292.000000 7854.000000 2310.000000 182.6kg 222.2kg £1298.00
TBK124/125 330mm 23 1759mm 310mm 3542.000000 1035.000000 6578.000000 8211.000000 2415.000000 190.9kg 232.3kg £1357.00
TBK124/125 330mm 24 1834mm 310mm 3696.000000 1080.000000 6864.000000 8568.000000 2520.000000 199.2kg 242.4kg £1416.00
TBK124/125 330mm 25 1909mm 310mm 3850.000000 1125.000000 7150.000000 8925.000000 2625.000000 207.5kg 252.5kg £1475.00
TBK124/125 330mm 26 1984mm 310mm 4004.000000 1170.000000 7436.000000 9282.000000 2730.000000 215.8kg 262.6kg £1534.00
TBK124/125 330mm 27 2059mm 310mm 4158.000000 1215.000000 7722.000000 9639.000000 2835.000000 224.1kg 272.7kg £1593.00
TBK124/125 330mm 28 2134mm 310mm 4312.000000 1260.000000 8008.000000 9996.000000 2940.000000 232.4kg 282.8kg £1652.00
TBK124/125 330mm 29 2209mm 310mm 4466.000000 1305.000000 8294.000000 10353.000000 3045.000000 240.7kg 292.9kg £1711.00
TBK124/125 330mm 30 2284mm 310mm 4620.000000 1350.000000 8580.000000 10710.000000 3150.000000 249.0kg 303.0kg £1770.00
