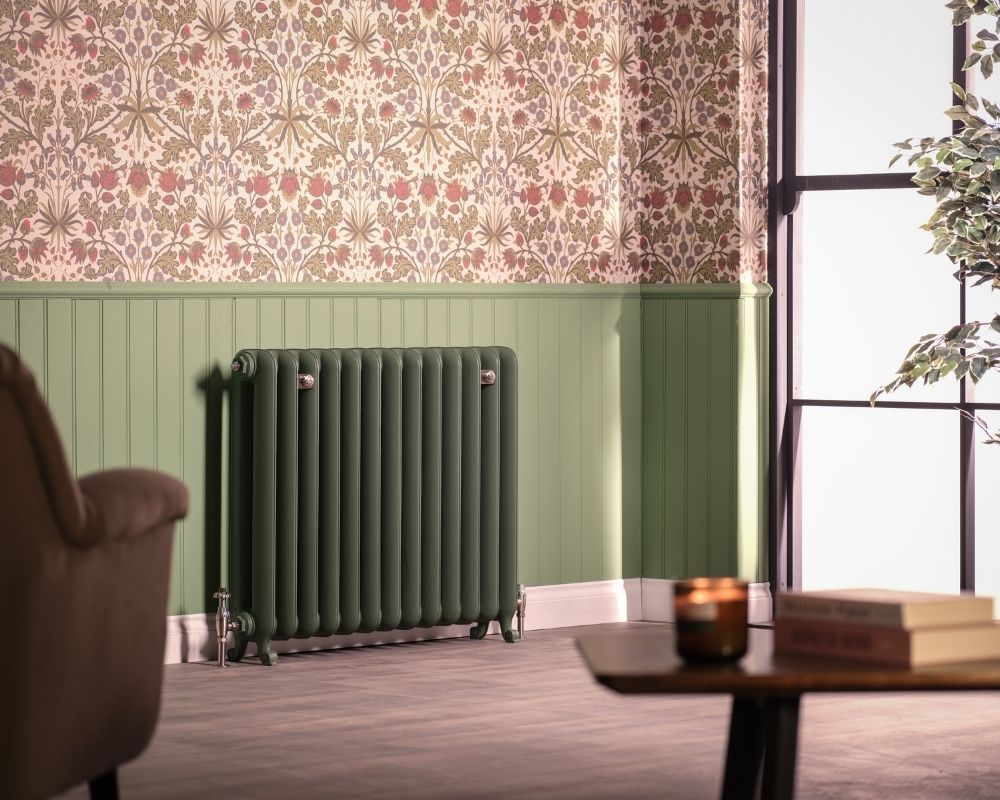

Duchess 2 Column Cast Iron Radiator F&B Dyrehaven

Duchess 2 Column Cast Iron Radiator F&B Dyrehaven

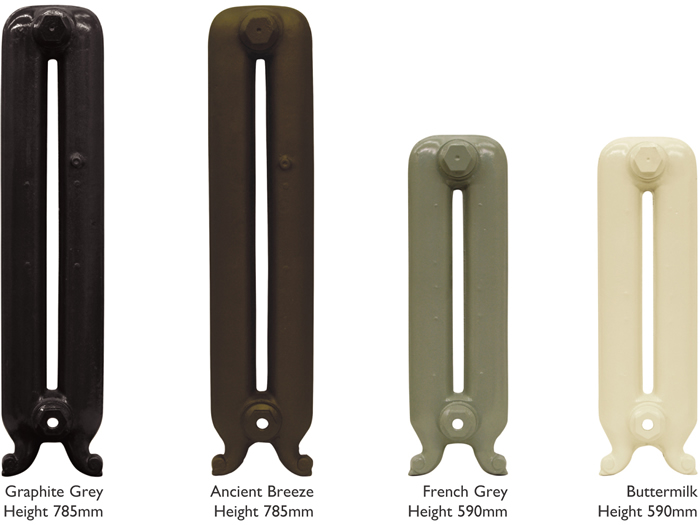

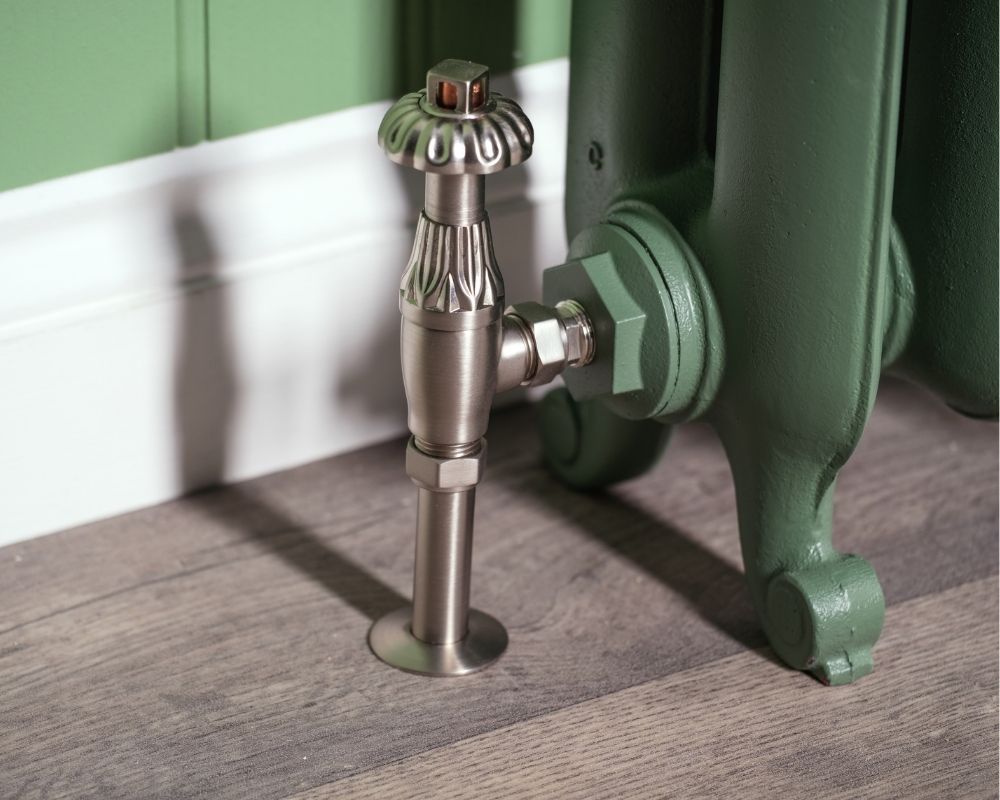

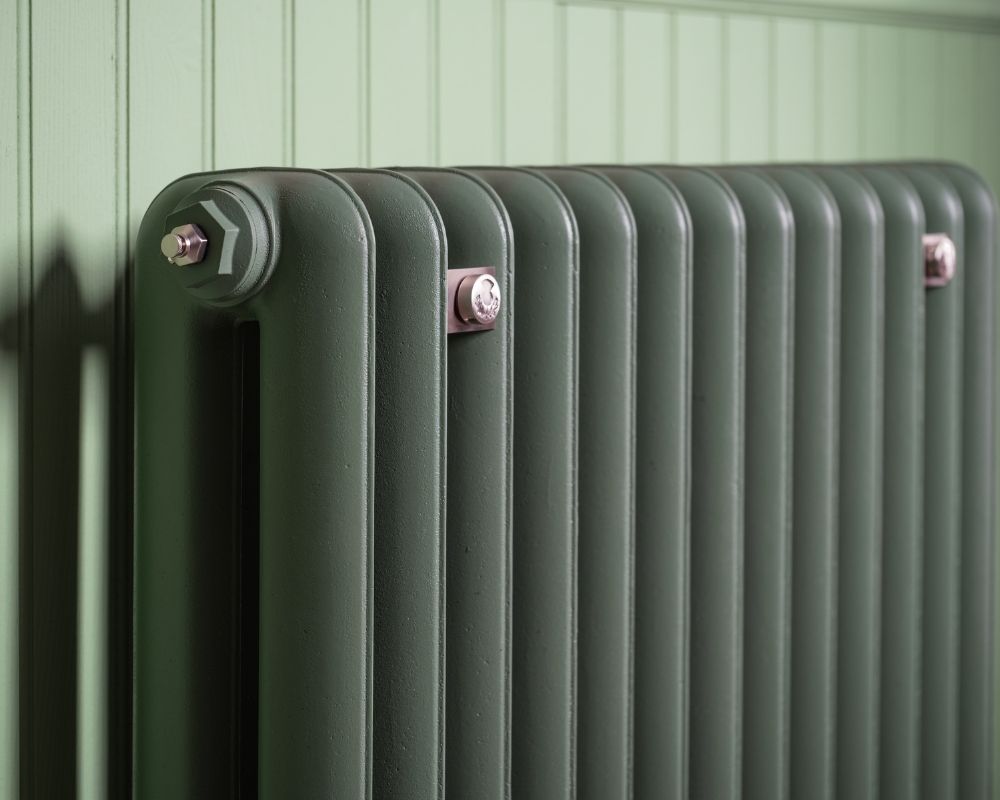

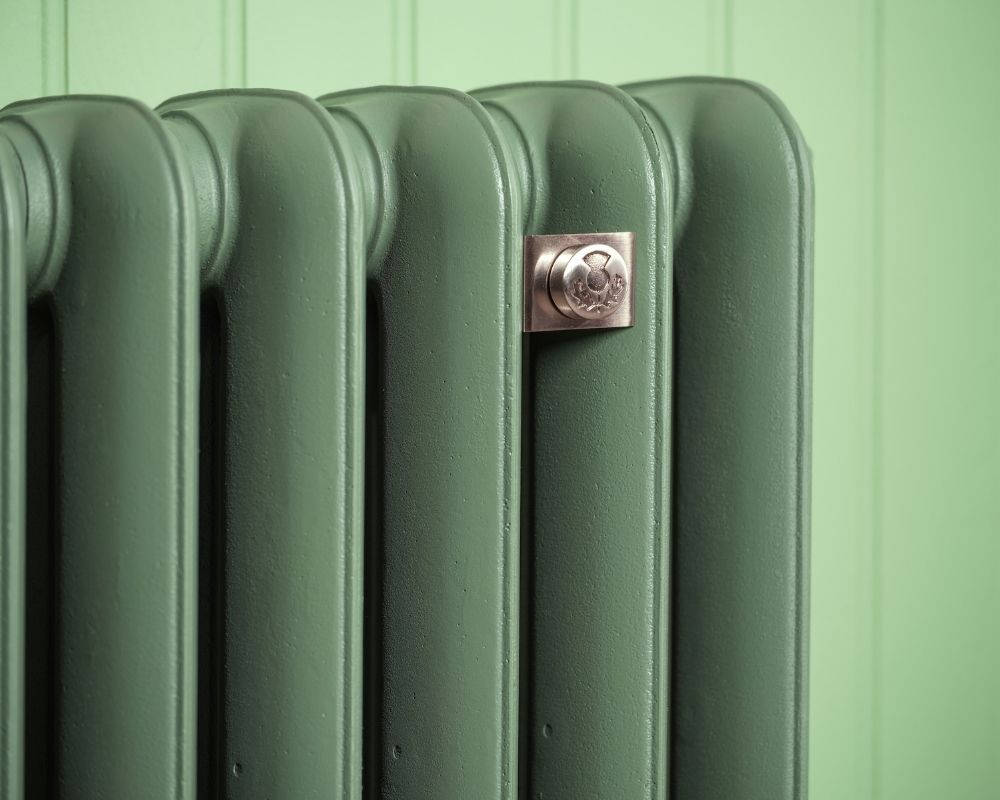

Duchess 2 Column Cast Iron Radiator F&B Dyrehaven Duchess 2 Column Cast Iron Radiator F&B Dyrehaven Close Up Duchess 2 Column Cast Iron Radiator F&B Dyrehaven Sections Duchess 2 Column Cast Iron Radiator F&B Dyrehaven Feet Duchess 2 Column Cast Iron Radiator Sections In Various Heights
YouTube

Duchess 2 Column Cast Iron Radiator

Featuring rounded, plump columns and a gently curving top, the Duchess 2 Column's fresh appearance lends itself to the most modern and traditional of homes alike.

Available in 2 heights: 590mm, 785mm

From £150.00 (£50.00 per section)

United Kingdom Flag Hand-built & finished in the UK from 10 working days
  • Over 10,000 Colour Options
  • Available In 2 Heights
  • FREE UK Mainland Delivery*
  • Lifetime Guarantee
  • Specialist Finishes Available

*On orders over £300.00

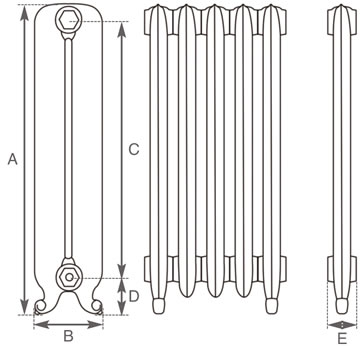

Duchess 2 Column Line Drawing

All measurements are for guidance only. Please allow for +/- 3% tolerance. Please do not install pipework until your radiators are onsite.

* per cast iron radiator section.
590 175 450 100 71 298.000000 87.000000 156.000000 46.000000 8.800000kg
785 175 640 100 71 382.000000 112.000000 200.000000 59.000000 11.600000kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • Duchess 2 Column 590Mm Hand Burnished End Hand Burnished
  • Duchess 2 Column 590Mm Hand Burnished End Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Duchess 2 Column 590Mm Ancient Breeze End Ancient Breeze

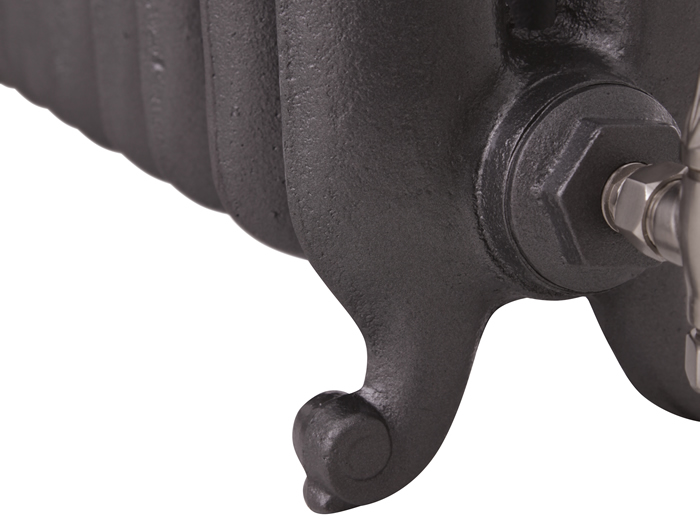

  • Duchess 2 Column 590Mm Foundry Grey End Foundry Grey
  • Duchess 2 Column 590Mm French Grey End French Grey
  • Duchess 2 Column 590Mm Graphite Grey End Graphite Grey
  • Duchess 2 Column 590Mm Hammered Bronze End Hammered Bronze
  • Duchess 2 Column 590Mm Hammered Gold End Hammered Gold
  • Duchess 2 Column 590Mm Parchment White End Parchment White
  • Duchess 2 Column 590Mm Primer End Primer
  • Duchess 2 Column 590Mm Satin Black End Satin Black
  • Duchess 2 Column 590Mm Vellum End Vellum
  • Duchess 2 Column 590Mm Willow Green End Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

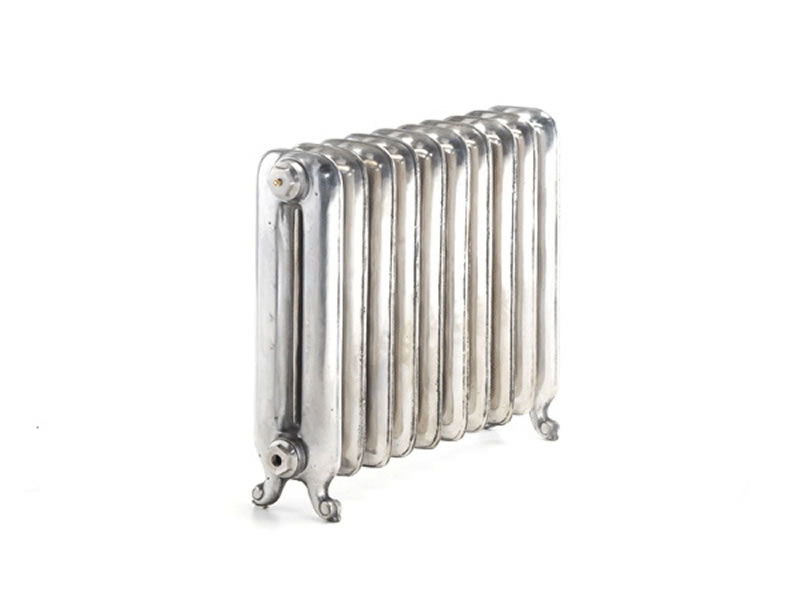

Duchess 2 Column Cast Iron Radiator 800 01
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
TBK023/024 590mm 3 247mm 175mm 468.000000 138.000000 894.000000 1125.000000 330.000000 26.4kg 31.2kg £150.00
TBK023/024 590mm 4 318mm 175mm 624.000000 184.000000 1192.000000 1500.000000 440.000000 35.2kg 41.6kg £200.00
TBK023/024 590mm 5 389mm 175mm 780.000000 230.000000 1490.000000 1875.000000 550.000000 44.0kg 52.0kg £250.00
TBK023/024 590mm 6 460mm 175mm 936.000000 276.000000 1788.000000 2250.000000 660.000000 52.8kg 62.4kg £300.00
TBK023/024 590mm 7 531mm 175mm 1092.000000 322.000000 2086.000000 2625.000000 770.000000 61.6kg 72.8kg £350.00
TBK023/024 590mm 8 602mm 175mm 1248.000000 368.000000 2384.000000 3000.000000 880.000000 70.4kg 83.2kg £400.00
TBK023/024 590mm 9 673mm 175mm 1404.000000 414.000000 2682.000000 3375.000000 990.000000 79.2kg 93.6kg £450.00
TBK023/024 590mm 10 744mm 175mm 1560.000000 460.000000 2980.000000 3750.000000 1100.000000 88.0kg 104.0kg £500.00
TBK023/024 590mm 11 815mm 175mm 1716.000000 506.000000 3278.000000 4125.000000 1210.000000 96.8kg 114.4kg £550.00
TBK023/024 590mm 12 886mm 175mm 1872.000000 552.000000 3576.000000 4500.000000 1320.000000 105.6kg 124.8kg £600.00
TBK023/024 590mm 13 957mm 175mm 2028.000000 598.000000 3874.000000 4875.000000 1430.000000 114.4kg 135.2kg £650.00
TBK023/024 590mm 14 1028mm 175mm 2184.000000 644.000000 4172.000000 5250.000000 1540.000000 123.2kg 145.6kg £700.00
TBK023/024 590mm 15 1099mm 175mm 2340.000000 690.000000 4470.000000 5625.000000 1650.000000 132.0kg 156.0kg £750.00
TBK023/024 590mm 16 1170mm 175mm 2496.000000 736.000000 4768.000000 6000.000000 1760.000000 140.8kg 166.4kg £800.00
TBK023/024 590mm 17 1241mm 175mm 2652.000000 782.000000 5066.000000 6375.000000 1870.000000 149.6kg 176.8kg £850.00
TBK023/024 590mm 18 1312mm 175mm 2808.000000 828.000000 5364.000000 6750.000000 1980.000000 158.4kg 187.2kg £900.00
TBK023/024 590mm 19 1383mm 175mm 2964.000000 874.000000 5662.000000 7125.000000 2090.000000 167.2kg 197.6kg £950.00
TBK023/024 590mm 20 1454mm 175mm 3120.000000 920.000000 5960.000000 7500.000000 2200.000000 176.0kg 208.0kg £1000.00
TBK023/024 590mm 21 1525mm 175mm 3276.000000 966.000000 6258.000000 7875.000000 2310.000000 184.8kg 218.4kg £1050.00
TBK023/024 590mm 22 1596mm 175mm 3432.000000 1012.000000 6556.000000 8250.000000 2420.000000 193.6kg 228.8kg £1100.00
TBK023/024 590mm 23 1667mm 175mm 3588.000000 1058.000000 6854.000000 8625.000000 2530.000000 202.4kg 239.2kg £1150.00
TBK023/024 590mm 24 1738mm 175mm 3744.000000 1104.000000 7152.000000 9000.000000 2640.000000 211.2kg 249.6kg £1200.00
TBK023/024 590mm 25 1809mm 175mm 3900.000000 1150.000000 7450.000000 9375.000000 2750.000000 220.0kg 260.0kg £1250.00
TBK023/024 590mm 26 1880mm 175mm 4056.000000 1196.000000 7748.000000 9750.000000 2860.000000 228.8kg 270.4kg £1300.00
TBK023/024 590mm 27 1951mm 175mm 4212.000000 1242.000000 8046.000000 10125.000000 2970.000000 237.6kg 280.8kg £1350.00
TBK023/024 590mm 28 2022mm 175mm 4368.000000 1288.000000 8344.000000 10500.000000 3080.000000 246.4kg 291.2kg £1400.00
TBK023/024 590mm 29 2093mm 175mm 4524.000000 1334.000000 8642.000000 10875.000000 3190.000000 255.2kg 301.6kg £1450.00
TBK023/024 590mm 30 2164mm 175mm 4680.000000 1380.000000 8940.000000 11250.000000 3300.000000 264.0kg 312.0kg £1500.00
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
TBK021/022 785mm 3 247mm 175mm 600.000000 177.000000 1146.000000 1443.000000 423.000000 34.8kg 40.8kg £171.00
TBK021/022 785mm 4 318mm 175mm 800.000000 236.000000 1528.000000 1924.000000 564.000000 46.4kg 54.4kg £228.00
TBK021/022 785mm 5 389mm 175mm 1000.000000 295.000000 1910.000000 2405.000000 705.000000 58.0kg 68.0kg £285.00
TBK021/022 785mm 6 460mm 175mm 1200.000000 354.000000 2292.000000 2886.000000 846.000000 69.6kg 81.6kg £342.00
TBK021/022 785mm 7 531mm 175mm 1400.000000 413.000000 2674.000000 3367.000000 987.000000 81.2kg 95.2kg £399.00
TBK021/022 785mm 8 602mm 175mm 1600.000000 472.000000 3056.000000 3848.000000 1128.000000 92.8kg 108.8kg £456.00
TBK021/022 785mm 9 673mm 175mm 1800.000000 531.000000 3438.000000 4329.000000 1269.000000 104.4kg 122.4kg £513.00
TBK021/022 785mm 10 744mm 175mm 2000.000000 590.000000 3820.000000 4810.000000 1410.000000 116.0kg 136.0kg £570.00
TBK021/022 785mm 11 815mm 175mm 2200.000000 649.000000 4202.000000 5291.000000 1551.000000 127.6kg 149.6kg £627.00
TBK021/022 785mm 12 886mm 175mm 2400.000000 708.000000 4584.000000 5772.000000 1692.000000 139.2kg 163.2kg £684.00
TBK021/022 785mm 13 957mm 175mm 2600.000000 767.000000 4966.000000 6253.000000 1833.000000 150.8kg 176.8kg £741.00
TBK021/022 785mm 14 1028mm 175mm 2800.000000 826.000000 5348.000000 6734.000000 1974.000000 162.4kg 190.4kg £798.00
TBK021/022 785mm 15 1099mm 175mm 3000.000000 885.000000 5730.000000 7215.000000 2115.000000 174.0kg 204.0kg £855.00
TBK021/022 785mm 16 1170mm 175mm 3200.000000 944.000000 6112.000000 7696.000000 2256.000000 185.6kg 217.6kg £912.00
TBK021/022 785mm 17 1241mm 175mm 3400.000000 1003.000000 6494.000000 8177.000000 2397.000000 197.2kg 231.2kg £969.00
TBK021/022 785mm 18 1312mm 175mm 3600.000000 1062.000000 6876.000000 8658.000000 2538.000000 208.8kg 244.8kg £1026.00
TBK021/022 785mm 19 1383mm 175mm 3800.000000 1121.000000 7258.000000 9139.000000 2679.000000 220.4kg 258.4kg £1083.00
TBK021/022 785mm 20 1454mm 175mm 4000.000000 1180.000000 7640.000000 9620.000000 2820.000000 232.0kg 272.0kg £1140.00
TBK021/022 785mm 21 1525mm 175mm 4200.000000 1239.000000 8022.000000 10101.000000 2961.000000 243.6kg 285.6kg £1197.00
TBK021/022 785mm 22 1596mm 175mm 4400.000000 1298.000000 8404.000000 10582.000000 3102.000000 255.2kg 299.2kg £1254.00
TBK021/022 785mm 23 1667mm 175mm 4600.000000 1357.000000 8786.000000 11063.000000 3243.000000 266.8kg 312.8kg £1311.00
TBK021/022 785mm 24 1738mm 175mm 4800.000000 1416.000000 9168.000000 11544.000000 3384.000000 278.4kg 326.4kg £1368.00
TBK021/022 785mm 25 1809mm 175mm 5000.000000 1475.000000 9550.000000 12025.000000 3525.000000 290.0kg 340.0kg £1425.00
TBK021/022 785mm 26 1880mm 175mm 5200.000000 1534.000000 9932.000000 12506.000000 3666.000000 301.6kg 353.6kg £1482.00
TBK021/022 785mm 27 1951mm 175mm 5400.000000 1593.000000 10314.000000 12987.000000 3807.000000 313.2kg 367.2kg £1539.00
TBK021/022 785mm 28 2022mm 175mm 5600.000000 1652.000000 10696.000000 13468.000000 3948.000000 324.8kg 380.8kg £1596.00
TBK021/022 785mm 29 2093mm 175mm 5800.000000 1711.000000 11078.000000 13949.000000 4089.000000 336.4kg 394.4kg £1653.00
TBK021/022 785mm 30 2164mm 175mm 6000.000000 1770.000000 11460.000000 14430.000000 4230.000000 348.0kg 408.0kg £1710.00
