Chelsea radiator in hand burnished finish

Chelsea radiator in hand burnished finish

Chelsea Cast Iron Radiator

Dating from circa 1900, this elaborately decorated cast iron radiator design was originally commissioned for the Chelsea Barracks Officers' Mess.

With its pronounced detailing, this radiator looks outstanding in polished or highlighted finish.

An alternative product you may also be interested in would be our Churchill Cast Iron Radiator.

All our cast iron radiators come with a LIFETIME GUARANTEE.

Available in 1 heights: 675mm

From £79.50 per section.

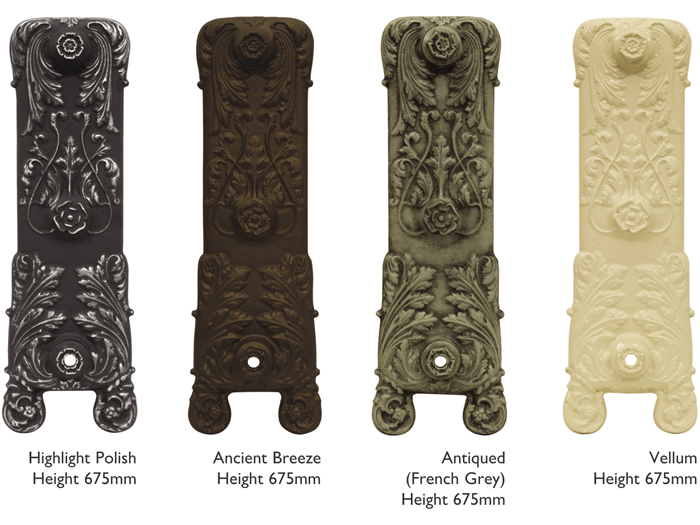

Chelsea cast iron radiator sections in highlight polish and painted finishes

Chelsea cast iron radiator sections in highlight polish and painted finishes

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • 2-14-end.jpg Antiqued French Grey
  • 2-5-end.jpg Hand Burnished
  • 2-15-end.jpg Highlight Polish
  • 2-5-end.jpg Satin Polished

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • 2-1-end.jpg Ancient Breeze
  • 2-2-end.jpg Buttermilk
  • 2-3-end.jpg Foundry Grey
  • 2-4-end.jpg French Grey
  • 2-6-end.jpg Graphite Grey
  • 2-7-end.jpg Hammered Bronze
  • 2-8-end.jpg Hammered Gold
  • 2-9-end.jpg Parchment White
  • 2-10-end.jpg Primer
  • 2-11-end.jpg Satin Black
  • 2-12-end.jpg Vellum
  • 2-13-end.jpg Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

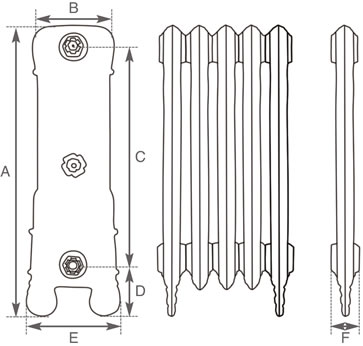

chelsea radiator measurements

* per cast iron radiator section.

675 195 500 125 220 66 338 99 13.3kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Chelsea Radiator Range Information Table

Model No. Height Width
(inc. bushes)
(from wall)
(ΔT 50°)
Price From
(inc. VAT in Primer)
Build Radiator
LD063/064 675mm 232mm 220mm 1014 £238.50
LD063/064 675mm 298mm 220mm 1352 £318.00
LD063/064 675mm 364mm 220mm 1690 £397.50
LD063/064 675mm 430mm 220mm 2028 £477.00
LD063/064 675mm 496mm 220mm 2366 £556.50
LD063/064 675mm 562mm 220mm 2704 £636.00
LD063/064 675mm 628mm 220mm 3042 £715.50
LD063/064 675mm 694mm 220mm 3380 £795.00
LD063/064 675mm 760mm 220mm 3718 £874.50
LD063/064 675mm 826mm 220mm 4056 £954.00
LD063/064 675mm 892mm 220mm 4394 £1033.50
LD063/064 675mm 958mm 220mm 4732 £1113.00
LD063/064 675mm 1024mm 220mm 5070 £1192.50
LD063/064 675mm 1090mm 220mm 5408 £1272.00
LD063/064 675mm 1156mm 220mm 5746 £1351.50
LD063/064 675mm 1222mm 220mm 6084 £1431.00
LD063/064 675mm 1288mm 220mm 6422 £1510.50
LD063/064 675mm 1354mm 220mm 6760 £1590.00
LD063/064 675mm 1420mm 220mm 7098 £1669.50
LD063/064 675mm 1486mm 220mm 7436 £1749.00
LD063/064 675mm 1552mm 220mm 7774 £1828.50
LD063/064 675mm 1618mm 220mm 8112 £1908.00
LD063/064 675mm 1684mm 220mm 8450 £1987.50
LD063/064 675mm 1750mm 220mm 8788 £2067.00
LD063/064 675mm 1816mm 220mm 9126 £2146.50
LD063/064 675mm 1882mm 220mm 9464 £2226.00
LD063/064 675mm 1948mm 220mm 9802 £2305.50
LD063/064 675mm 2014mm 220mm 10140 £2385.00
