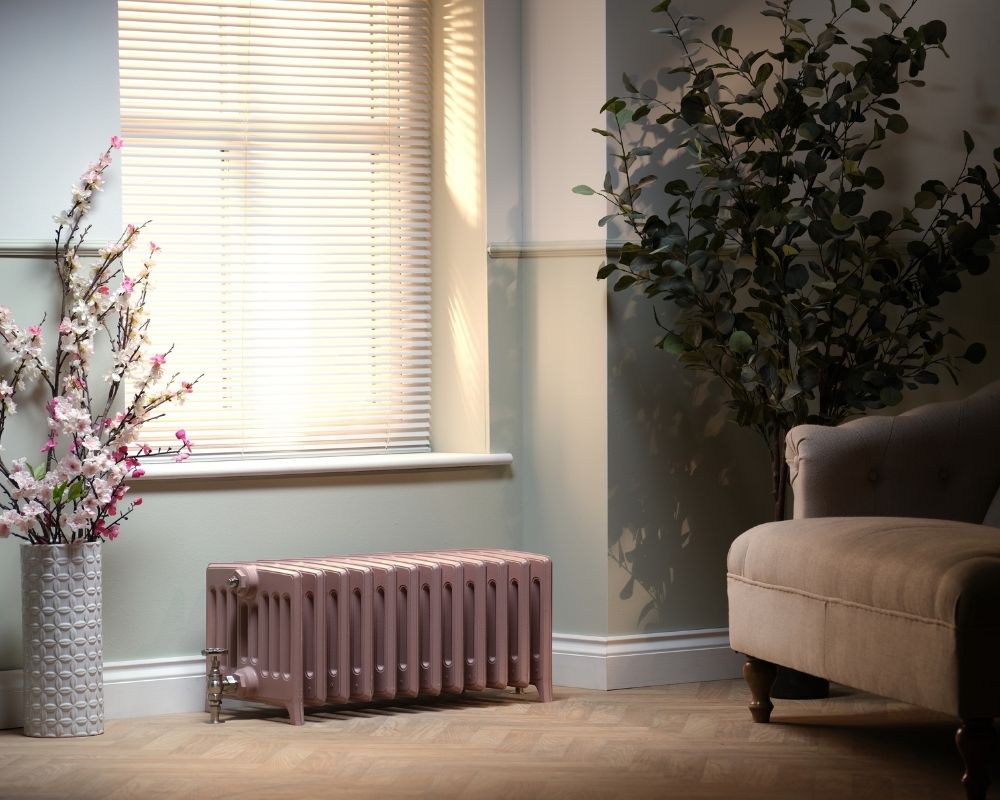

Rathmell 9 Column Cast Iron Radiator F&B Sulking Room Pink

Rathmell 9 Column Cast Iron Radiator F&B Sulking Room Pink

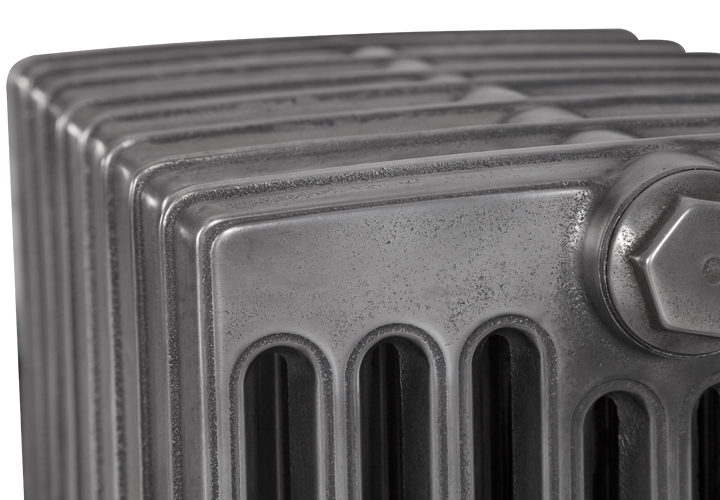

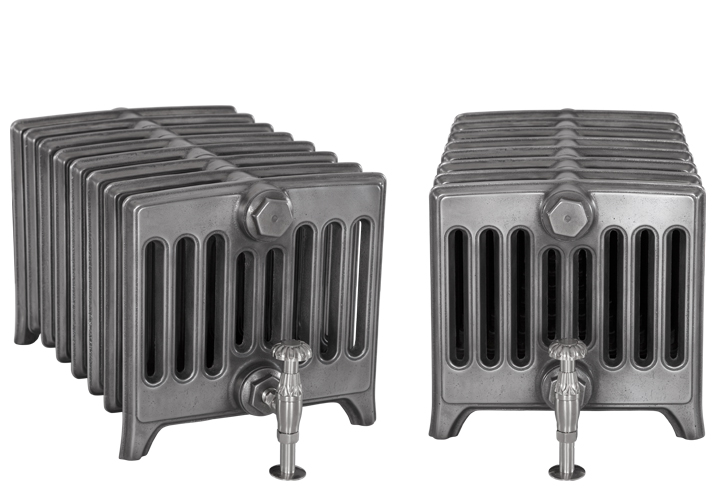

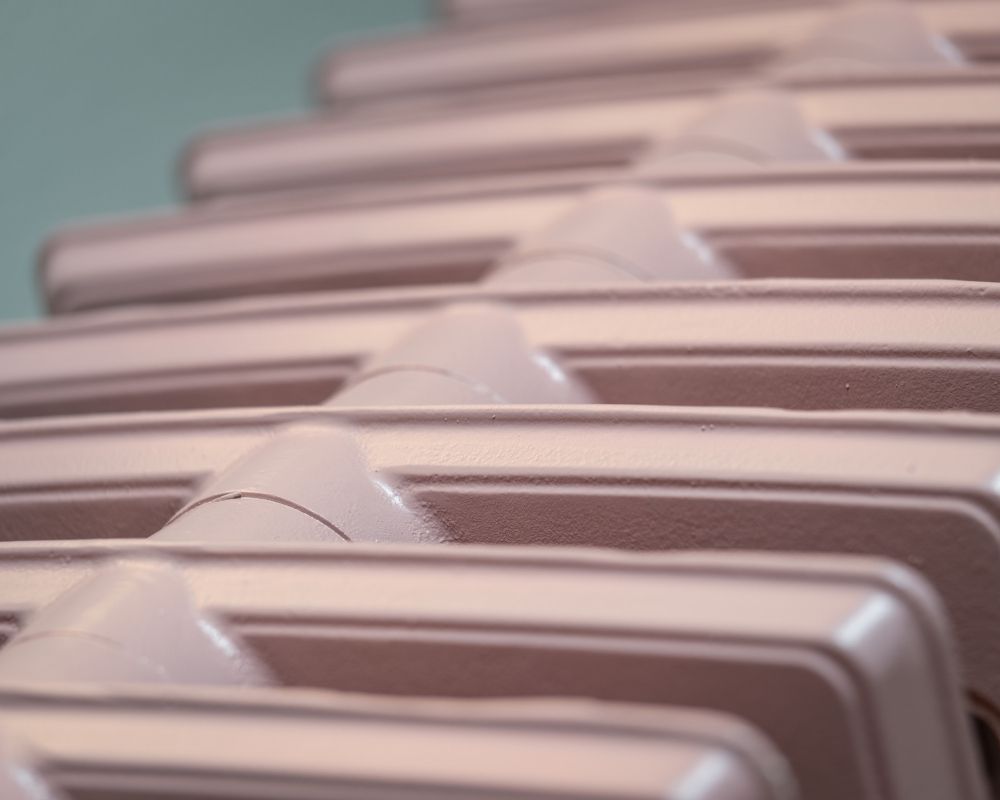

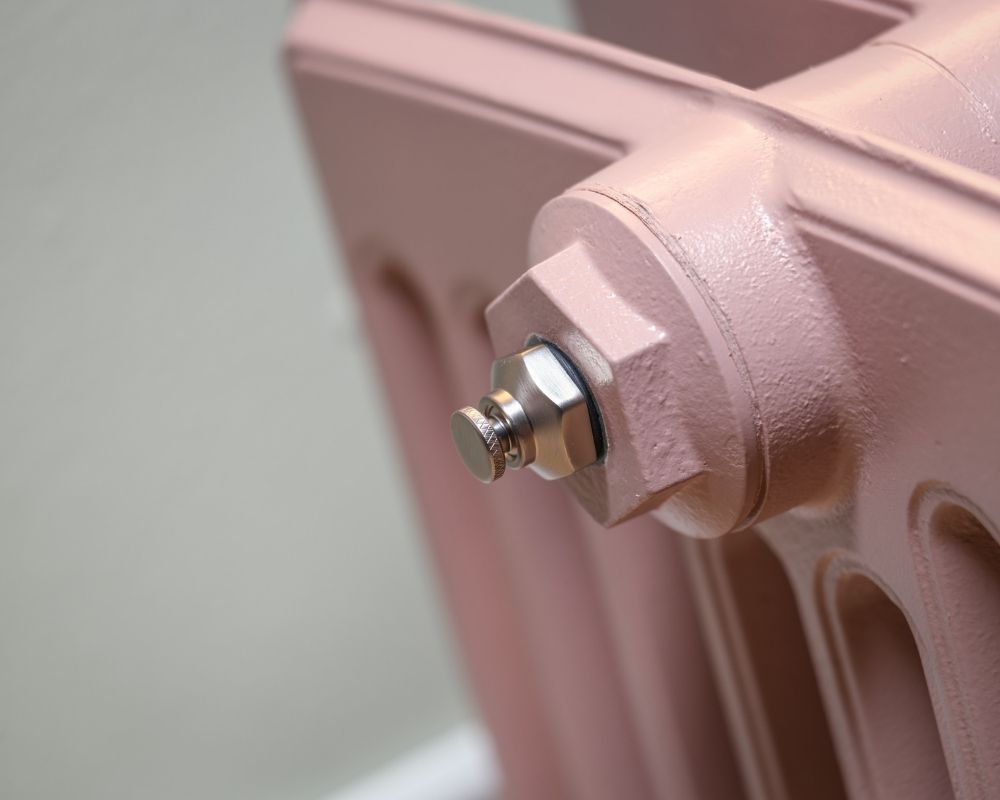

Rathmell 9 Column Cast Iron Radiator F&B Sulking Room Pink Rathmell 9 Column Cast Iron Radiator F&B Sulking Room Pink Detail Rathmell 9 Column Cast Iron Radiator Sections Rathmell 9 Column Cast Iron Radiators In Various Finishes

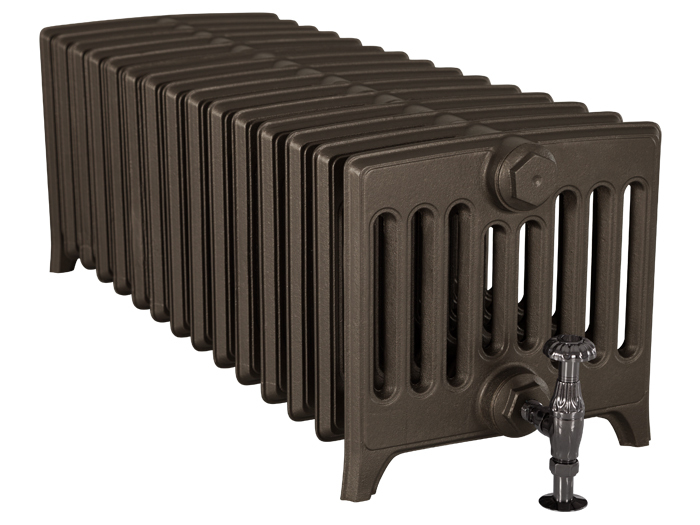

Rathmell 9 Column Cast Iron Radiator

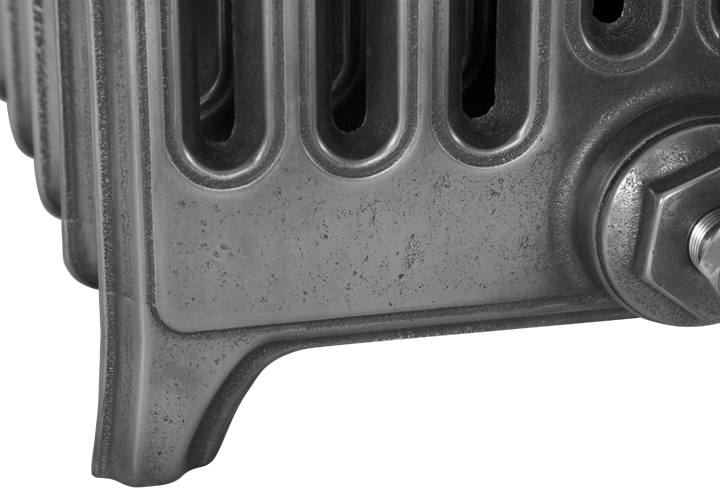

This stylish 9 column cast iron radiator design, features a curved top and crisp lines. The Rathmell cast iron radiator feet are seamlessly incorporated and delicately shaped with an inner arch. These combine to give this radiator a more contemporary feel than the traditional 9 column Victorian model.

Available in 1 heights: 340mm

From £160.50 (£53.50 per section)

United Kingdom Flag Hand-built & finished in the UK from 10 working days
  • Lifetime Guarantee
  • Over 10,000 Colour Options
  • FREE UK Mainland Delivery*
  • Specialist Finishes Available
  • Select 15mm Or 22mm Inlet

*On orders over £300.00

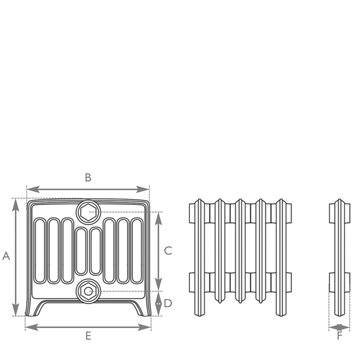

Rathmell 9 Column Line Drawing

All measurements are for guidance only. Please allow for +/- 3% tolerance. Please do not install pipework until your radiators are onsite.

* per cast iron radiator section.
340 340 215 77 350 62 348.000000 102.000000 180.000000 53.000000 6.500000kg

To calculate the British Thermal Units (BTU's) required to heat your room please use our Heat Output (BTU) Calculator

Our radiators are available in any desired colour or finish. Our specialised artisan finishes are as follows:

  • Rathmell 9 Column 340Mm Hand Burnished End Hand Burnished
  • Rathmell 9 Column 340Mm Hand Burnished End Satin Polished

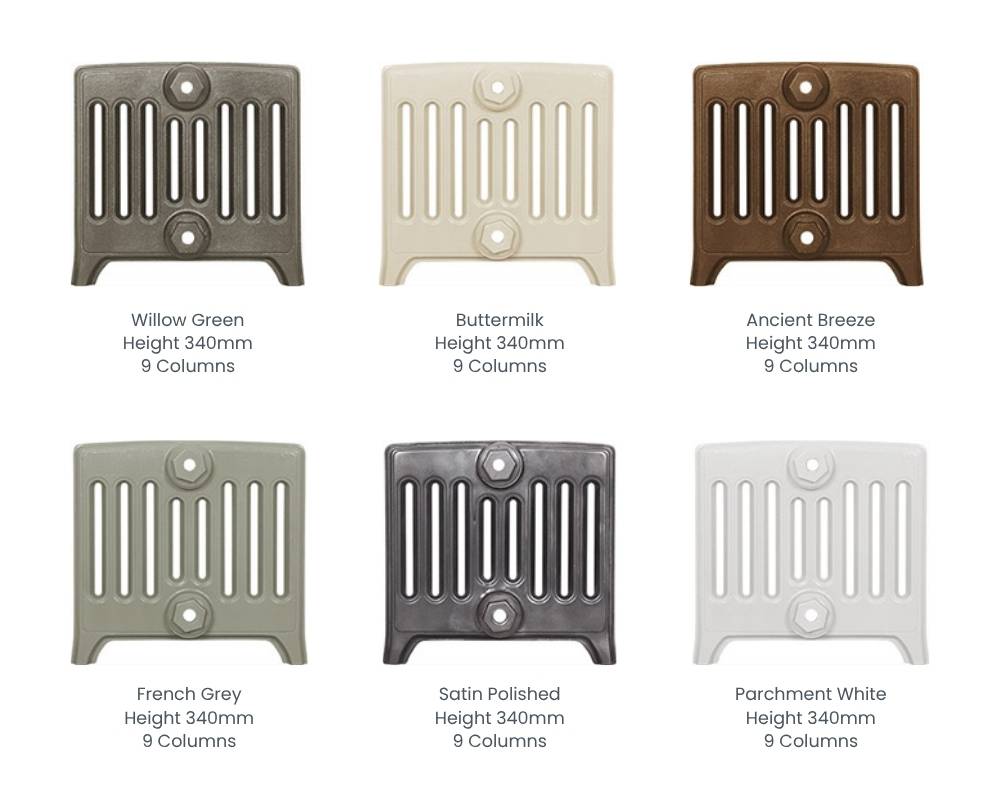

Other specialised Trads colours and finishes are shown below. Swatches are available for these 12 colours

  • Rathmell 9 Column 340Mm Ancient Breeze End Ancient Breeze
  • Rathmell 9 Column 340Mm Buttermilk End Buttermilk
  • Rathmell 9 Column 340Mm Foundry Grey End Foundry Grey
  • Rathmell 9 Column 340Mm French Grey End French Grey
  • Rathmell 9 Column 340Mm Graphite Grey End Graphite Grey
  • Rathmell 9 Column 340Mm Hammered Bronze End Hammered Bronze
  • Rathmell 9 Column 340Mm Hammered Gold End Hammered Gold
  • Rathmell 9 Column 340Mm Parchment White End Parchment White
  • Rathmell 9 Column 340Mm Primer End Primer
  • Rathmell 9 Column 340Mm Satin Black End Satin Black
  • Rathmell 9 Column 340Mm Vellum End Vellum
  • Rathmell 9 Column 340Mm Willow Green End Willow Green

Any other colour is available, for example all Farrow & Ball shades and all other recognised brands.

With our onsite paint and spray shop facilities, we can finish any radiator from a choice of over 10,000 colours and offer an expert colour matching service to attain even greater levels of customisation.

Please note that colours can vary from printed brochures and those shown on websites, we recommend a free colour swatch prior to purchase. Please contact us with your swatch request.

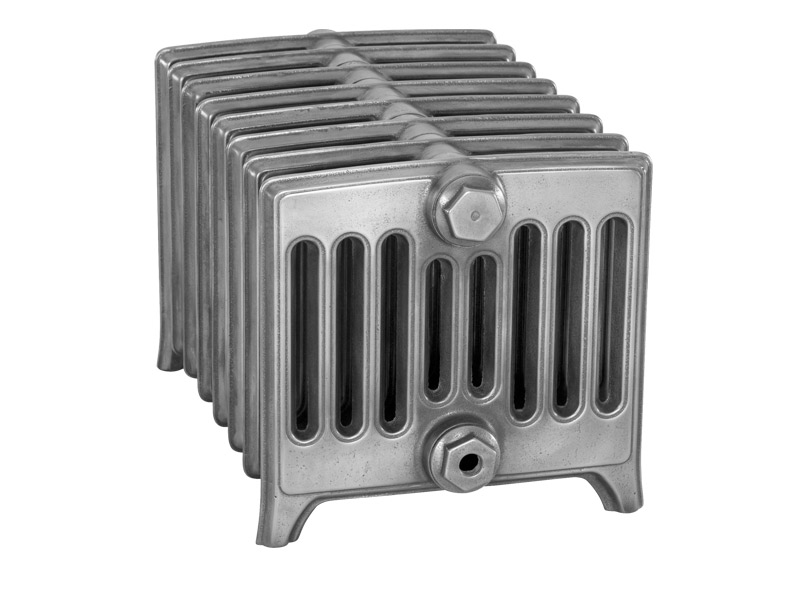

Rathmell 9 Column Cast Iron Radiator 800 01
Model No. Height Sections Width
/Length
(inc. bushes)		 Depth
(from wall)		 BTU's
(ΔT 30°)		 Watts
(ΔT 30°)		 BTU's
(ΔT 50°)		 BTU's
(ΔT 60°)		 Watts
(ΔT 60°)		 Empty Weight Filled Weight Price From
(in Primer)		 Buy Radiator
TBK070/071 340mm 3 220mm 350mm 540.000000 159.000000 1044.000000 1320.000000 387.000000 19.5kg 22.8kg £160.50
TBK070/071 340mm 4 282mm 350mm 720.000000 212.000000 1392.000000 1760.000000 516.000000 26.0kg 30.4kg £214.00
TBK070/071 340mm 5 344mm 350mm 900.000000 265.000000 1740.000000 2200.000000 645.000000 32.5kg 38.0kg £267.50
TBK070/071 340mm 6 406mm 350mm 1080.000000 318.000000 2088.000000 2640.000000 774.000000 39.0kg 45.6kg £321.00
TBK070/071 340mm 7 468mm 350mm 1260.000000 371.000000 2436.000000 3080.000000 903.000000 45.5kg 53.2kg £374.50
TBK070/071 340mm 8 530mm 350mm 1440.000000 424.000000 2784.000000 3520.000000 1032.000000 52.0kg 60.8kg £428.00
TBK070/071 340mm 9 592mm 350mm 1620.000000 477.000000 3132.000000 3960.000000 1161.000000 58.5kg 68.4kg £481.50
TBK070/071 340mm 10 654mm 350mm 1800.000000 530.000000 3480.000000 4400.000000 1290.000000 65.0kg 76.0kg £535.00
TBK070/071 340mm 11 716mm 350mm 1980.000000 583.000000 3828.000000 4840.000000 1419.000000 71.5kg 83.6kg £588.50
TBK070/071 340mm 12 778mm 350mm 2160.000000 636.000000 4176.000000 5280.000000 1548.000000 78.0kg 91.2kg £642.00
TBK070/071 340mm 13 840mm 350mm 2340.000000 689.000000 4524.000000 5720.000000 1677.000000 84.5kg 98.8kg £695.50
TBK070/071 340mm 14 902mm 350mm 2520.000000 742.000000 4872.000000 6160.000000 1806.000000 91.0kg 106.4kg £749.00
TBK070/071 340mm 15 964mm 350mm 2700.000000 795.000000 5220.000000 6600.000000 1935.000000 97.5kg 114.0kg £802.50
TBK070/071 340mm 16 1026mm 350mm 2880.000000 848.000000 5568.000000 7040.000000 2064.000000 104.0kg 121.6kg £856.00
TBK070/071 340mm 17 1088mm 350mm 3060.000000 901.000000 5916.000000 7480.000000 2193.000000 110.5kg 129.2kg £909.50
TBK070/071 340mm 18 1150mm 350mm 3240.000000 954.000000 6264.000000 7920.000000 2322.000000 117.0kg 136.8kg £963.00
TBK070/071 340mm 19 1212mm 350mm 3420.000000 1007.000000 6612.000000 8360.000000 2451.000000 123.5kg 144.4kg £1016.50
TBK070/071 340mm 20 1274mm 350mm 3600.000000 1060.000000 6960.000000 8800.000000 2580.000000 130.0kg 152.0kg £1070.00
TBK070/071 340mm 21 1336mm 350mm 3780.000000 1113.000000 7308.000000 9240.000000 2709.000000 136.5kg 159.6kg £1123.50
TBK070/071 340mm 22 1398mm 350mm 3960.000000 1166.000000 7656.000000 9680.000000 2838.000000 143.0kg 167.2kg £1177.00
TBK070/071 340mm 23 1460mm 350mm 4140.000000 1219.000000 8004.000000 10120.000000 2967.000000 149.5kg 174.8kg £1230.50
TBK070/071 340mm 24 1522mm 350mm 4320.000000 1272.000000 8352.000000 10560.000000 3096.000000 156.0kg 182.4kg £1284.00
TBK070/071 340mm 25 1584mm 350mm 4500.000000 1325.000000 8700.000000 11000.000000 3225.000000 162.5kg 190.0kg £1337.50
TBK070/071 340mm 26 1646mm 350mm 4680.000000 1378.000000 9048.000000 11440.000000 3354.000000 169.0kg 197.6kg £1391.00
TBK070/071 340mm 27 1708mm 350mm 4860.000000 1431.000000 9396.000000 11880.000000 3483.000000 175.5kg 205.2kg £1444.50
TBK070/071 340mm 28 1770mm 350mm 5040.000000 1484.000000 9744.000000 12320.000000 3612.000000 182.0kg 212.8kg £1498.00
TBK070/071 340mm 29 1832mm 350mm 5220.000000 1537.000000 10092.000000 12760.000000 3741.000000 188.5kg 220.4kg £1551.50
TBK070/071 340mm 30 1894mm 350mm 5400.000000 1590.000000 10440.000000 13200.000000 3870.000000 195.0kg 228.0kg £1605.00
